Installation and operating
manual
CDi-16B
Please read the following instructions carefully before installing electronic drain unit into
service. Trouble free and safe operating of the unit can only be guaranteed if
recommendations and conditions stated in this manual are respected.
Omega Air User Manual Condensate Drain Electronic CDI v1.10 eng

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDi-16B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OMEGA AIR CDi-16B

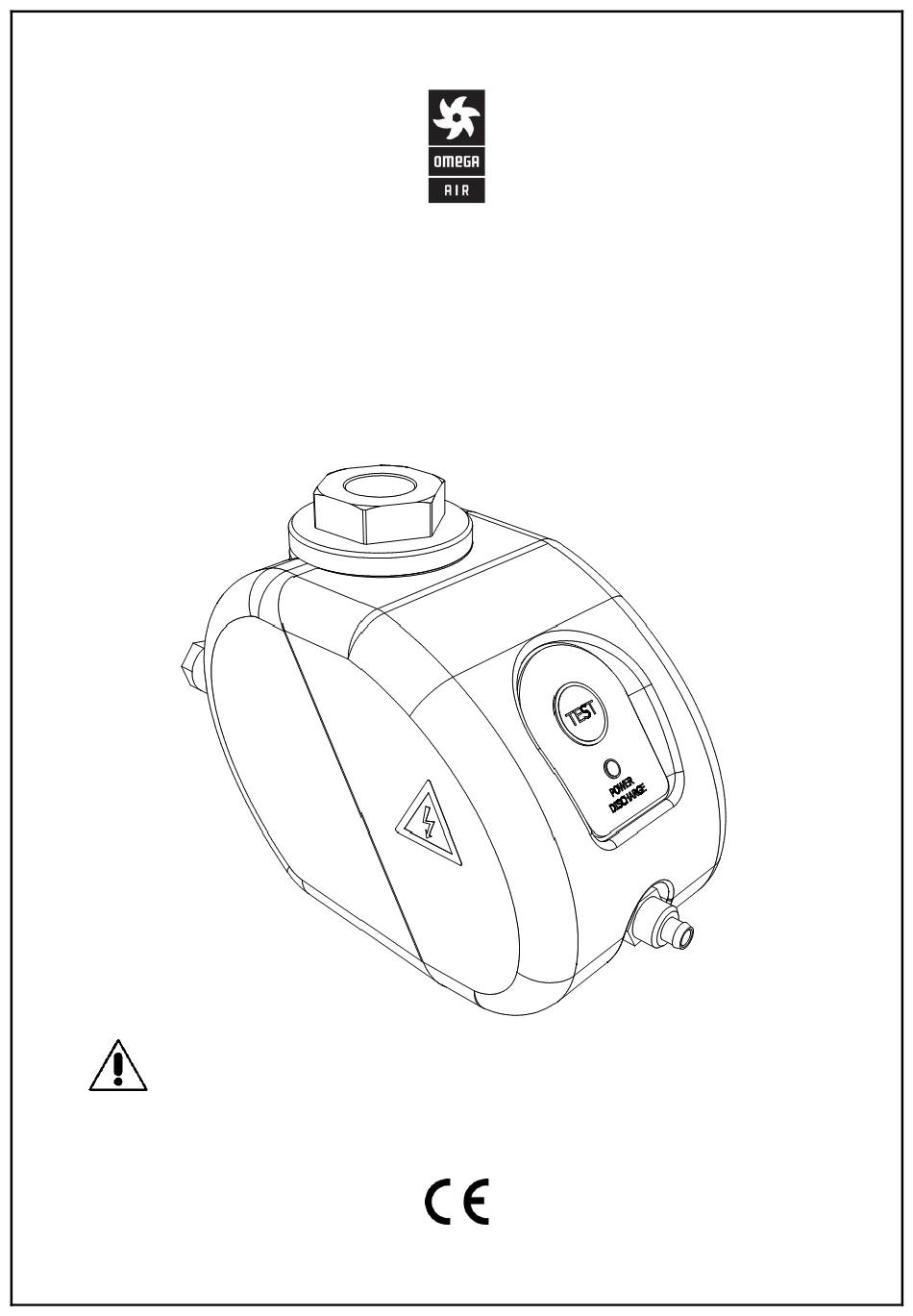

  • Page 1 Please read the following instructions carefully before installing electronic drain unit into service. Trouble free and safe operating of the unit can only be guaranteed if recommendations and conditions stated in this manual are respected. Omega Air User Manual Condensate Drain Electronic CDI v1.10 eng...
  • Page 2 CDi-16B - Installation and operating manual Components Part Part Part Part Housing Spring base Sensor O-ring 12,0x2,0 Cover O-ring 17x2,0 Cable leader O-ring 10,0x2,0 Valve seat Valve inlet connector Connection 1/8”- 8/6 O-ring 21,95x1,78 Damper Screw plug 1/2” Screw PT KA 35x16...
  • Page 3: Technical Data

    CDi-16B - Installation and operating manual Technical data 115 VAC 115 V; +5, -10% Voltage 230 VAC 230 V; +5, -10% 115 VAC 24 VA Power 230 VAC 24 VA Frequency 50 – 60 Hz Operation pressure range 0 – 16 bar / 0 – 232 psi...
  • Page 4: Safety Instructions

    CDi-16B - Installation and operating manual Safety instructions  Depressurize the system before carrying out any work on the piping or CDi-16B.  Installation and maintenance work may only be carried out when the device is not under pressure.  Installation and maintenance work may only be carried out by trained and experienced stuff.
  • Page 5 CDi-16B - Installation and operating manual Operating Condensate flows through inlet connection (1) and accumulates in the reservoir (2). Sensor (3) is measuring condensate level. When reservoir (2) is detected full, sensor (3) sends signal to electronic board. Electromagnetic valve (4) is than opened to discharge accumulated condensate through outlet connection (5).
  • Page 6: Installation

    CDi-16B - Installation and operating manual Installation  Inlet pipe (1) size at least ½” (inner diameter > 13mm).  Collecting condensate line (3) size at least ¾ “.  At least 1% inlet pipe slope recommended.  Install ball valves (2) only.
  • Page 7 CDi-16B - Installation and operating manual Trapped air prevents the condensate being purged from drain (5). During installation ensure that no water pockets are formed in the piping (6). When drainage is to take place directly from a pipeline it is recommended to arrange the piping so that air flow is diverted (8).
  • Page 8: Electrical Wiring

    CDi-16B - Installation and operating manual In case there are problems with inflow, it is necessary to install a venting line (12). In this case back connection is used as inlet and upper connection is used as air ventilation. Venting line must never be installed as it is on pictures 9, 10 and 11.
  • Page 9 CDi-16B - Installation and operating manual Functions LED indicator / TEST button LED indicator: LED indicates device condition. 1. Green ON: Power on, reservoir empty, waiting condensate to accumulate 2. Green FLASHES: Device is discharging condensate 3. Red ON: Alarm mode TEST button: By pressing TEST button valve opens.
  • Page 10: Operating Modes

    CDi-16B - Installation and operating manual Operating modes NORMAL When sensor detects condensate the valve opens up to one second to discharge. Maximum number of discharges in normal mode is up to 20. OVERLOAD If sensor detects condensed water continuously for 100 seconds, drain enters overload mode.
  • Page 11: Maintenance

    Before beginning maintenance work take the drain out of operation, switch off the power supply and depressurize the unit. Service kits Based on type of CDi-16B drain following servis kits can be used:  SERVIS KIT CDI 16-B 230V  SERVIS KIT CDI 16-B 115V...
  • Page 12: Troubleshooting

    CDi-16B - Installation and operating manual Trouble shooting Problem Possible cause Solution   System initialisation is not After connection wait 2 sec for system initialisation  performed Check for voltage in circuit   LED lights on Power cut Check the cable and power connection ...
