Installation and operating
manual
AOK 20SS
Please read the following instructions carefully before installing the product. Trouble free and
safe operating of the product can only be guaranteed if recommendations and conditions stated
in this manual are respected.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OMEGA AIR AOK 20SS
Summary of Contents for OMEGA AIR AOK 20SS

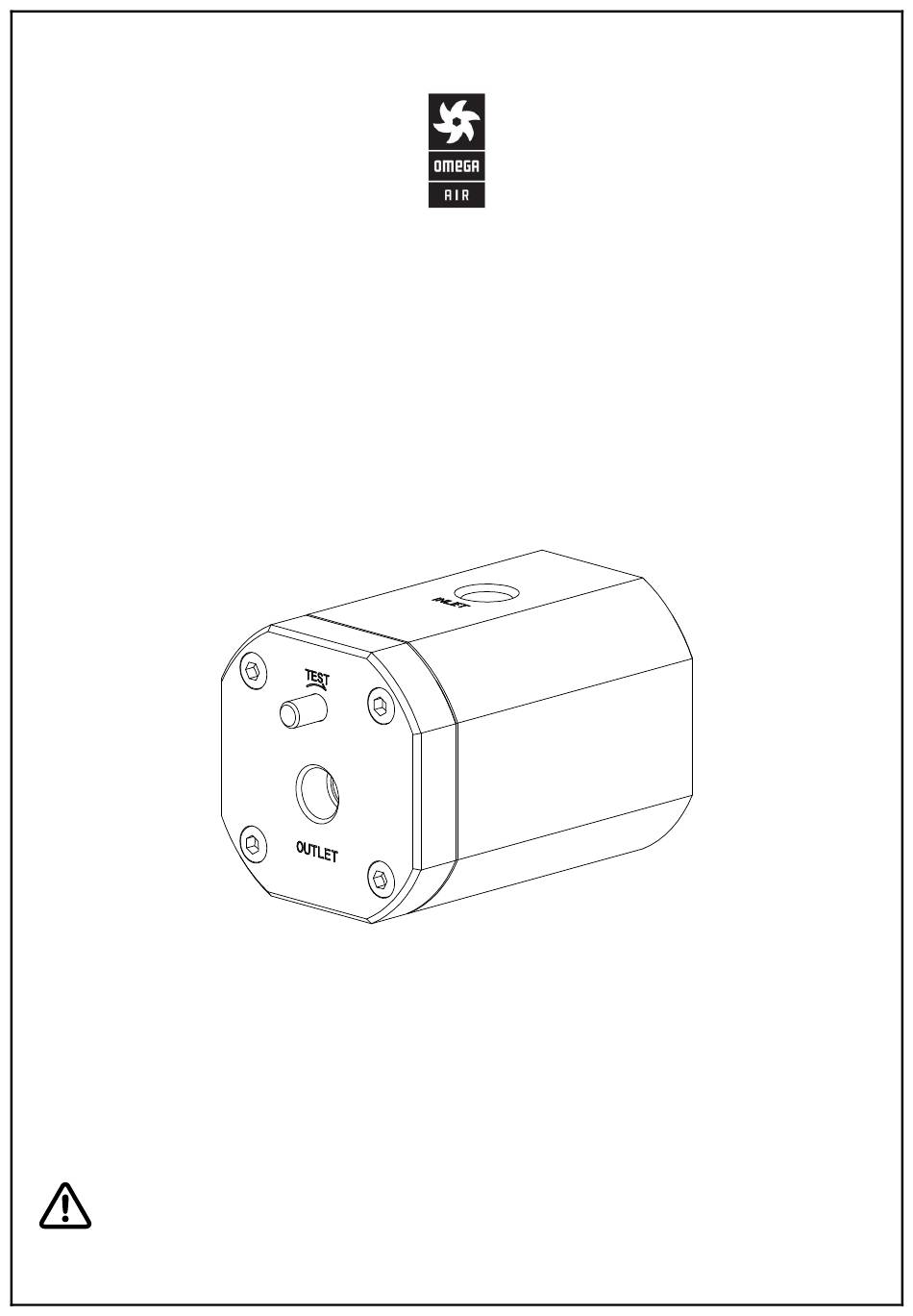

- Page 1 Installation and operating manual AOK 20SS Please read the following instructions carefully before installing the product. Trouble free and safe operating of the product can only be guaranteed if recommendations and conditions stated in this manual are respected.
- Page 2 Components Bill of materials 4x M8 screws 4x Washer 1x Cover 2x O-ring sealing 1x Float holder 1x Nozzle 1x Flat seal 1x Housing 1x Plug 10 1x Test button 11 1x O-ring sealing 12 1x Lever holder 13 1x Circlip external 14 1x M4 screws 15 1x Lever 16 1x Float...
- Page 3 AOK 20SS - Installation and operating manual Technical data Operation pressure range 0 – 20 bar / 0 – 290 psi Minimum reccomended operating pressure 1,5bar (g) 21,8 psi 167 l/h Drain capacity (7 bar / 101 psi) 0,1 scfm...
- Page 4 Use the device for the appropriate purpose only. Appropriate use AOK 20SS series condensate drain is intended exclusively for the following purpose: Draining condensate from compressed air system (air compressors, air receivers/pressure vessels, air dryers and air filters).
- Page 5 This operation prevents air loss. On the front side of the AOK 20SS is a TEST button, which if rotated in a clockwise direction they lifts the float, which opens the outlet and drains the condensate. This can be done at any time.
- Page 6 Before connecting the drain, blow compressed air through the piping in order to thoroughly clean out any impurities within it. Install the AOK 20SS at a level below the receiver, if not the receiver will fill up with condensate.
- Page 7 AOK 20SS - Installation and operating manual Maintenance Warning Before maintenance depressurize the device and keep to the safety rules when working with pressure equipment. Weekly: Rotate the "Test" button and manually drain the accumulated condensate until air begins to blow from the drain. If a significant amount of water (more than 0.5 liters) exits the valve then the drain must be thoroughly cleaned.
- Page 8 OMEGA AIR d.o.o. Ljubljana Cesta Dolomitskega odreda 10 SI-1000 Ljubljana, Slovenia Tel.: +386 (0)1 200 68 00 Fax.: +386 (0)1 200 68 50 E-mail: info@omega-air.si www.omega-air.si...
