Owner's Manual and Instructions
Congratulations!
You have purchased the finest agricultural building heater available.
Your new PSI heater incorporates the benefits from the most experienced
manufacturer of heating products using state-of-the-art technology.
We, at PSI, thank you for your confidence in our products and
welcome any suggestions or comments you may have......call us, at
800-562-2966.
W6636 East Avenue North, Onalaska, WI USA

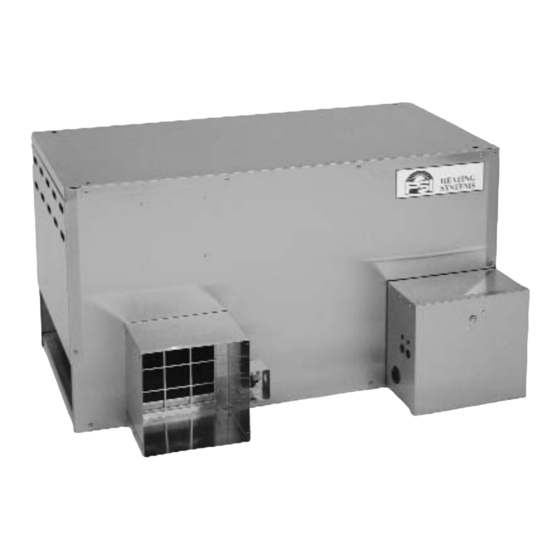

Agricultural Animal Confinement Building Heaters
IGNITION OUTPUT
SERIES
1450
Surface
Ignition
(608) 781-8500
(800) 562-2966
TYPE
(BTUH)
Hot
40,000
60,000
150,000
225,000
Fax: (608) 783-6115
Available in
either L.P . Vapor
Withdrawal or
Natural Gas
Configurations.
Mail@PSIHeaters.com
F150-80776-A
