V
2.1
Head Office:
For Free Quote Australia-Wide:
8/81 Frenchs Forest Rd E
Call:1800 85 75 65
Frenchs Forest NSW 2086
Email:sales@coldbuster.com.au
INSTALL
Find Us Online:
Website:www.coldbuster.com.au
Facebook:@coldbusterfloorheating
Linkedln:@coldbusterfloorheating
Instagram:@coldbusterfloorheating

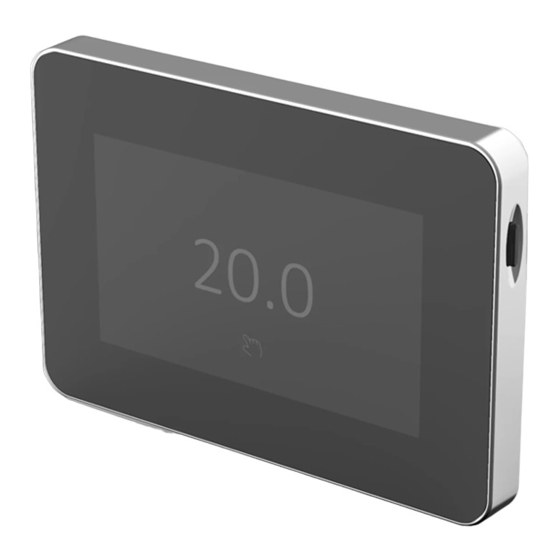

CB Smart2 Thermostat Instruction
Amazon Alexa Google Home
Easy touch Easy warm
Advertisement
Table of Contents
Related Manuals for COLDBUSTER FLOORHEATING CB Smart2
Summary of Contents for COLDBUSTER FLOORHEATING CB Smart2

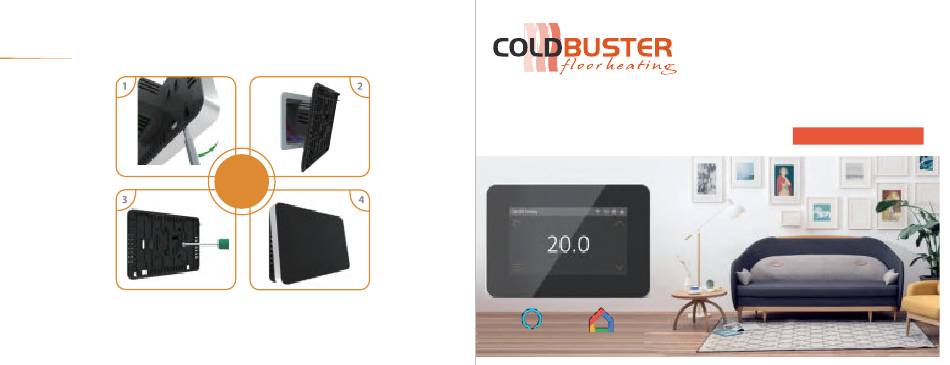

- Page 1 CB Smart2 Thermostat Instruction Easy touch Easy warm INSTALL Head Office: For Free Quote Australia-Wide: Find Us Online: 8/81 Frenchs Forest Rd E Call:1800 85 75 65 Website:www.coldbuster.com.au Facebook:@coldbusterfloorheating Frenchs Forest NSW 2086 Email:sales@coldbuster.com.au Linkedln:@coldbusterfloorheating Instagram:@coldbusterfloorheating Amazon Alexa Google Home...
- Page 2 Table of Contents Display symbols Dimensions APP for WiFi thermostat Installa�on & Wiring instruc�ons...
-
Page 3: Display Symbols
THERMOSTAT DESCRIPTION DISPLAY SYMBOLS The CB Smart2 is a smart thermostat used to control your Coldbuster electric floor hea�ng system. This is the ideal thermostat to keep your home or floor at comfortable temperature whilst minimizing energy use. Install the APP WiFi / Heat / Event / Floor Sensor on your smart phone to control your electric hea�ng system remotely... - Page 4 WIFI CONNECTION Step 5: Operate thermostat. If the WIFI icon flashes quickly, Step 4: click ‘Press to connect’. Click ‘WiFi thermostat’. Step 3: Step 6: Click ‘Add Device’ or ‘+’ at the top-right to add device. Enter your WiFi password and click ‘Confirm’.
-
Page 5: Function & User Operation
Press ‘Auto Mode’ to confirm and return to the detected FUNCTION & USER OPERATION temperature screen temperature. On/Off Manual mode: Press the bu�on on the right side of the thermostat to turn on/off. Thermostat will run with the set temperature indefinitely. Note: When an�-frozen func�on is ac�ve, the thermostat will maintain the Steps: an�-frozen temperature when power is off. - Page 6 1. Time Day and clock are set here. Unlock Steps: Steps: On the detected temperature screen, press any key then (in the bo�om right corner) Press ‘Time’ to enter day se�ng. will flash 3 �mes. Press the day you want to enter hour se�ng. Press and hold for 3 seconds to unlock.
- Page 7 17:00 22.0°C 22:00 19.0°C Temperature Tolerance 1°C 0.5°C/1°C/2°C/3°C 5. Advanced se�ng °C °C/°F Temperature Unit The CB Smart2 provides advanced se�ngs to suit various Floor Room/Floor/Both special situa�ons. These are normally set Schedule 5+1+1 5+1+1/7 during ini�al installa�on. Output Delay...
-
Page 8: Open Window
Name Default Ranges 7. Temperature Unit: Switch around °F and °C. ON/OFF 8: Sensor Selec�on Open Window ON/OFF Room sensor: Run by room sensor. 0W -- 4500W Power Set Floor sensor: Run by floor sensor. Both sensors: Energy Use Run by room sensor with floor limit mode. 9. -
Page 9: Installation And Wiring Instructions
INSTALLATION AND WIRING INSTRUCTIONS The resistance value of the floor sensor at the corresponding Temperature temperature point (Ω) 0-3950 1-3380 2-3700 3-3600 4-3740 0 °C 32800 26050 30286 34423 34720 10 °C 19733 17630 19055 22217 22328 25 °C 10000 10000 10000 12000... -
Page 10: Wiring Diagram
Wiring diagram NOTE: The CB Smart2 Thermostat should be mounted in a standard 86 type switch box. POWER FLOOR SENEOR S2 COM SENSOR POWER 85V-265V FLOOR 50/60Hz SENSOR MAX LOAD: 16A Fix the back sec�on to the switch box Re-install the front panel whilst with screw provided.
