Aiwa RM-P300 AEZS Service Manual

Hide thumbs Also See for RM-P300 AEZS:

Download this manual

SERVICE MANUAL

RADIO CASSETTE RECEIVER

HR, HA MODEL

• Design and specifications are subject to

change without notice.

This Service Manual is the "Revision Publishing" and replaces "Simple Manual"

RM-P300 AEZ(S), AHKJ(S), AHA(S), AHRJ(S)(S/M Code No. 09-003-340-6T2).

All manuals and user guides at all-guides.com

RM-P300

• BASIC TAPE MECHANISM : TN-9ZR-215

SPECIFICATIONS

EZ, HK MODEL

• Design and specifications are subject to

change without notice.

S/M Code No. 09-003-340-6R2

AEZ(S),AHKJ(S),

AHRJ(S),AHA(S)

Need help?

Do you have a question about the RM-P300 AEZS and is the answer not in the manual?

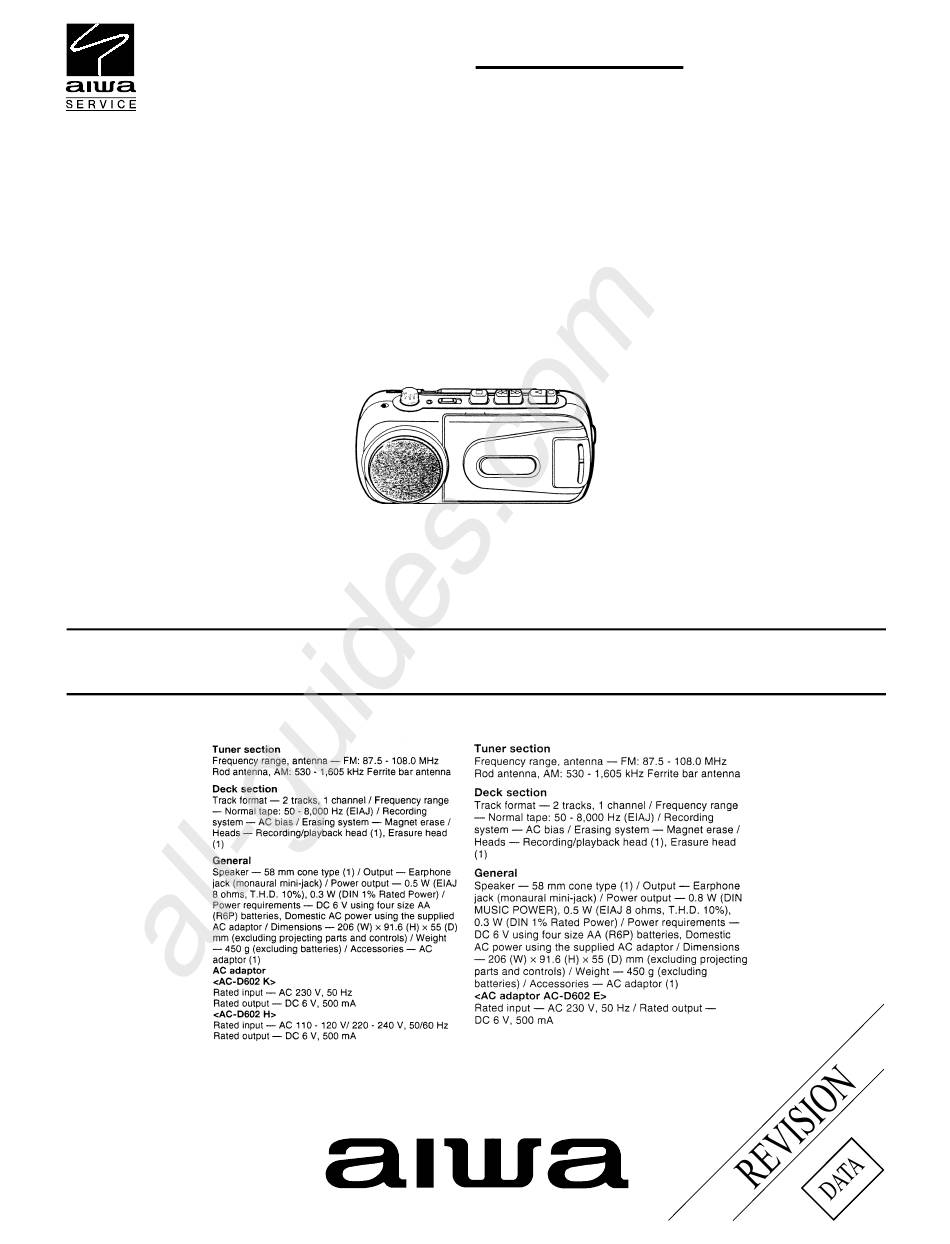

Page 1 All manuals and user guides at all-guides.com AEZ(S),AHKJ(S), AEZ(S),AHKJ(S), AEZ(S),AHKJ(S), RM-P300 RM-P300 AEZ(S),AHKJ(S), AEZ(S),AHKJ(S), RM-P300 RM-P300 RM-P300 AHRJ(S),AHA(S) AHRJ(S),AHA(S) AHRJ(S),AHA(S) AHRJ(S),AHA(S) AHRJ(S),AHA(S) SERVICE MANUAL RADIO CASSETTE RECEIVER • BASIC TAPE MECHANISM : TN-9ZR-215 SPECIFICATIONS HR, HA MODEL EZ, HK MODEL •...
Page 2 All manuals and user guides at all-guides.com ELECTRICAL MAIN PARTS LIST REF. NO PART NO. KANRI DESCRIPTION REF. NO PART NO. KANRI DESCRIPTION C232 87-A10-164-010 CAP,CER 100P-50 K SL C233 87-A10-168-010 CAP,CER 220P-50 K B 8Z-CM2-646-010 IC,TA2132 C301 87-A10-168-010 CAP,CER 220P-50 K B 88-CM2-608-010 IC,TA7628 HP C302...
Page 3 All manuals and user guides at all-guides.com BLOCK DIAGRAM VOLTAGE CHART...
Page 4 All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM MAIN C.B *J371 33ohm (HK) AM ANT, PVCA L202, PVCB L203, PVCC T202, PVCD R210 8.2k (HA/EZ) AM TRACKING FM TRACKING FM FREQ. AM FREQ. ADJ. ADJ. RANGE ADJ. RANGE ADJ. T203 Q205 FM IF ADJ.

Rm-p300 ahkjsRm-p300 ahrjsRm-p300 ahas
