Summary of Contents for ElectrIQ EQINDTOUCH60LG

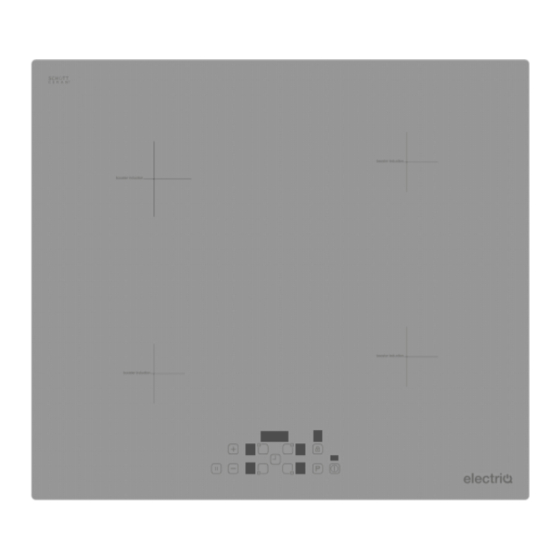

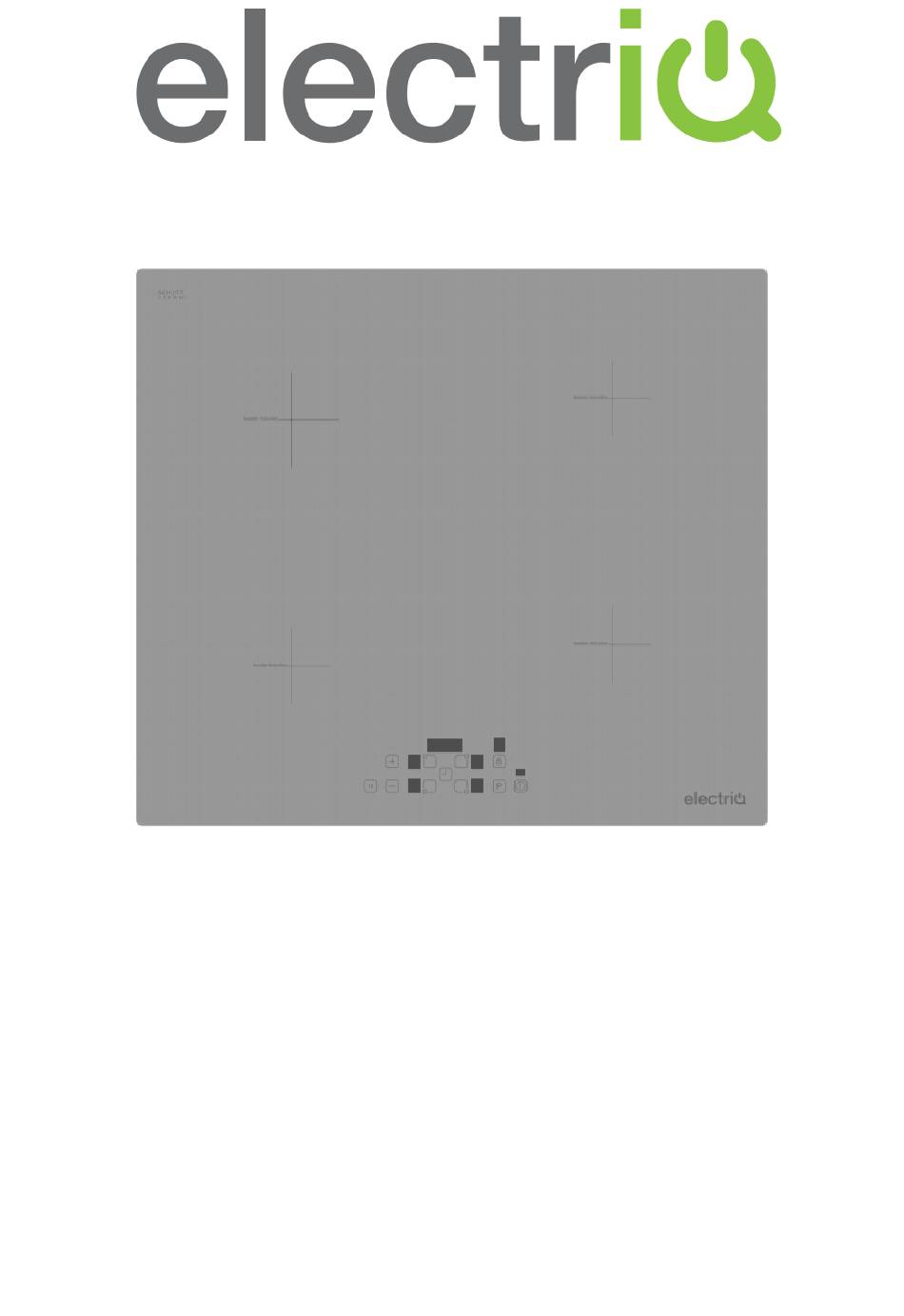

- Page 1 USER MANUAL TOUCH PANEL HOB WITH TIMER EQINDTOUCH60LG Thank you for choosing electriQ. Please read this user manual before using the Induction Hob and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of electricals...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS PRODUCT OVERVIEW INSTALLATION ELECTRICAL CONNECTION OPERATION TURNING THE APPLIANCE ON AND OFF USING THE COOKING ZONES SMART PAUSE SAFETY FUNCTION CHILD LOCK TIMER BOOST FUNCTION COOKING TIPS CARE AND CLEANING HINTS AND TIPS FAULT CODES TECHNICAL INFORMATION SUPPORT... -
Page 3: Safety Warnings
SAFETY WARNINGS Your safety is important to us. Please read this information before using your hob. ELECTRICAL SHOCK HAZARD • Do not cook on a broken or cracked hob. If the surface breaks or cracks, switch the appliance off immediately at the mains and contact a qualified technician. - Page 4 • Failure to use caution could result in injury or cuts. IMPORTANT SAFETY INSTRUCTIONS • Never leave the appliance unattended when in use. Boil over causes smoking and greasy spillovers that may ignite. • Never use your appliance as a work or storage surface. •...
- Page 5 order to avoid a hazard. • This appliance is designed for indoor domestic use only, and is not designed for commercial use. • Do not attempt to move the appliance while in use, or before sufficient time has elapsed for it to fully cool. •...
-
Page 6: Product Overview
PRODUCT OVERVIEW CONTROL PANEL 1. Heat/Timer increase 7. Child lock indicator 2. Heat display 8. Smart pause 3. Heat selection 9. Heat/Timer decrease 4. Timer display 10. Timer selection 11. Boost 5. Timer function/ cooking zone indicators 6. Child lock 12. -
Page 7: Installation
INSTALLATION • After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorized service person or qualified technician immediately. • Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. - Page 8 Your hob is supplied with an installation kit including adhesive sealing material, fixing brackets and screws. Cut the aperture dimensions as indicated in the figure. Locate the aperture on the worktop so that, after the hob is installed, the following requirements are followed.
-
Page 9: Electrical Connection
Apply the supplied one-sided self-adhesive sealing tape all the way around the lower edge of the cooktop. Do not stretch it. Screw the 4 worktop mounting brackets in to the side walls of product. Insert the appliance into the aperture. ELECTRICAL CONNECTION WARNING: THE APPLIANCE MUST BE EARTHED. - Page 10 • During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified person. • Do not use adaptors, multiple sockets and/or extension leads. •...
-
Page 11: Operation
OPERATION SETTINGS DESCRIPTION Element off Delicate warming Gentle simmering Reheat and rapid simmering Boiling sauté and searing Maximum heat Boost function Upon start up all displays are illuminated. After this, the hob is in stand-by mode and ready for operation. TURNING THE APPLIANCE ON/OFF •... -
Page 12: Smart Pause
• If the cooking zone is hot, “H” will be displayed instead of “0”. To switch all the cooking zones off at once, press the power button. • After switching off the cooking zone, the respective display will show “H” until the corresponding cooking zone temperature is at a safe level. -
Page 13: Child Lock
CHILD LOCK • After switching on the appliance, the child lock function can be activated. To activate the child lock, simultaneously press the increase heat setting button and decrease heat setting button and then press the increase heat setting again. An “L” indicating LOCKED will appear on all heater displays and the controls cannot be used. - Page 14 COOKING ZONE TIMER (1 - 99 min.) • When the hob is switched on, an independent timer can be programmed for every cooking zone. Select a cooking zone, then select the temperature setting and finally activate the timer setting button. The timer can be programmed to switch off a cooking zone. Four LEDs are arranged around the timer that indicate which cooking zone the timer has been set for.
-
Page 15: Boost Function
BOOST FUNCTION • To use this function, select a cooking zone and set the desired cooking level, then press the “P” (Boost) button. The Boost function can only be activated if it is applicable with the cooking zone selected. If the Boost Function is active, a “P” is shown on the corresponding display. -
Page 16: Cooking Tips
COOKING TIPS • When food comes to the boil, reduce the power setting. • Using a lid will reduce cooking times and save energy by retaining the heat. • Minimize the amount of liquid or fat to reduce cooking times. •... -
Page 17: Care And Cleaning
CARE AND CLEANING What? How? Important! • When the power to the hob is Everyday soiling on 1. Switch the power to the switched off, there will be no ‘hot glass (fingerprints, cooktop off. surface’ indication but the cooking marks, stains left by 2. -
Page 18: Hints And Tips
HINTS AND TIPS Problem Possible causes What to do The hob cannot be No power. Make sure the induction hob is turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. -
Page 19: Fault Codes
FAULT CODES If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes: Error Codes If there is an error, an error code will be shown on the heater displays. Cooling Fan is disabled. Call an authorised service agent. Supply voltage is other than the rated values. -
Page 20: Technical Information
TECHNICAL SPECIFICATION Symbol Value Unit Model EQINDTOUCH60LG Type of hob Induction Net weight 34.55 Supply voltage 230V~ Number of cooking zones or areas Heating technology (induction cooking zones Induction cooking and cooking areas, radiant zone cooking zones, solid plates) For circular cooking zones... -
Page 21: Support
UK SUPPORT www.electriQ.co.uk/support www.electriQ.co.uk Call: 03303903061 Office hours: 9AM - 5PM Monday to Friday Unit J6, Lowfields Business Park Lowfields Way, Elland West Yorkshire, HX5 9DA Recycling facilities are now available for all customers at which you can deposit your old electrical products.
