Amino Amigo 7X User Manual

Amigo 7X User Guide
Contents
Your Amigo 7X is supplied with the correct power
adaptor for your region. Depending on the choices
made by your service provider, your box may also con-
tain the optional accessories shown below.
The Amigo 7X is protected with a clear plastic film. This
should be removed before use.
Optional accessories
HDMI cable
Ethernet cable
3.5 mm jack to
3 x RCA cable
Remote control and batteries
1. Connecting the Amigo 7X to a TV
Warning! Before connecting or disconnecting the
Amigo 7X to your TV using any kind of cable, first
switch off the Amigo 7X, the TV and all other devices
connected to it (amplifiers etc.) and disconnect them
from the mains electrical supply.
You have a choice of ways to connect the audio and
video produced by the Amigo 7X to your TV:
1. HDMI: Recommended for best quality. Connect an
HDMI cable from the HDMI output of the Amigo 7X
to the HDMI input of your TV.
2. Analog A/V: Provides good quality in SD only.
Composite video with analogue audio left/right.
Connect the 3.5 mm jack to the analogue A/V output
on the Amigo 7X. Connect the yellow RCA plug to
the yellow video port on your TV. Connect the red
and white RCA plugs to the red and white audio
ports on your TV.
Connecting your television directly to the audio/video
output of your Set Top Box will assure a more vivid
picture and enhance your viewing enjoyment.
Connecting via Wi-Fi
The Amigo 7X features internal dual band Wi-Fi. Please
contact your service provider for detailed instructions
about configuring the wireless network.

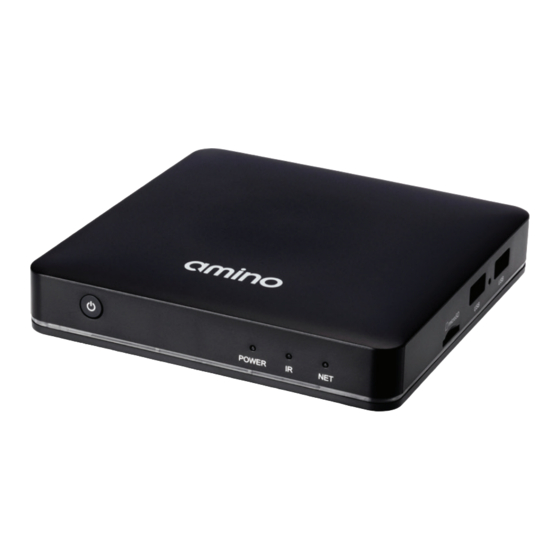

Overview of the Amigo 7X
1. Power/Activity LED
2. Infra Red receiver LED – lights when signal is received
from the remote control.
3. Internet LED - lights when the product has Internet
connection.
5
1 2
1. Analogue A/V output (adapter cable available).
2. HDMI port.
3. Ethernet port.
4. DC power input 12V/1A PSU.
5. 2X USB port. DO NOT use this port to charge USB
devices. It can be used to access external storage
media such as a USB flash drive if formatted as
FAT32. These ports can also be used to update
software and program lists on the Amigo 7X.
2. Connecting the Amigo 7X to an A/V
amplifier
Connect an HDMI cable to the HDMI output of the
Amigo 7X and to the HDMI input of your A/V amplifier
or home cinema system.
3. Connecting the Amigo 7X to the power
supply
Warning! The Amigo 7X must only be used with the
power adapter provided with the product. Ensure the
power adapter supplied is the correct one for your
region. If you are unsure, contact your service provider.
Connect the power adapter to the DC power input of
the Amigo 7X, then insert the power adapter plug into
the mains supply.
4
3 4
