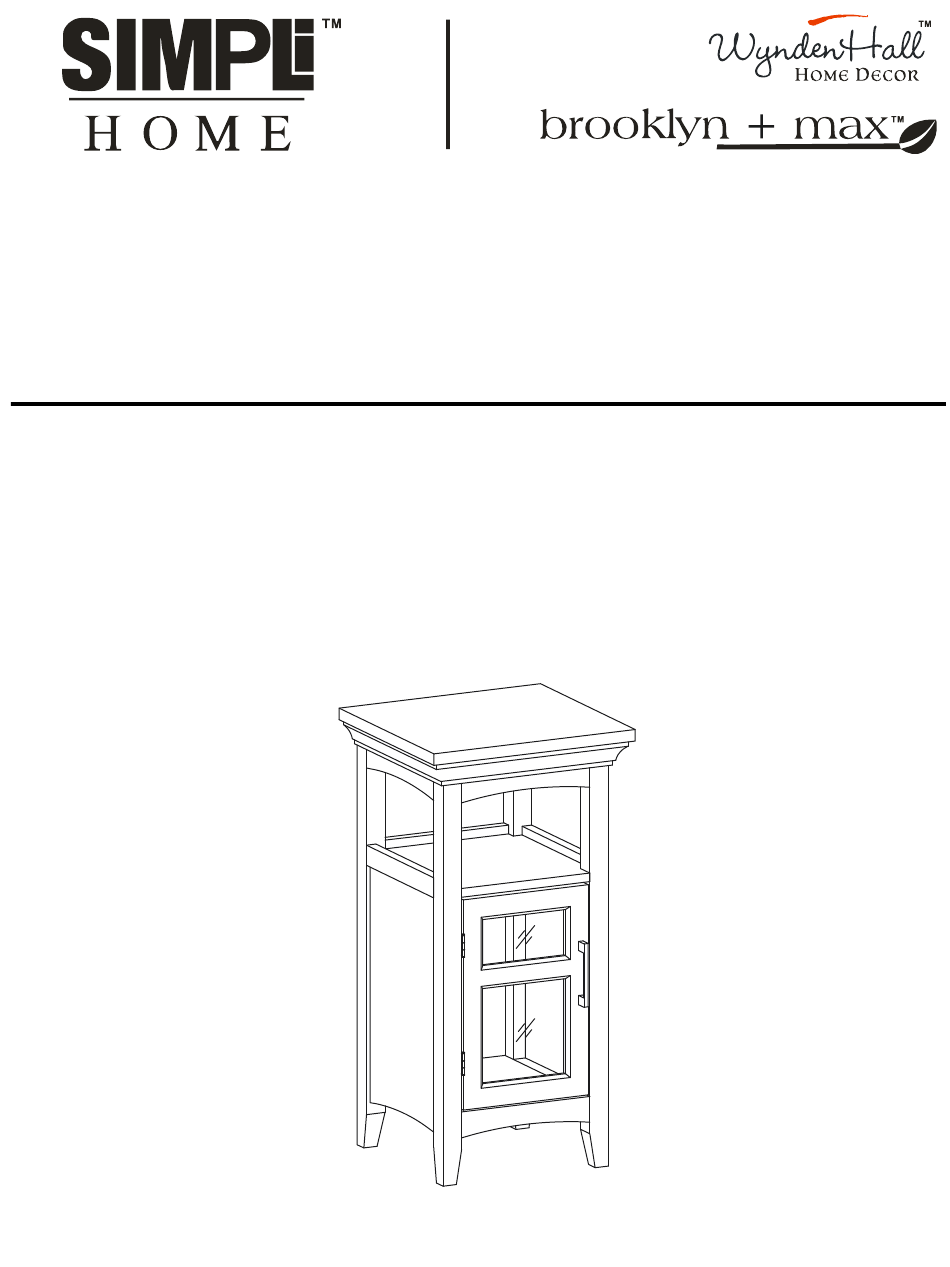

- Page 1 AVINGTON / MIA / HAYES FLOOR STORAGE CABINET MODEL # AXCBC‐003‐WH ...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli‐home.com/customer‐support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET ...
-
Page 3: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. WARNING: This item contains small parts which can be swallowed by children and pets. Keep children and pets away during assembly. To avoid danger of suffocation, always keep plastic bags away from children and pets. We recommend that you assemble this unit on a carpeted floor to avoid scratches. We do not recommend the use of power tools for assembly as this could damage the unit. Only use manual tools. Requires 2 people for ease of assembly. CARE and MAINTENANCE To clean, use a soft or slightly damp cloth, then wipe with a clean, dry cloth. Dust with a soft dry cloth. Do not use ammonia‐based cleaning products, as they will damage the finish. Do not leave liquids or damp cloths on this furniture. To avoid dulling of the finish, do not place this furniture in direct sunlight. Please inspect and tighten all screws or bolts on a regular basis to ensure proper performance and safety of your item. ... -
Page 4: Pre-Assembly
PRE‐ASSEMBLY TOOLS REQUIRED Phillips Level screwdriver HARDWARE DESCRIPTION Part Description Quantity Wood Dowel Cam Bolt Cam Lock Screw Screw Magnet Screw Handle Screw Plastic Anchor Screw Metal Hinge Magnet Plate Bracket Screw Cable Screw NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1‐866‐518‐0120 ext. 262 (9 am to 5 pm EST) - Page 5 PRE‐ASSEMBLY PACKAGE CONTENTS Part Description Quantity Cabinet Top Left Side Panel Right Side Panel Front Top Cross Bar Door Middle Shelf Bottom Shelf Back Cross Bar Back Board Front Bottom Cross Bar NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1‐866‐518‐0120 ext. 262 (9 am to 5 pm EST)
- Page 6 ASSEMBLY Assembling the Left and Right Side Panel □ Lay down the left side panel (B) and screw four cam bolts (BB) into the pre-drilled holes by using a Phillips screwdriver. □ Lay down the right side panel (C) and screw four cam bolts (BB) into the pre-drilled holes by using a Phillips screwdriver. □...
- Page 7 ASSEMBLY Assembling the Back Cross Bar, Middle Shelf, Front Top Cross Bar, Bottom Shelf and Front Bottom Cross Bar □ Attach the front top cross bar (D), middle shelf (F), back cross bar (H), bottom shelf (G) and front bottom cross bar (J) to the right side panel (C) by inserting cam bolts (BB) into cam lock holes and inserting wood dowels (AA) into dowel holes on the front top cross bar (D), middle shelf (F), back cross bar (H), bottom shelf (G) and front bottom cross bar (J).
- Page 8 ASSEMBLY Assembling the Cabinet Top □ Attach the cabinet top (A) to both pre-assembled side panels (B) and (C) by inserting four wood dowels (AA) into dowel holes in both side panels (B) and (C). □ Insert four screws (QQ) through the holes on the top of both side panels (B) and (C), then tighten using a Phillips Screwdriver. Assembling the Back Board □...
- Page 9 ASSEMBLY Assembling the Door □ Attach the door (E) to the left side panel (B) by inserting four screws (KK) through the holes on the hinges (LL) and tighten. □ Attach the handle (HH) to the door (E) by inserting two screws (GG) through holes on the door (E), then tighten the handle (HH) using a Phillips screwdriver.
-
Page 10: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high‐quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. In case of any malfunction of your product (failure, missing parts, etc.) please contact us at our toll free service line at 1‐866‐518‐0120 ext. 262 from 9 am to 5 pm, Monday to Friday, Eastern Standard Time or by email at simpli‐home.com/customer‐support. We reserve the right to repair or replace the defective product, at its discretion. This product is guaranteed for 12 months if used for normal purposes. Any warranty is invalid if the product has been overloaded or subject to neglect, improper use or an attempted repair by other than an authorized agent. Heavy‐duty or daily professional/commercial usage are not guaranteed. Due to continuous product improvement, we reserve the right to change the product specifications without prior notice. ... - Page 11 Question, problems, missing parts? Before returning please email Customer Support at simpli‐home.com/customer‐support or call Customer Service at 1‐866‐0518‐0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli‐home.com Like us on facebook www.facebook.com/simplihomefurnishings ...
- Page 12 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included) (vanities not included) ...
