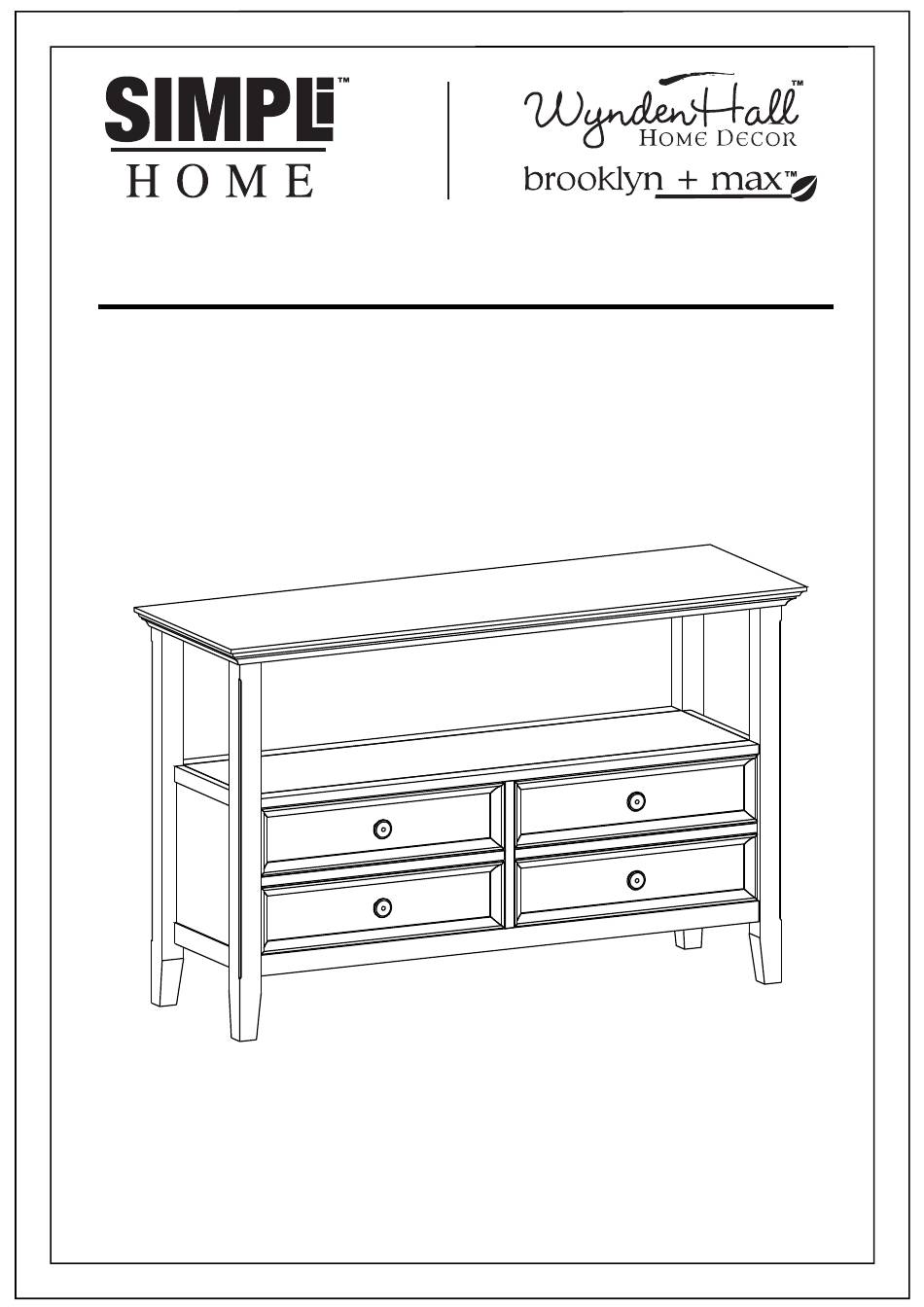

AMHERST / HALIFAX / WASHINGTON
CONSOLE TABLE
MODEL # AXCAMH-003
1/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WyndenHall Brooklyn + Max AXCAMH-003 and is the answer not in the manual?

Questions and answers

Related Manuals for Simple Home WyndenHall Brooklyn + Max AXCAMH-003

Summary of Contents for Simple Home WyndenHall Brooklyn + Max AXCAMH-003

  • Page 1 AMHERST / HALIFAX / WASHINGTON CONSOLE TABLE MODEL # AXCAMH-003 1/16...
  • Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/16...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 4: Parts Description

    MODEL # AXCAMH-003 PRE ASSEMBLY INFORMATION PARTS DESCRIPTION SIDE BOTTOM FRAME QTY 1 PAIR QTY 1 QTY 1 TOP SHELF DRAWER FRONT DRAWER SIDE QTY 1 QTY 2 QTY 2 PAIRS DRAWER BACK DRAWER BOTTOM BACK PANEL QTY 2 QTY 2 QTY 1 DIVIDER QTY 1...

  • Page 5: Hardware Description

    PRE ASSEMBLY INFORMATION MODEL # AXCAMH-003 HARDWARE DESCRIPTION CAM LOCK PIN ALLEN KEY SCREW ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 26 QTY 14 SETS Required - PHILLIPS SCREW Flathead screwdriver ROUND HEAD Phillips screwdriver M4 X 15mm HANDLE Not Included QTY 12...
  • Page 6 COMPONENTS – KEY DIAGRAM MODEL # AXCAMH-003 6/16...
  • Page 7 ASSEMBLY MODEL # AXCAMH-003 STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front E . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides F . 3. Insert 2 Cam Lock 2 into pre-drilled holes on each Drawer Side F . 4.
  • Page 8 ASSEMBLY MODEL # AXCAMH-003 STEP 3 1. Align Drawer Back G with Drawer Bottom H and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each side. 3. Use Allen Key 3 to tighten. Do not over tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
  • Page 9 ASSEMBLY MODEL # AXCAMH-003 STEP 5 1. Insert 3 Allen Key Screws 1 into pre-drilled holes through the Divider J into bar on Top Shelf D . 2. Use Allen Key 3 to tighten. Do not over-tighten. 9/16...
  • Page 10 ASSEMBLY MODEL # AXCAMH-003 STEP 6 1. Insert 3 Allen Key Screws 1 into pre-drilled holes through centre of Bottom Frame C into Divider J . 2. Use Allen key 3 to tighten. Do not over-tighten. 10/15...
  • Page 11 ASSEMBLY MODEL # AXCAMH-003 STEP 7 1. Attach 3 Cam Lock Pins 2 to each Side A using guide holes . 2. Align Cam Lock Pins with pre-drilled holes on Top Shelf D . 3. Insert 6 Cam Locks 2 into pre-drilled holes on Top Shelf D ( 3 / each Side) . 4.
  • Page 12 ASSEMBLY MODEL # AXCAMH-003 STEP 8 1. Insert 6 Allen Key Screws 1 into pre-drilled holes on Sides A into Top B ( 3 Screws / each Side ). 2. Use Allen Key 3 to tighten. Do not over tighten . 12/16...
  • Page 13 ASSEMBLY MODEL # AXCAMH-003 STEP 9 1. Attach Back Panel I to back frame of cabinet using Phillips Screws Round Head 4 into pre-drilled guide holes. 2. Use Phillips screwdriver to tighten screws. Do not over tighten. STEP 10 1. Insert assembled drawers into glides on assembled table. 13/16...

  • Page 14: Warranty

    WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
  • Page 15 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 15/16...
  • Page 16 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included) (vanities not included) 16/16...
