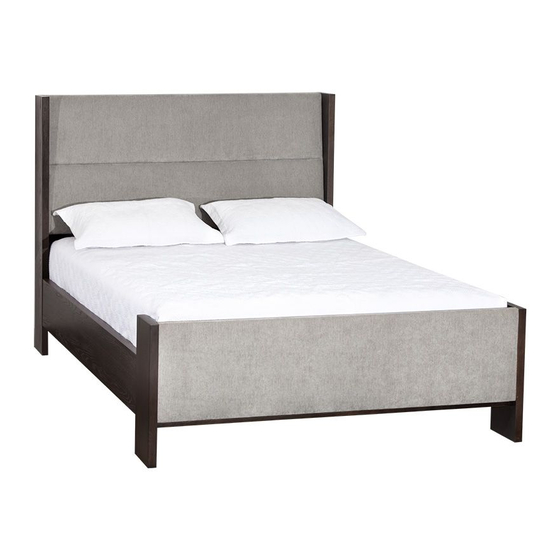

SUNPAN MILO BED-POLO CLUB STONE-104991 Assembly Instructions

MILO BED-POLO CLUB STONE-104991/104399
A
F
C
- PLEASE DO NOT DISCARD ANY OF THE
PACKAGING UNTIL YOU HAVE CHECKED ALL THE
PARTS AND THE PACKS OF HARDWARE.
- BEFORE YOU BEGIN TO ASSEMBLE YOUR NEW
PIECE OF FURNITURE, PLEASE CHECK TO ENSURE
THAT ALL PARTS HAVE BEEN SUPPLIED.
- FOLLOW INSTRUCTIONS CLOSELY AS DEVIATION
FROM THEM MAY VOID YOUR WARRANTY AND
PRESENT A POSSIBLE SAFETY RISK.
- IT IS RECOMMENDED THAT ASSEMBLY IS DONE
ON A SOFT SURFACE LIKE CARPET TO AVOID ANY
DAMAGE.
- PERIODICALLY CHECK AND RE-TIGHTEN ANY
FASTENERS. WIPE DOWN ALL SURFACES WEEKLY
WITH A CLEAN CLOTH. DO NOT CLEAN ANY
SURFACES WITH HARSH ABRASIVAES OR
CHEMICALS.
1.
A
C
ASSEMBLY INSTRUCTIONS
C
D
E
B
Parts Check List
Components
Code
A
HEAD BOARD
B FOOT BOARD
SIDE RAIL
C
D
CENTER SUPPORT
E
CENTER LEG
F
SLAT
Hardware Check List
Code
Description
01 Bolt
02 Hanger bolt
D Washer
03
Spring Washer
04
05 Nut
06 Short Screw
07 Long Screw
08 Allen key
09 Spanner
Phillips head screwdriver tool needed
(Not included)
C
B
02 03 04
Qty
x01
x01
x02
x01
x02
x01
Qty
x04
x08
x08
x08
x08
x02
x24
x01
x01
100%
05
09
