unpan item No. : 107645
S

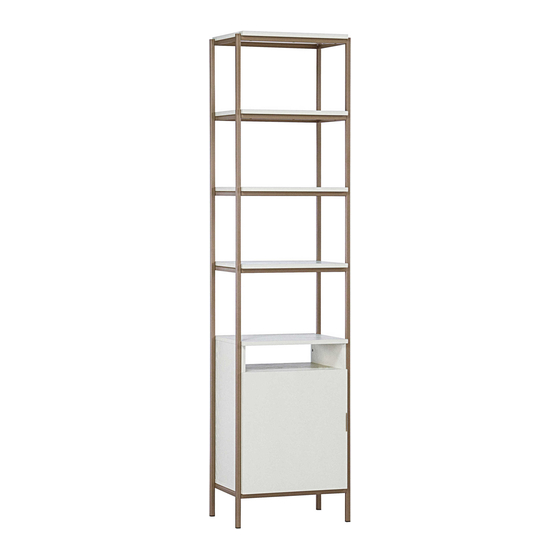

Sunpan Product Name : AMBROSE MODULAR BOOKCASE - SMALL - CHAMPAGNE GOLD - CREAM
Please visit our website www.sunpan.com for more great products.
For assembly questions please call 1-800-787-1019 (or +1-416-736-0094) outside North America or email to info@sunpan.com
A
B
C
D
E
F
G
H

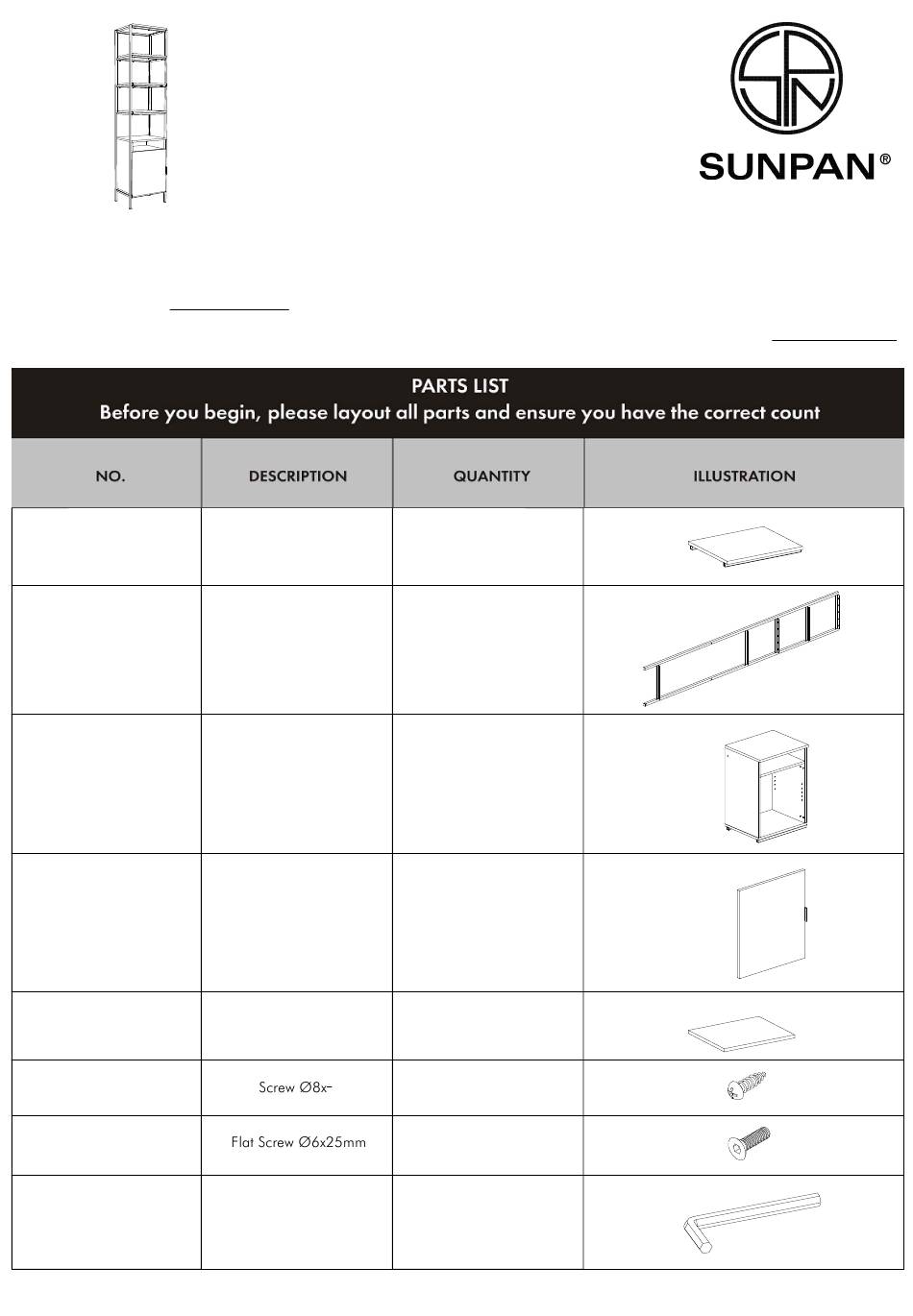

ASSEMBLY INSTRUCTION
Shelves
Legs
Cabinet
Door
Adjustable shelf
5
"
8
Hex Key 4mm
4
2
1
1
1
50
2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SUNPAN AMBROSE 107645
Summary of Contents for SUNPAN AMBROSE 107645
- Page 1 Sunpan Product Name : AMBROSE MODULAR BOOKCASE - SMALL - CHAMPAGNE GOLD - CREAM Please visit our website www.sunpan.com for more great products. For assembly questions please call 1-800-787-1019 (or +1-416-736-0094) outside North America or email to info@sunpan.com Shelves Legs...
- Page 2 Shelf Support Hinges Clip Mounting Plate Hinge Cover Cap Varianta Screw M6x11mm Counter Sunk Screws " Anti Tipping Kit 1 set...
- Page 3 Place the cabinet (C) on a flat surface with front side up position. Use packing material as protection. Attach leg (B) to cabinet (C). " (F) to assemble by following the screw holes on bottom of cabinet, and tighten with screw driver.
- Page 4 Install shelves (A) to leg (B). " (F) to assemble by following the screw holes on bottom of shelves, and tighten with screw driver.
- Page 5 Install leg (B), and use screw " (F) to assemble by following the screw holes on bottom of cabinet/shelves, and tighten with screw driver.
- Page 6 (G) and tighten using hex key 4mm (H) to fix the legs (B) and cabinet (C). Place the door (D) on a flat surface with back side up position. Use packing material as protection. Install hinges (J) to door (D). Use counter sunk screw "...
- Page 7 The door can be attached in 2 options, left or right opening. Left Opening Right Opening Install clip mounting plate (K) and use varianta screw M6x11mm (M) to assemble by following the screw holes on side panel (left or right), and tighten with screw driver.
- Page 8 Attach the door (D) to the cabinet following instructions below : Step 1. Step 1. Attach small bar behind the hinges (J) into the groove in front end of clip mounting plate (K). Step 2. Step 2. Push end part of the hinge (J) to lock "until it clicks".
- Page 9 Attach hinge cover cap (L) Insert shelf support (I) and install adjustable shelf (E).
-
Page 10: Assembly Tips
Assembly completed. ASSEMBLY TIPS : Please check parts and hardware before assembling. Follow each instruction step by step. Place a protective pad or piece of cardboard on the floor while assembling your item on top of it. Remove all parts from the carton and separate them into part numbers / groups as indicated on the part list. Please follow instructions in the sequence as numbered to assure fast / easy assembly. - Page 11 TO ADJUST THE DOORS FROM SIDE TO SIDE Turning screw A to adjust door position from side to side. TO ADJUST THE DOORS FROM FRONT TO BACK Turning screw B to adjust door position from front to back. TO ADJUST THE DOORS UP OR DOWN Turning screw C to adjust door position from up or down.
- Page 12 EXAMPLES FOR SECURING Wall Wall stud stud Pull to tighten Pull to tighten Furniture Furniture Attach to top of tall furniture Attach to top back frame of cabinet like curios Ideal installation for Dressers & Chests NOTES : Always mount to solid wood. Do not attach to plywood back panels. Always locate and attach to stud, do not depend on wall anchors.
