Panel-level Rapid Shutdown（PLC）
3.4 Overview and Dimensions of products

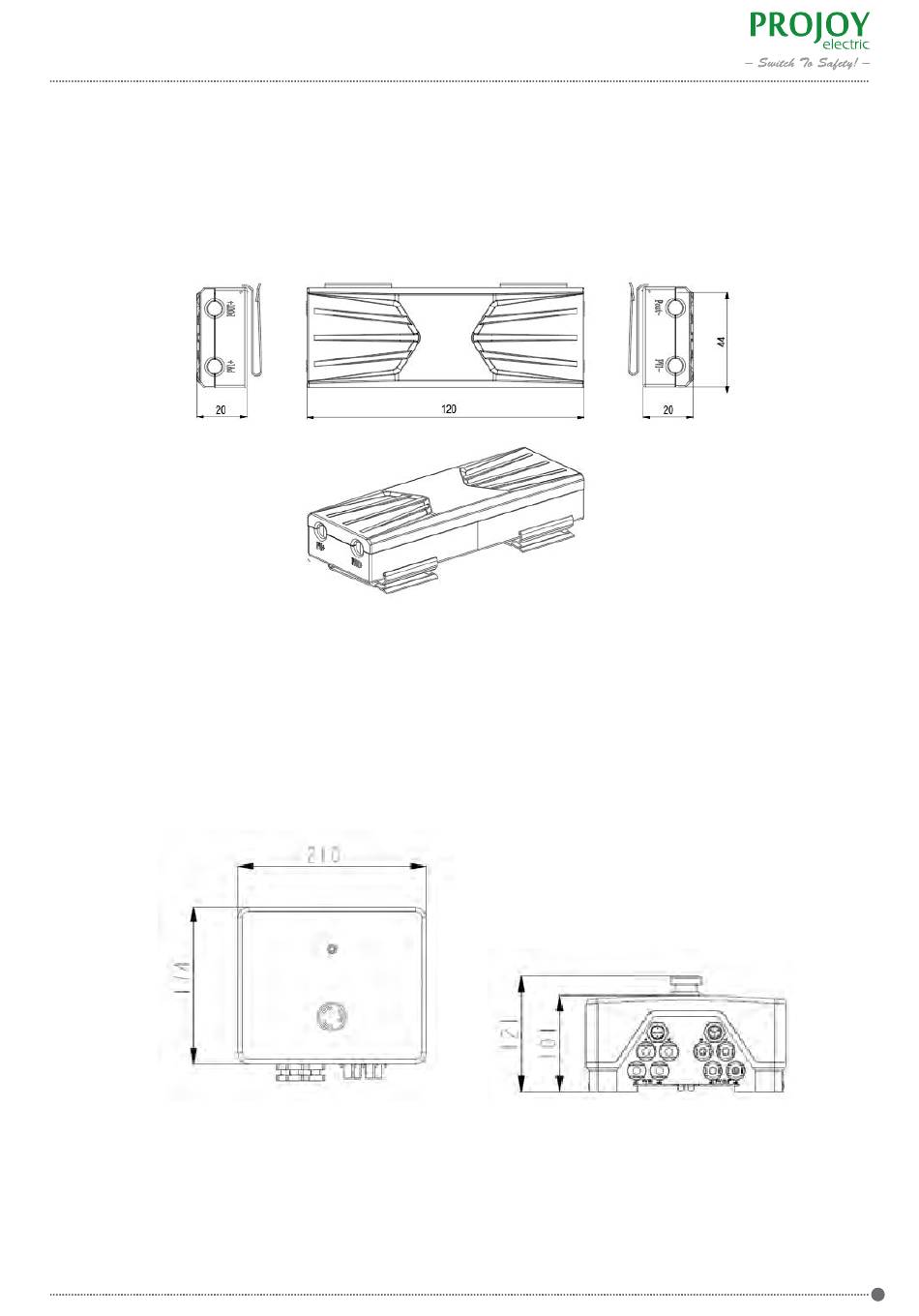

The dimensions of PEFS-PL80P-11 and PEFS-PL80P-21 are shown in Figure 3.3.
The dimensions of PEFS-PLC-CN are shown in Figure 3.4.
Figure 3.3 Dimensions of PEFS-PL80P-11 and PEFS-PL80P-21
Figure 3.4 Dimensions of PEFS-PLC-CN
(Unit: mm)
(Unit: mm)
www.projoy-electric.com
5
