Summary of Contents for Projoy Electric PEFS-PL80P-11

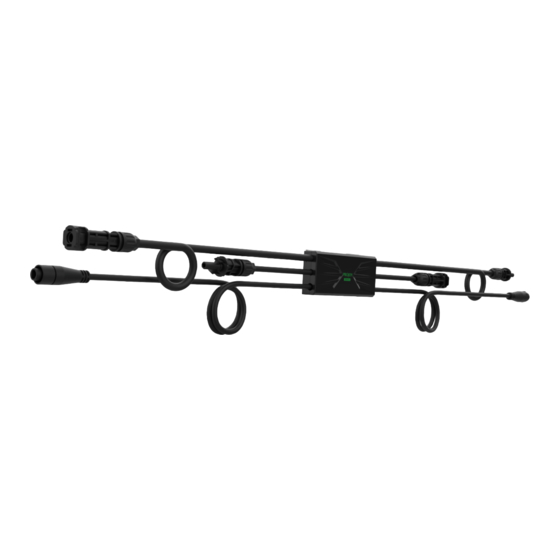

- Page 1 Installation Guide Panel-level Rapid Shutdown （PLC） www.projoy-electric.com...
-
Page 2: Table Of Contents
3.4 Overview and Dimensions of products 3.5 Datasheet 4 Instructions for installation 4.1 Safety Instructions 4.2 Pre-installation Check 4.3 Installation of PEFS-PL80P-11/21 4.4 Installation of PEFS-PC 4.5 Start the PVRSS system 5 System Test and Troubleshooting 5.1 System test 5.1.1 Function test 5.1.2 Maintain test... -
Page 3: Safety Precautions2 Safety Instructions And Regulations
1 Safety Precautions 1.1 Scope of Application This User Manual describes instructions and detailed procedures for installing, operating, maintaining, and troubleshooting of the following Projoy Panel-level Rapid Shutdown Equipment: PEFS-PL80P-11 PEFS-PL80P-21 PEFS-PCY06-P PEFS-PCZS06-P Please keep this manual all time available in case of emergency. -
Page 4: Preparation
Panel-level Rapid Shutdown（PLC） 2 Preparation 2.1 Safety Instructions DANGER • Do not disconnect PEFS-PL while the PVRSS is working. There is possibility of dying due to electrical shock and high voltage. • To prevent risk of electric shock during installation and maintenance, please make sure that PEFS-PC or any other control unit, such as the DC switch of inverter, are turned off. -
Page 5: Explanations Of Symbols
Panel-level Rapid Shutdown（PLC） 2.2 Explanations of Symbols Symbol Description Danger of high electrical voltage This device is connected in series to the solar inverter, thus all work to the PVRSE shall only be carried out by qualified personnel. Danger of hot surface The components inside the PVRSE will release a lot of heat during operation. -
Page 6: Product Information
PEFS - PL80P-11 PEFS: RSD represents for Rapid Shutdown. PL: Panel-level. 80: Voltage parameter. P: Power carrier communication. 1/2: Input port. 1/2: Product Iteration. 3.3 System Diagram Figure 3.1 System Diagram (PEFS-PL80P-11 and PEFS-PC) Figure 3.2 System Diagram (PEFS-PL80P-21 and PEFS-PC) www.projoy-electric.com... -
Page 7: Overview And Dimensions Of Products
Panel-level Rapid Shutdown（PLC） 3.4 Overview and Dimensions of products The dimensions of PEFS-PL80P-11 and PEFS-PL80P-21 are shown in Figure 3.3. Figure 3.3 Dimensions of PEFS-PL80P-11 and PEFS-PL80P-21 The dimensions of PEFS-PC are shown in Figure 3.4. Figure 3.4 Dimensions of PEFS-PC... -
Page 8: Datasheet
Panel-level Rapid Shutdown（PLC） 3.5 Datasheet MODEL PEFS-PL80P-11 PEFS-PL80P-21 Max. Input Current [A] 20/20 MPPT Voltage Range [V] 12 - 80 12 - 80 Input Vmax PV [Vdc] 80/80 Output Vmax PV [Vdc] Max. System Voltage [V] 1500 1500 Isc PV (absolute Max.) [A]... -
Page 9: Instructions For Installation
4.3 Installation of PEFS-PL80P-11/21 WARNING •While PEFS-PL80P-11/21 are used without PEFS-PC, be sure that this photovoltaic rapid shutdown equipment (PVRSE) does not perform all of the functions of a complete photovoltaic rapid shutdown system (PVRSS). This PVRSE must be installed with other equipment to form a complete PVRSS that meets the requirements of NEC (NFPA 70) section 690.12 for controlled conductors outside the array. - Page 10 Panel-level Rapid Shutdown（PLC） Figure 4.1&4.2 Fixing the Rapid Shutdown Device 2) Connect the input of rapid shutdown device to the solar module. Figure 4.3 Connecting PEFS-PL80P-11 and solar module Figure 4.4 Connecting PEFS-PL80P-21 and solar modules www.projoy-electric.com...
-
Page 11: Installation Of Pefs-Pc
Panel-level Rapid Shutdown（PLC） 3) Connect the outputs of all the rapid shutdown devices one after another. Figure 4.5 Connecting Rapid Shutdown Device in Series 4) While PEFS-PL80P-21 are used without PEFS-PC, connect each string of the rapid shutdown devices to the solar inverter. 4.4 Installation of PEFS-PC WARNING •While PEFS-PL80P-21 are used with PEFS-PC, be sure that this photovoltaic rapid shutdown system... - Page 12 Panel-level Rapid Shutdown（PLC） Figure 4.6&4.7 Fixing the Rapid Shutdown Controller 2) Plug each string of rapid shutdown devices to the rapid shutdown controller. Then plug each output cable to the solar inverter. Figure 4.8 Connect the DC cable 3) Put the warning label in the PV system as required in the section 690.56(C) of NEC (NFPA70). www.projoy-electric.com...
-
Page 13: Start The Pvrss System
Panel-level Rapid Shutdown（PLC） Figure 4.4 Connecting PEFS-PL80P-21 and solar modules 4.5 Start the PVRSS system Turn on the power source of rapid shutdown controller. The rapid shutdown control system will start to work. The status of lights is shown as below: Rapid shutdown controller is powered Rapid shutdown controller is powered on and send signals to the rapid... -
Page 14: System Test And Troubleshooting
2) Rotate the button of rapid shutdown controller. The status of light will be on. The solar will start to work again. 5.1.2 Maintain test When the PEFS-PC stops working, the PEFS-PL80P-11 will have a continuous 0.9 V output and the PEFS-PL80P-21 will have a continuous 1.75 V output. -
Page 15: Recycling And Disposal
* Out of the scope of installation and use specified in relevant international standards; * Damage caused by abnormal natural environment. 8 Contact us Projoy Electric Co., Ltd. Tell： +86-512-6878 6489 Web: https://en.projoy-electric.com/ Add: 2nd Floor, Building 3, No. 2266, Taiyang Road, Xiangcheng District, Suzhou...
