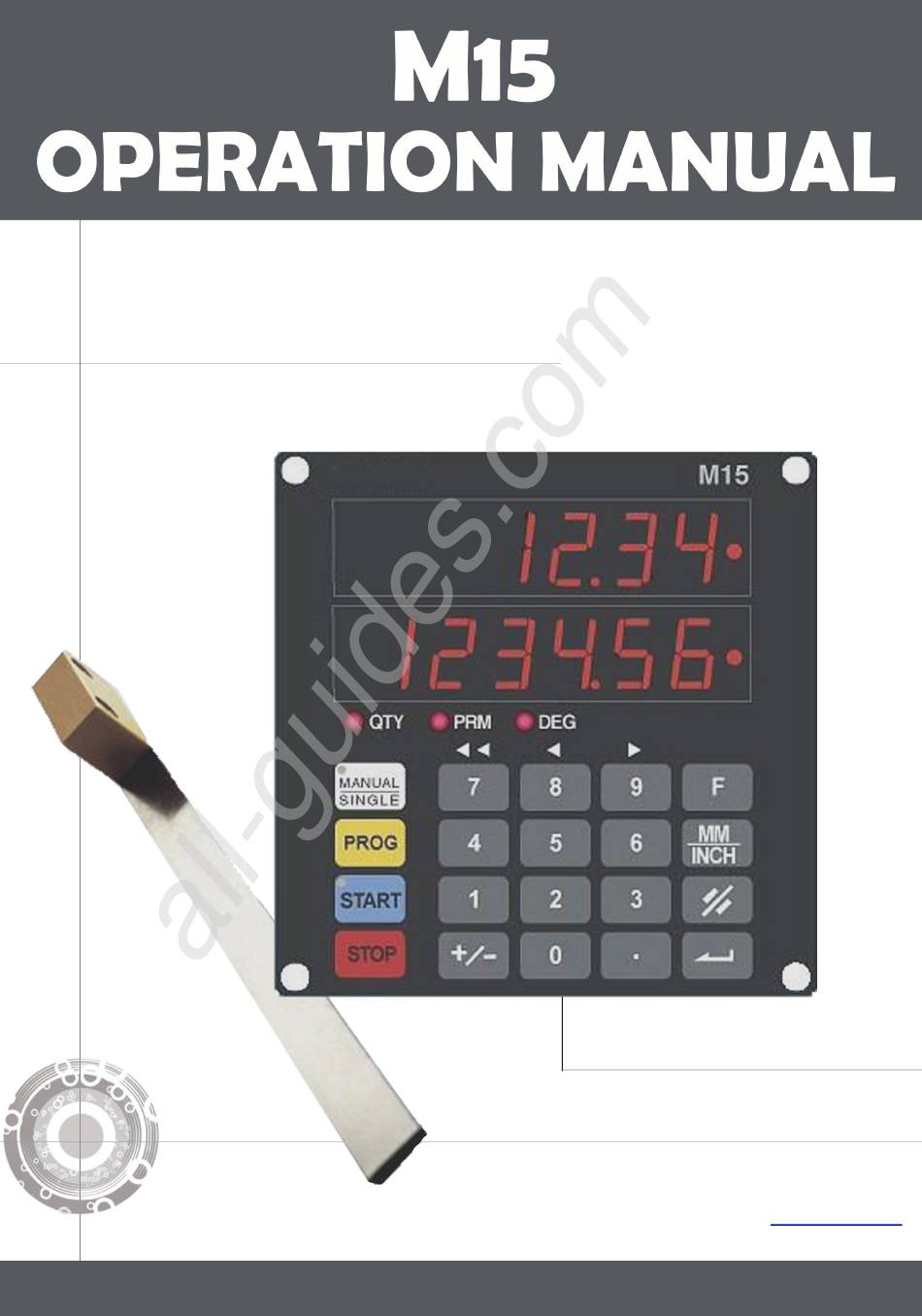

  • Page 1 All manuals and user guides at all-guides.com mikra sales@mikra.tw HFCE...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com TABLE OF CONTENTS OPERATION OVERVIEW AND GENERAL INTRODUCTION ........1 INTRODUCTION ......................2 MANUAL MODE ......................3 SINGLE MODE ......................3 PRE-SET PROGRAM (10 SETS) ................. 4 PROGRAM LOCK AND OPEN(10 SETS) ..............5 FAST PROGRAM ......................

  • Page 3: Operation Overview And General Introduction

    All manuals and user guides at all-guides.com Operation Panel Upper Window Lower Window LED lamp LED / KEY Description Description Description Manual / Single Upper Window Target value Parameter mode Target value Upper LED Program mm / inch Lower Window Current value Active Clear / Return Current value...

  • Page 4: Introduction

    All manuals and user guides at all-guides.com Introduction Function: 1. One or two speed positioning 7. Resolution: 0.1mm/ 0.05mm/ 0.01mm 2. Manual / Single mode 8. Correct zero point 3. 10 sets single program 9. Display: RPM speed 4. 10 sets tool offsets 10.

  • Page 5: Manual Mode

    96.80 lower speed (depends on machine and wiring). Single Mode Description: M15 can execute auto positioning. Example: M15 current value is 100.00mm, to reach 200mm (setting target value). Step1. Select single mode LED lamp is off. 100.00 100.00 Step2.

  • Page 6: Pre-Set Program (10 Sets)

    All manuals and user guides at all-guides.com Pre-Set Program (10 sets) Description: Pre-set program 10 sets, enter program # 0~9 to execute. Example: Program 1=10mm, Program 2=20.00mm. Step1. Press ProG select enter a key (0-9, total of 10sets). ※ Note: Be sure in manual mode. Step2.

  • Page 7: Program Lock And Open(10 Sets)

    All manuals and user guides at all-guides.com Program Open and Lock (10 sets) Description: Don’t needs pre-set program, to start or close. Example: Program 1=10.00mm for , program 2= 20.00mm for other a key, don’t setting pre-set program, to stop follow steps as below: ５...

  • Page 8: Fast Program

    LED blinking, to waitting start. START 100.00 ※Note: Execute program1 press#1. Fine Adjustment Description: Increase and decrease to reach fine adjustment. Example: M15 target value display100.78mm, increase/ decrease target value0.25mm, setting steps as below: Step1. Increase target value: press 0.00 display 0.00 LED blinking, 100.00...

  • Page 9: Load Datum Values

    All manuals and user guides at all-guides.com Load datum values A. Description: To load current value according to working piece. Example: M15 current value display100.00mm, actual size: 100.50mm, follow the steps as below: Step1. Select singe mode LED lamp off.

  • Page 10: Select Counting Direction(+/-)

    All manuals and user guides at all-guides.com Select Counting Direction(+/-) Description： To select the counting direction. Example：M-15 current value display: 100.00mm, sensor forward for decrease value 99.68mm, but hope value become big, value increase follow the steps as below: Step1. Press back single mode, LED lamp off.

  • Page 11: Resolution

    All manuals and user guides at all-guides.com Resolution Description: Select resolution: 0.1mm/0.01mm/0.05mm. Example: M15 current value display100.0mm, to select display:100.00mm follow the steps as below: Step 1. Select single mode LED lamp off. 100.0 100.0 Step 2. Press to select resolution.

  • Page 12: Sensor Calibration

    All manuals and user guides at all-guides.com Sensor Calibration A. A. A. A. Description: For better accuracy, please execute calibration immediately after installed sensor each time. Step 1. Fix sensor, keep 1mm gap from tape (RECOMMENDED). Gap sensor-tape Step 2. Press Target value display GO (Enter parameter)

  • Page 13: Set Parameter

    All manuals and user guides at all-guides.com B. Troubleshooting of calibration: a. Display: GAP LO Possible cause: The gap is too narrow. Excluding: Please enlarge the gap. Press follow step 2 again. b. Display: GAP Hi Possible cause: The gap is too big. Excluding: Please narrows the gap and press calibration again.

  • Page 14: Parameter

    All manuals and user guides at all-guides.com Parameter Parameter Display Description Default Remarks Load datum value CHAnGE Select counting direction (+ / -) -dir Load origin 0.00mm OriGin OffS- Set tool diameter 0.00mm ─ ─ ┤├─ POSdir Positioning mode ─ One or two speed positioning SPEEd LoAd 0...

  • Page 15: Parameter Lock And Open

    All manuals and user guides at all-guides.com Parameter Lock And Open Description: Needless function can open or close, to prevent client operation unsuitable to cause the fault. Step 1. Select single mode LED lamp off 100.00 100.00 Step 2. Press PASS target value display ”PASS”...

  • Page 16: Troubleshooting

    All manuals and user guides at all-guides.com Troubleshooting 1. Possible Cause: No sensor SEnSor Excluding: a. Power off Error b. 9 Pin connector is loosen or wire broken c. The gap is too big between sensor and tape. 2. Possible Cause: A motion in the wrong direction. CHAnGE Excluding: a.
  • Page 17 All manuals and user guides at all-guides.com 5. Possible Cause: Current value over soft low and high Lo Err (F10、F11) ※ Note: Frame show Lo/Hi Excluding: a. Check machine table whether over the travel. b. Press LED blinking press to exit. c.

  • Page 18: Installation Guide

    All manuals and user guides at all-guides.com Installation Guide ＊The magnetic tape consists of three components: Ｃ Ａ Ｂ Sensor side 1. 8 mm Height Mounting side 10 mm Width A. A magnetized, highly flexible synthetic tape. B. Flexible steel tape. A and B are already factory-bonded. C.
  • Page 19 All manuals and user guides at all-guides.com Cable: • Distance more than diameter 50mm. • Must be away from inductive and capacitive interference source as conductor, relays, motors, switch power pack clocked controllers, etc • Must be kept a distance to interference sources. Sensor: •...

  • Page 20: Power Supply & Hardware

    All manuals and user guides at all-guides.com Power Supply & Hardware Power supply: a. 2 PIN connector b. DC 18 ~ 30V 50mA Battery: C type battery×1, the battery life: 2.5 year(24hr) Output: a. 8 pin connector b. Relay × 4: Forward Reverse Low speed Positioning. Note: Positioning only works inside the tolerance and on position mode.

  • Page 21: External Dimension

    All manuals and user guides at all-guides.com External Dimension 100.00 Battery 100.00 Ø 5 x 4P Panel cut out Unit: mm : Required extra space for installation: 60mm...
