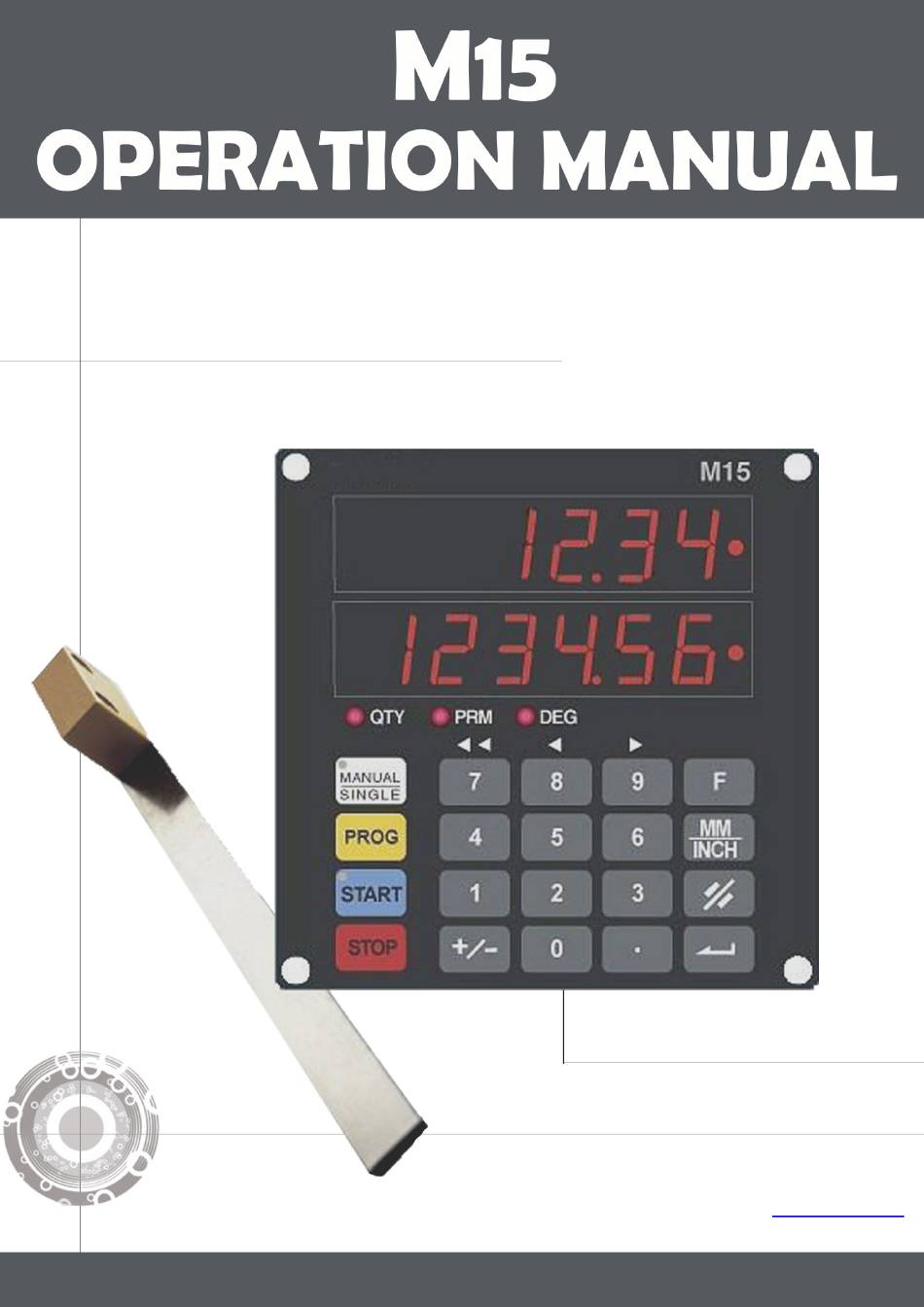

Mikra M15 Operation Manual

Hide thumbs Also See for M15:
Table of Contents

Advertisement

Quick Links

mikra
sales@mikra.tw
HFCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M15 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mikra M15

  • Page 1 HFCE...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS OPERATION OVERVIEW AND GENERAL INTRODUCTION ........1 INTRODUCTION ......................2 MANUAL MODE ......................3 SINGLE MODE ......................3 PRE-SET PROGRAM (10 SETS) ................. 4 PROGRAM LOCK AND OPEN(10 SETS) ..............5 FAST PROGRAM ......................6 FINE ADJUSTMENT ....................6 LOAD DATUM VALUES....................

  • Page 3: Operation Overview And General Introduction

    Operation Panel Upper Window Lower Window LED lamp LED / KEY Description Description Description Manual / Single Upper Window Target value Parameter mode Target value Upper LED Program mm / inch Lower Window Current value Active Clear / Return Current value Lower LED Stop / Cancel Confirm / Enter...

  • Page 4: Introduction

    Introduction Function: 1. One or two speed positioning 7. Resolution: 0.1mm/ 0.05mm/ 0.01mm 2. Manual / Single mode 8. Correct zero point 3. 10 sets single program 9. Display: RPM speed 4. 10 sets tool offsets 10. Protection for tool / motor fault 5.

  • Page 5: Manual Mode

    96.80 lower speed (depends on machine and wiring). Single Mode Description: M15 can execute auto positioning. Example: M15 current value is 100.00mm, to reach 200mm (setting target value). Step1. Select single mode LED lamp is off. 100.00 100.00 Step2.

  • Page 6: Pre-Set Program (10 Sets)

    Pre-Set Program (10 sets) Description: Pre-set program 10 sets, enter program # 0~9 to execute. Example: Program 1=10mm, Program 2=20.00mm. Step1. Press ProG select enter a key (0-9, total of 10sets). ※ Note: Be sure in manual mode. Step2. (Enter program 1=10mm), press ProG more press Step3.

  • Page 7: Program Lock And Open(10 Sets)

    Program Open and Lock (10 sets) Description: Don’t needs pre-set program, to start or close. Example: Program 1=10.00mm for , program 2= 20.00mm for other a key, don’t setting pre-set program, to stop follow steps as below: ５ ５ ５ ５ ５...

  • Page 8: Fast Program

    LED blinking, to waitting start. START 100.00 ※Note: Execute program1 press#1. Fine Adjustment Description: Increase and decrease to reach fine adjustment. Example: M15 target value display100.78mm, increase/ decrease target value0.25mm, setting steps as below: Step1. Increase target value: press 0.00 display 0.00 LED blinking, 100.00...

  • Page 9: Load Datum Values

    Load datum values A. Description: To load current value according to working piece. Example: M15 current value display100.00mm, actual size: 100.50mm, follow the steps as below: Step1. Select singe mode LED lamp off. 100.00 100.00 Step 2. Press , enter new...

  • Page 10: Select Counting Direction(+/-)

    Select Counting Direction(+/-) Description： To select the counting direction. Example：M-15 current value display: 100.00mm, sensor forward for decrease value 99.68mm, but hope value become big, value increase follow the steps as below: Step1. Press back single mode, LED lamp off. 100.00 99.68 Step 2.

  • Page 11: Resolution

    Resolution Description: Select resolution: 0.1mm/0.01mm/0.05mm. Example: M15 current value display100.0mm, to select display:100.00mm follow the steps as below: Step 1. Select single mode LED lamp off. 100.0 100.0 Step 2. Press to select resolution. 100.0 Step 3. Press (0.1 / 0.01 / 0.05) 0.01...

  • Page 12: Sensor Calibration

    Sensor Calibration A. A. A. A. Description: For better accuracy, please execute calibration immediately after installed sensor each time. Step 1. Fix sensor, keep 1mm gap from tape (RECOMMENDED). Gap sensor-tape Step 2. Press Target value display GO (Enter parameter) Step 3、Press and hold to start.

  • Page 13: Set Parameter

    B. Troubleshooting of calibration: a. Display: GAP LO Possible cause: The gap is too narrow. Excluding: Please enlarge the gap. Press follow step 2 again. b. Display: GAP Hi Possible cause: The gap is too big. Excluding: Please narrows the gap and press calibration again.

  • Page 14: Parameter

    Parameter Parameter Display Description Default Remarks CHAnGE Load datum value Select counting direction (+ / -) -dir OriGin Load origin 0.00mm OffS- Set tool diameter 0.00mm ─ ─ ┤├─ POSdir Positioning mode ─ One or two speed positioning SPEEd Load tool diameter 0.00 LoAd 0 Lo-End...

  • Page 15: Parameter Lock And Open

    Parameter Lock And Open Description: Needless function can open or close, to prevent client operation unsuitable to cause the fault. Step 1. Select single mode LED lamp off 100.00 100.00 Step 2. Press PASS target value display ”PASS” blinking, _ _ _ _ current value display: _ _ _ _ blinking Step 3.

  • Page 16: Troubleshooting

    Troubleshooting 1. Possible Cause: No sensor SEnSor Excluding: a. Power off Error b. 9 Pin connector is loosen or wire broken c. The gap is too big between sensor and tape. 2. Possible Cause: A motion in the wrong direction. CHAnGE Excluding: a.
  • Page 17 5. Possible Cause: Current value over soft low and high Lo Err (F10、F11) ※ Note: Frame show Lo/Hi Excluding: a. Check machine table whether over the travel. b. Press LED blinking press to exit. c. Please reload origin datum values refer to page8.

  • Page 18: Installation Guide

    Installation Guide ＊The magnetic tape consists of three components: Ｃ Ａ Ｂ Sensor side 1. 8 mm Height Mounting side 10 mm Width A. A magnetized, highly flexible synthetic tape. B. Flexible steel tape. A and B are already factory-bonded. C.
  • Page 19 Cable: • Distance more than diameter 50mm. • Must be away from inductive and capacitive interference source as conductor, relays, motors, switch power pack clocked controllers, etc • Must be kept a distance to interference sources. Sensor: • Allow some fault when install the sensor. •...

  • Page 20: Power Supply & Hardware

    Power Supply & Hardware Power supply: a. 2 PIN connector b. DC 18 ~ 30V 50mA Battery: C type battery×1, the battery life: 2.5 year(24hr) Output: a. 8 pin connector b. Relay × 4: Forward Reverse Low speed Positioning. Note: Positioning only works inside the tolerance and on position mode. Manual mode: Do not work.

  • Page 21: External Dimension

    External Dimension 100.00 Battery 100.00 Ø 5 x 4P Panel cut out Unit: mm : Required extra space for installation: 60mm...
