Summary of Contents for Delta ATLO-RM-822

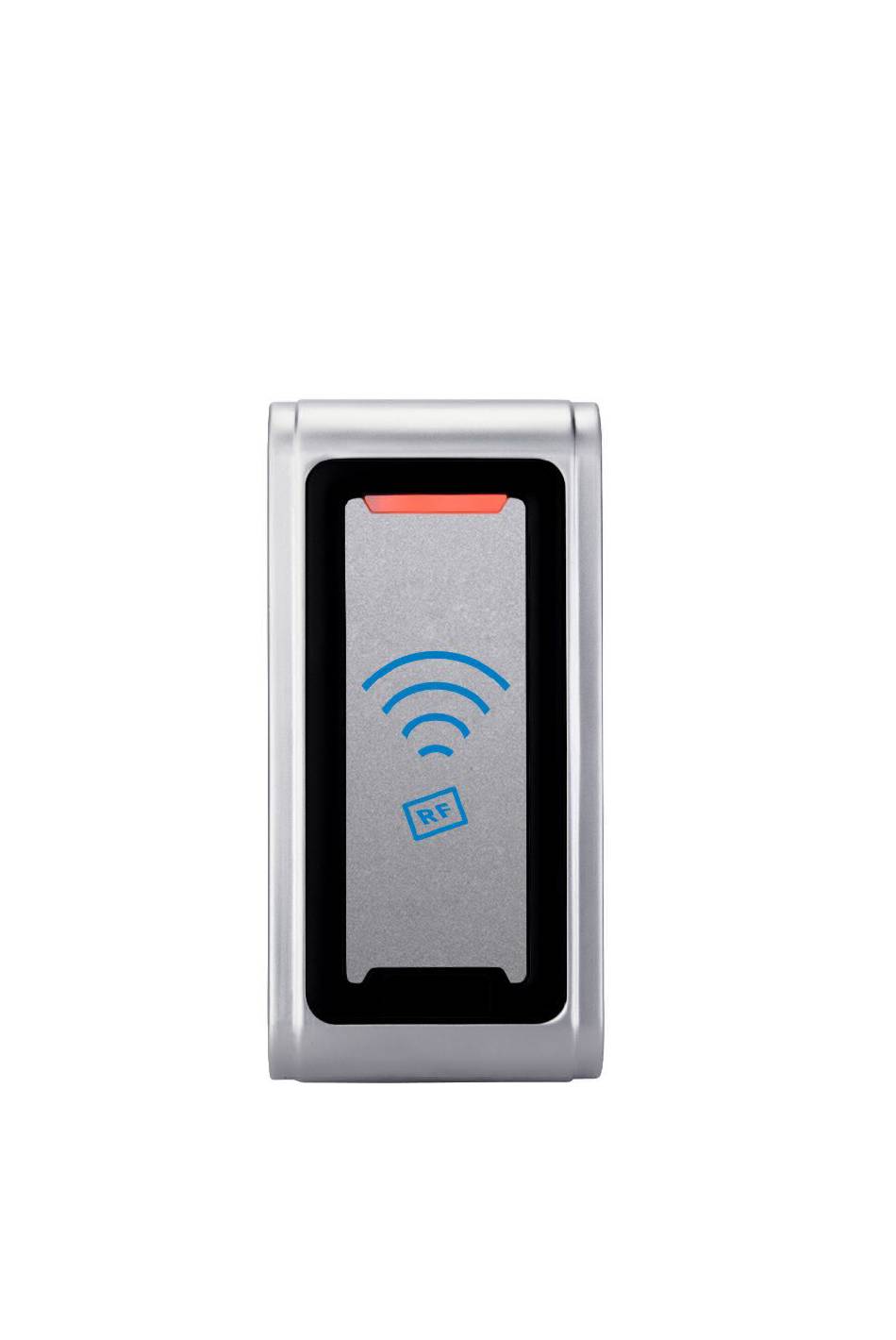

- Page 1 Large Capacity Access Control Proximity Card Reader...
-
Page 2: Technical Specifications
1. Introduction This series of product is a new generation of multifunctional standalone access control. It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable. It includes reader mode and standalone access control mode etc.. It’s widely applied to different occasions, such as offices,residential communities, villa,bank and prison etc.. -
Page 3: Common Power Supply
5.Wiring Color Marks Description Green Wiegand input ( Wiegand output as reader mode) White Wiegand input ( Wiegand output as reader mode) Yellow OPEN Exit button input end +12V Positive power supply Black Negative power supply Blue Relay NO end Purple Relay COM end Orange... -
Page 4: Reader Mode
6.2 Special Power Supply 6.3 Reader Mode 7. Sound and Light Indication Operation Status Light indicator Buzzer Stand by Operation successful Green Beep- Operation failed Beep-Beep-Beep Admin card enter programming Beep-Beep- Admin card exit programming Beep- Press * key Beep- Data backup Green indicator flash slowly... -
Page 5: Admin Menu
8. Admin Menu Admin Card Operation Add and Delete Users Add card user Read admin add card Read user card ... Read card continuously to add card user Read admin add card Delete card user Read admin delete card Read card continuously to delete card user Read user card ...Read admin delete card Delete ALL users Read admin delete card Read admin add card... -
Page 6: Delete Card
9 Admin Card Operation 9.1 Add Card Read admin add card , Read the 1 user card Read the 2 user card …,Read admin add card Note: The admin add card is used to add card users continuously and quickly. When you read the admin add card at the first time, you will hear short "BEEP-BEEP"...
