G6302

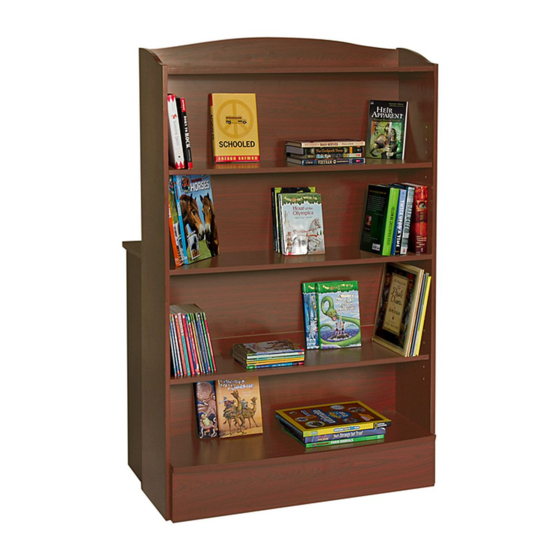

Double-Sided Display Center
Assembly Instructions
For ages 3 and up. Adult assembly required.
WARNING
!
Small parts and sharp points may be present
prior to assembly.
(29)
1
(6)
2
(6)
3
(4)
4
.5"
(12mm)
(12)
5
(12)
6
You will also
need a Phillips-
head screwdriver
(not included).
Guidecraf t • 55509 Highway 19 West , Wint hrop, MN 55396 • (800) 524-3555 • www. guidecraft. com
Care Instructions
To clean your product, use mild soap and
water on a damp cloth. Do not use window
cleaners or cleaning abrasives as they will
scratch the surface and could damage the
protective coating.
Customer Service
For questions regarding this product, or to
receive replacement or missing parts,
contact Customer Service at (800) 524-3555.
Please have the model number and part
number(s) located in this Assembly
Instruction sheet available for reference.
2"
(50mm)
1"
(25mm)
Hardware and Parts
H
B
J
Limited Warranty
All Guidecraft products are warranted to
the original purchaser at the time of
purchase and for a period of one (1)
year thereafter. In order to provide you
with timely assistance, please
thoroughly inspect your product for
missing or defective parts immediately
after opening the carton. To receive
replacement or missing parts under this
warranty, contact Customer Service.
You will also need your sales receipt or
other proof of purchase.
C
D
A
G
E
G
F
M
page 1 of 4
Advertisement
Related Manuals for guide craft G6302
Summary of Contents for guide craft G6302
- Page 1 G6302 Care Instructions Limited Warranty To clean your product, use mild soap and All Guidecraft products are warranted to Double-Sided Display Center water on a damp cloth. Do not use window the original purchaser at the time of Assembly Instructions...
- Page 2 page 2 of 4 Hardware Instructions Using a phil ips-head screwdriver, screw in cam pin ( 2) as shown. Place cam lock (3) in t he appropriat e hole located as show n. Af ter joining cam pin (2) Step 1 and cam l ock (3), t ighten cam l ock (3) wit h a phi lips-head...
- Page 3 page 3 of 4 Step 6 Step 7 Step 8 Guidecraft • 55509 Highway 19 West , Wint hrop, MN 55396 • (800) 524-3555 • www.guidecraft .com...
- Page 4 page 4 of 4 Shelves (G) are adjustable. Insert shelf pins ( ) in desired location. Place shelf on pins and secure with Screw ( Step 9 Shelf (R) is adjustable. Insert shelf pins ( ) in desired location. Place shelf on pins and secure with Screw ( Step 10...
