Summary of Contents for guide craft G97300

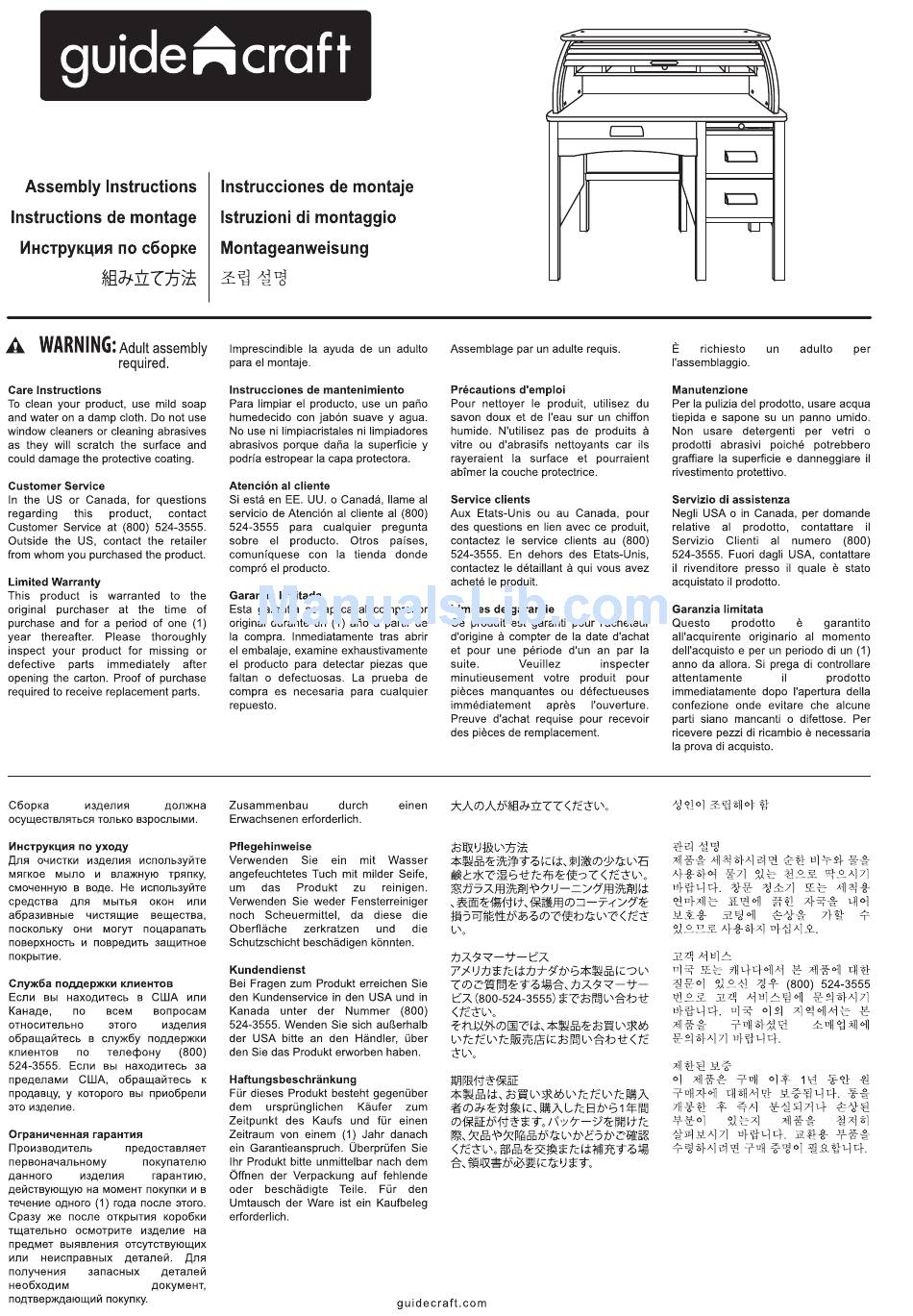

- Page 1 G97300, G97301, G97302...
- Page 2 G97300, G97301 Roll Top Desk Assembly Instructions Page 2 of 5 2" (50mm) 1" (30mm) (10) (10) .5" (12mm) (22) Guid ecra ft • 5 55 0 9 Hig hwa y 19 We st , Wint hrop, MN 55396 • ( 800) 524- 3555 • ww w.guidecr aft.com...
- Page 3 G97300, G97301 Roll Top Desk Assembly Instructions Page 3 of 5 Place cam pins (C) into holes shown above. Firmly tighten all cam pins. Place cam nuts (D) into holes on Parts T and U so that the arrow on the cam face is lined up with the opening.
- Page 4 G97300, G97301 Roll Top Desk Assembly Instructions Place cam pins (C) into holes shown below. Firmly tighten both cam pins. Page 4 of 5 Place cam nuts (D) into holes on side (P) . Attach desk top (P) to drawer unit (R), then tighten cam nuts by turning until they’ve...
- Page 5 G97300, G97301 Roll Top Desk Assembly Instructions Page 5 of 5 Attach top (K) to roll top sides (parts M and O) using screw (B). From the back of the unit, insert roll top slats (L) into grooves in the roll top sides. Make...
- Page 6 Insert desk drawer (Y) from the front of the unit. Attach back panels W and S using screws (E). When completed, insert the pull-out tray (Z) in the front section and the small drawer (G) in the storage compartment. Insert the pull-out tray (Z) in the front section and the small drawer (G) in the storage compartment.
- Page 7 G97300, G97301, G97302...
- Page 8 2" (50mm) Don’t forget to install Part H, the center brace.
