Summary of Contents for ADDAC System ADDAC311

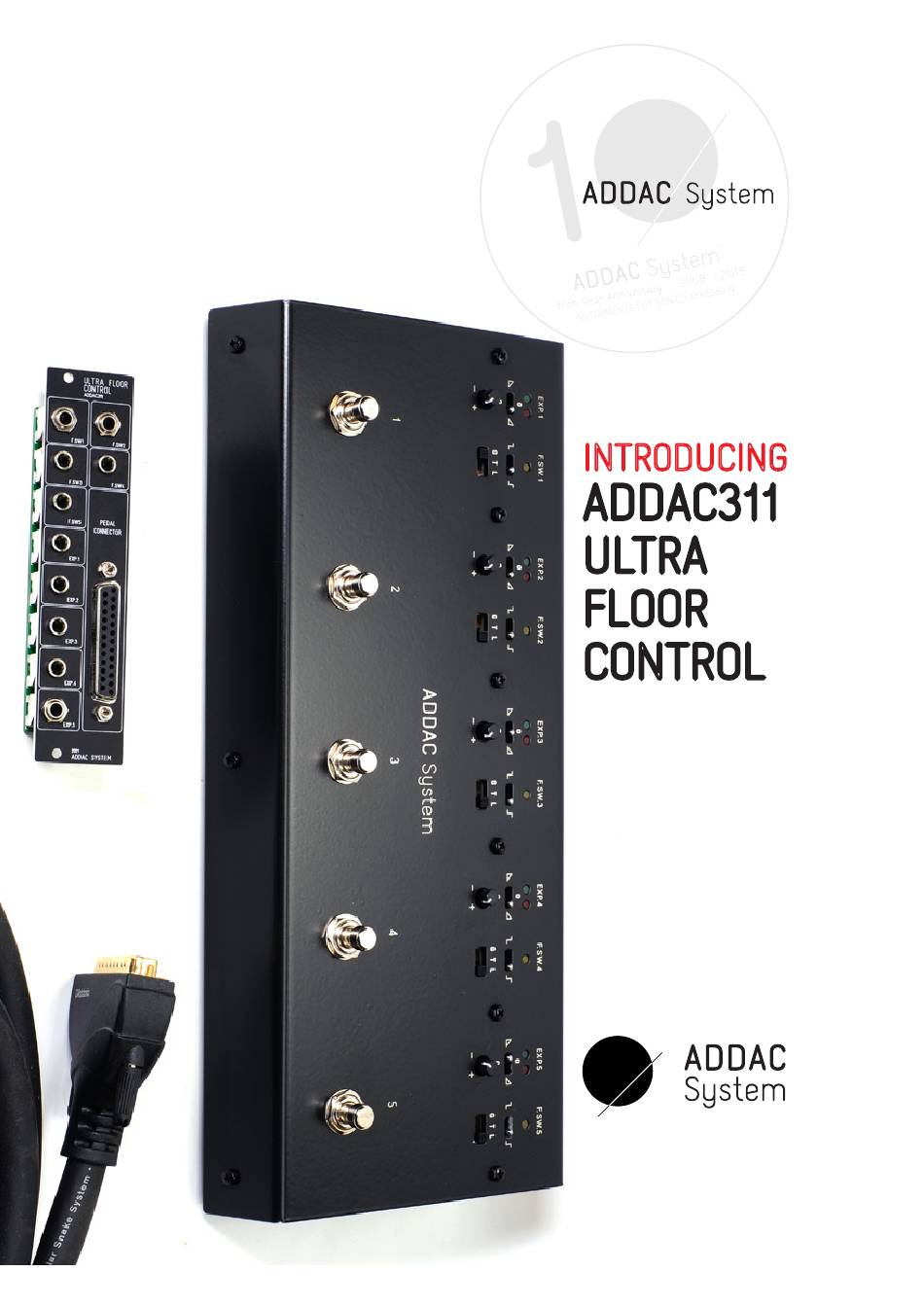

- Page 1 Instruments for Sonic Expression Est.2009 INTRODUCING ADDAC311 ULTRA FLOOR CONTROL USER’S GUIDE . REV01 April.2022 From Portugal with Love!
- Page 2 There are many expression pedals in the market and although the most common one is the TRS pedal there are 2 other standards: RTS and TS. All five ADDAC311 inputs expect TRS pedals, if you’re looking into buying one choose a TRS pedal.
- Page 3 ADDAC405 User’s Guide ADDAC311 ULTRA FLOOR CONTROL CONTROLS FOOTSWITCHES CONTROLS: ACTION INVERSION TOGGLE SWITCH ON TO OFF > PUSHDOWN = GATE OFF OFF TO ON > PUSHDOWN = GATE ON ACTION MODE SLIDE SWITCH G = GATE: turns output On/Off while the footswitch is pressed down...
- Page 4 ADDAC405 User’s Guide ADDAC311 ULTRA FLOOR CONTROL MODULE OVERVIEW FOOTSWITCH 1 OUTPUT FOOTSWITCH 2 OUTPUT FOOTSWITCH 3 OUTPUT FOOTSWITCH 4 OUTPUT FOOTSWITCH 5 OUTPUT EXPRESSION PEDAL 1 OUTPUT EXPRESSION PEDAL 2 OUTPUT DB25 CONNECTOR EXPRESSION PEDAL 3 OUTPUT CONNECTS TO EXTERNAL PEDAL...
- Page 5 ADDAC405 User’s Guide ADDAC311 ULTRA FLOOR CONTROL EXTERNAL PEDAL OVERVIEW BACK FRONT TRS EXPRESSION FOOTSWITCH 5 PEDAL INPUT 5 (OPTIONAL TS WITH JUMPER) TRS EXPRESSION PEDAL INPUT 4 (OPTIONAL RTS WITH JUMPER) FOOTSWITCH 4 DB25 CONNECTOR CONNECTS TO MODULE FOOTSWITCH 3...
- Page 6 ADDAC405 User’s Guide ADDAC311 ULTRA FLOOR CONTROL EXTERNAL PEDAL CONTROLS OUTPUT STATE LED MONITOR GREEN:-5v to 0v RED:0 to +5v OUTPUT STATE LED MONITOR 0v=OFF 5v=ON PEDAL ACTION MODE: ACTION INVERSION SWITCH TOE TO HEEL MUTE = 0v OUTPUT HEEL TO TOE...
- Page 7 For feedback, comments or problems please contact us at: addac@addacsystem.com ADDAC311 USER’S GUIDE Revision.01 April.2022...
