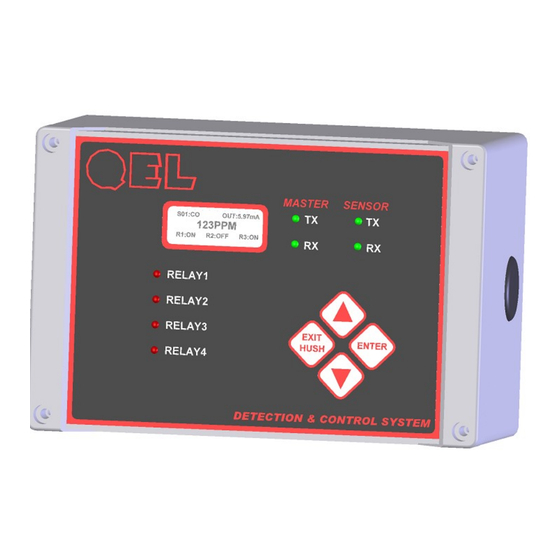

- Page 1 Q4 Controller II Q4C-II Four Channel Monitoring and Control System INSTALLATION OPERATION AND MAINTENANCE MANUAL QUATROSENSE ENVIRONMENTAL LTD. 5935 OTTAWA STREET, PO BOX 749 RICHMOND, ONTARIO CANADA K0A PHONE: (613) 838-4005 FAX: (613) 838-4018 Web: www.QELsafety.com Email: QEL@QELsafety.com...
-
Page 2: Table Of Contents
Table Of Contents GLOSSARY ............................2 GENERAL INFORMATION OVERVIEW ..................3 Q4C-II SPECIFICATIONS ........................ 4 INSTALLATION ..........................6 ......................... 6 NPACKING THE EQUIPMENT ..........................6 YPE AND OCATION ..............................8 ABLING ............................8 ONNECTORS ........................ 8 OWER UPPLY ONNECTION RS-485 I .......................... -
Page 3: Glossary
Q4 CONTROLLER II Operation and Maintenance Manual 1. Glossary Actuate/De-Actuate: These terms are used instead of ‘make’ and ‘break’ to allow us to distinguish between performing an action due to an environmental condition and whether the contact may be closed (‘made’) or open (‘break’) because of our use of double throw contacts, and the option of normally energized relays. -
Page 4: General Information Overview
Windows PC software, M-View, to access the Controller config database. Additional RS-485 port can be programmed through Menu to either work as a Modbus RTU port for BAS or SCADA (as default) or work as a BACnet port to connect QEL BAC-Box, which supports BACnet/IP protocol. -
Page 5: Q4C-Ii Specifications
Q4 CONTROLLER II Operation and Maintenance Manual 3. Q4C-II Specifications NOTICE: Installing or using this equipment in a manner not specified by the manufacturer could cause electric shock, bodily injury, or risk of fire. Specification: Power Supply Voltage: 24VDC nominal, range 18 to 30VDC... - Page 6 Maximum of 250mA on the 24VDC power supply RS-485 Sensor Ports with QEL Controller Protocol Remote Devices Available QEL digital transmitters, such as Q-series digital sensors, M-series digital sensors and QIRF RS-485 port, default setting is for Modbus protocol Modbus Slave Port _ Responds as a Modbus Slave using RTU protocol.
-
Page 7: Installation
Q4 CONTROLLER II Operation and Maintenance Manual 4. Installation 4.1 Unpacking the equipment The Q4 Controller is shipped with the following: The Q4 Controller in a NEMA 4X enclosure M-View USB Flash Drive User Operation Manual Installation Drawing ... - Page 8 Q4 CONTROLLER II Operation and Maintenance Manual Figure 1: Q4 Controller Physical Dimensions The controller also comes with a mounting feet kit as an option. The same wall mounting holes can used to install the feet kit. Q4 Controller II Operation Manual...
-
Page 9: Cabling
We recommend using BELDEN 9841 for communications. This wire has 120 ohms input impendence, which will eliminate RS-485 communication problems. QEL warrantees and support only covers installation with proper cable. If in doubt, please contact QEL support personnel. 4.4 Connectors Make sure to observe wiring to the correct terminal blocks. -
Page 10: Rs-485 Installation
Q4 CONTROLLER II Operation and Maintenance Manual 4.6 RS-485 Installation The RS-485 (EIA-485) standard specifies the electrical characteristics for a digital communication link allowing communication between multiple devices on a single link. The RS-485 uses two wires, A+ and B-, and works on the voltage difference between them. If the voltage difference is positive, then that is a “1”... - Page 11 Q4 CONTROLLER II Operation and Maintenance Manual Q4 Controller II Operation Manual - 10 - Dec 02, 2021 85350-101-000 Rev A...
-
Page 12: Sensor Port Rs-485 And Bac-Box Installation
Q4 CONTROLLER II Operation and Maintenance Manual 4.7 Sensor Port RS-485 and BAC-Box Installation The TB8 can be programmable set to either work with BAC-Box which supports BACnet/IP protocol, or work as Modbus RTU slave protocol, default is Modbus RTU protocol. -
Page 13: Function And Configuration
Q4 CONTROLLER II Operation and Maintenance Manual 5. Function and Configuration After the controller powers up, it will show no enabled inputs and outputs on the LCD display, as no input or output is enabled in the factory defaults settings. You need to enter MENU to config the Q4-Controller. -
Page 14: Voting Mode
Q4 CONTROLLER II Operation and Maintenance Manual Latching: Each relay may be set to latch in actuate status until acknowledged by a front-panel action Default is non-Latching Style: Normal Relay Style: Work as normal relay Buzzer Style Relay: ... -
Page 15: Averaging Mode
Q4 CONTROLLER II Operation and Maintenance Manual 5.4 Averaging Mode When working in Averaging mode, the Voting mode is disabled, and the Voting Number is forbidden automatically. Input values to “Average On”, “Average Off”. If Average On is great than or equal to Average Off:... -
Page 16: Keypad And Menu
Q4 CONTROLLER II Operation and Maintenance Manual 6. Keypad and Menu All database programming and configuration can be done through the front panel keypad, although this is practical only for short programs and program modifications. The following discussion and flow charts demonstrate the operation and menu pathways. In practice you will find that it is easier to use the keypad and menus than it is to read the reference descriptions. -
Page 17: Hold Mode
Q4 CONTROLLER II Operation and Maintenance Manual 6.1 Hold Mode: Press key [Up] or [Down] to scroll through the display items, at the same time the display goes to “Hold Mode” with display “*” at that row end. The Hold Mode will stop at that point for 3 minutes. -
Page 18: Menu "System Setting
Q4 CONTROLLER II Operation and Maintenance Manual 6.3 Menu “System Setting” The Menu system setup contains general settings for monitor operations, communications. Settings Description Backlight: Can be set to “Always ON”, “Always OFF”, “AUTO” Default setting is AUTO mode Modbus Address:... -
Page 19: Menu "Zero Cal
Q4 CONTROLLER II Operation and Maintenance Manual 6.4 Menu “Zero CAL” All QEL digital sensors can be calibrated at the sensor side by one-person operation. Q4 Controller provides Remote Zeroing and Span Calibration functions for these sensors which location is not accessible, so the remote calibration is a choice. Remote Zeroing Calibration is also very convenient to zeroing a drifted digital sensor remotely. -
Page 20: Menu "Sensor Setting
Q4 CONTROLLER II Operation and Maintenance Manual 6.6 Menu “Sensor Setting” For digital sensor 0 to sensor 3 configuration To assign a sensor input to any of relays, buzzers, and strobe, the sensor must already have been enabled in the sensor settings. -
Page 21: Menu "Buzzer / Strobe
Q4 CONTROLLER II Operation and Maintenance Manual 6.8 Menu “Buzzer / Strobe” Settings Description Enable: The Controller must be told which channels are active Voting Mode: See relay configuration in 5.2 Averaging Mode: See relay configuration in 5.2 On Delay (Minutes): See relay configuration in 5.2... -
Page 22: Menu "I/O Setting
For Factory Testing only Set Sensor port and Modbus port to be 19.2K Modbus RTU protocol with no parity. For QEL RS-485 Tester to quick test the RS-485 ports Relay 1-4 Test: Manually actuate / de-actuate Relay1 to Relay4 Buzzer & Strobe: Manually actuate / de-actuate Buzzer1 to Buzzer3 and Strobe 6.11 Menu “Output Disable”... -
Page 23: How To Create A Database
Q4 CONTROLLER II Operation and Maintenance Manual 7. How to Create a Database The base concept is to tell the Q4-Controller it has sensors and what their addresses are. Then tell the controller it has relays and how they will function. Finally tell the controller how the sensors and relays work together. -
Page 24: Computer Interface: Programming And Auditing
Q4 CONTROLLER II Operation and Maintenance Manual 8. Computer Interface: Programming and Auditing NOTE: WHEN PROGRAMMING THE CONTROLLER WITH A LAPTOP ENSURE THAT THE LAPTOP IS NOT CONNECTED TO ANY POWER SOURCE. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT WITH DAMAGES TO THE CONTROLLER AND OTHER DEVICES CONNECTED TO IT. -
Page 25: Troubleshooting
Q4 CONTROLLER II Operation and Maintenance Manual 9. Troubleshooting Q4 Controller has advanced features and functions. Before assuming that unexpected behavior is caused by a system defect or breakdown, the operator should use this manual to become thoroughly familiar with the controller operation. This troubleshooting guide is intended as an aid in identifying the cause of unexpected behavior and determining whether the behavior is due to normal operation or an internal or external problem. -
Page 26: Warranty Statement
QEL shall not be responsible for any liability arising from auxiliary interfaced equipment nor any damage resulting from the installation or operation of this equipment. QEL’s total liability is contained as above with no other liability expressed or implied as the purchaser is entirely responsible for installation and maintenance of systems.
