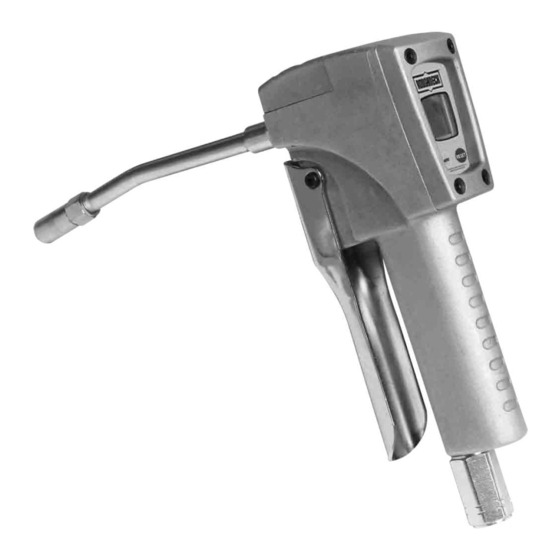

Digital grease control valve

Advertisement

Quick Links

DIGITAL GREASE CONTROL VALVE
OWNER'S MANUAL
WARNING: Read carefully and understand all
INSTRUCTIONS before operating. Failure to
follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item# 27893
DIGITAL GREASE CONTROL VALVE OWNER'S MANUAL
Thank you very much for choosing a Roughneck™ Product! For future reference, please
complete the owner's record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
This machine is designed for certain applications only. The distributor cannot be responsible for
issues arising from modification. We strongly recommend this machine is not modified and/or
used for any application other than that for which it was designed. If you have any questions
relative to a particular application, DO NOT use the machine until you have first contacted
distributor to determine if it can or should be performed on the product.
For technical questions, please call 1-800-222-5381.
WARNING
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the
safety rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.

INTENDED USE

This digital control valve is designed pump greases only.

TECHNICAL SPECIFICATIONS

Model
27893
Inlet connection
1/4in.
Max. working pressure
8700 PSI
Precision
±2%
Power source
2*AA (1.5V) batteries

GENERAL SAFETY REGULATIONS

WARNING:
Read and understand all instructions.
WARNING:
The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could occur. It must be under-
stood by the operator that common sense and caution are factors that cannot be built into this
product, but must be supplied by the operator.
1. Keep the work area clean and dry. Damp or wet work areas can result in injury.
2. Keep children away from work area. Do not allow children to handle this product.
3. Store idle equipment. When not in use, tools and equipment should be stored in a dry location
to inhibit rust. Always lock up tools and equipment, and keep out of reach of children.
4. Use the right tool for the job. Do not attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this pump was designed. It will
do the job better and more safely at the capacity for which it was intended. Do not modify this
pump, and do not use this pump for a purpose for which it was not intended.
5. Check for damaged parts. Before using this product, carefully check that it will operate
properly and perform its intended function. Check for damaged parts and any other conditions
that may affect the operation of this product. Replace damaged or worn parts immediately.
6. Do not overreach. Keep proper footing and balance at all times to prevent tripping, falling,back
injury, etc.
1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 27893 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Roughneck 27893

  • Page 1 DIGITAL GREASE CONTROL VALVE OWNER’S MANUAL Thank you very much for choosing a Roughneck™ Product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it.
  • Page 2 DIGITAL GREASE CONTROL VALVE OWNER’S MANUAL DIGITAL GREASE CONTROL VALVE OWNER’S MANUAL 7. DO NOT use the equipment when tired or under the influence of drugs, alcohol, or medication. 4. FIRE AND EXPLOSION HAZARD: Improper grounding, poor ventilation, open flames or sparks A moment of inattention while operating this equipment may result in serious personal injury.
  • Page 3 DIGITAL GREASE CONTROL VALVE OWNER’S MANUAL DIGITAL GREASE CONTROL VALVE OWNER’S MANUAL 2. INSTALLATION PROCESS (2) Clean the obstruction in the grease system, when any of the following cases occurs: ①. Problem on control valve, flexible hose, rigid tube or manual/auto tip. WARNING: To reduce the risk of serious injury, the pressure relief should be done very ②.
  • Page 4 DIGITAL GREASE CONTROL VALVE OWNER’S MANUAL DIGITAL GREASE CONTROL VALVE OWNER’S MANUAL 5 OPERATION TROUBLE SHOOTING WARNING: WARNING: Follow the instructions in PRESSURE RELIEF PROCEDURE before each Relieve pressure before you check or service any system equipment. operation. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION WARNING: To reduce the chance of serious bodily injury, NEVER work with pressure...
  • Page 5 DIGITAL GREASE CONTROL VALVE OWNER’S MANUAL DIGITAL GREASE CONTROL VALVE OWNER’S MANUAL Transportation When the control valve is in transit, do not exposure the control valves with direct sunlight and avoid rain, falling, erosive substance, etc. Storage ①. Storage temperature: From +14˚F to +104˚F ②.
  • Page 6 DIGITAL GREASE CONTROL VALVE OWNER’S MANUAL WARRANTY One-year limited warranty Distributed by Northern Tool + Equipment Co., Inc. Burnsville, MN 55306 NorthernTool.com Made in China...
