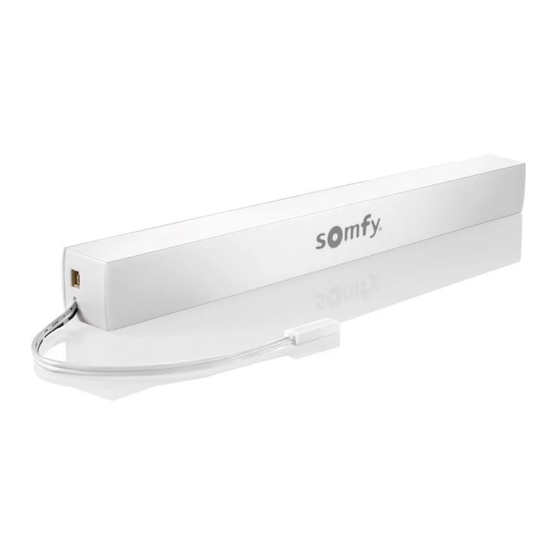

SOMFY 9021217 Quick Manual
External li-ion rechargeable battery pack
Hide thumbs
Also See for 9021217:
- Instructions manual (56 pages) ,
- Instructions (4 pages) ,
- Manual (3 pages)
Advertisement
Available languages
Available languages
To avoid errors and save valuable time, please read these instructions before installing your external rechargeable battery pack.
Thank you for purchasing an External Rechargeable Li-ion Battery Pack. All of the required installation components are enclosed in your package along
with these instructions. Please thoroughly review these instruction before beginning the installation.
• Be certain you have the correct Somfy plug-in charger for your battery pack (see Ref/fig below #9025166)
• Battery should be charged completely prior to installation.
• Ensure you comply with the recharging instructions.
• The optimum recharging temperature is between 32°F and 113°F.
• Do not disassemble or alter the battery.
• Must only be used with Somfy External Battery WireFree motors (refer to the motor instructions for programing).
• Do not use or install this product outdoors.
• Product must never be dropped, immersed in water or exposed to flammable materials.
• Battery pack should always be replaced with Somfy certified replacement.
External Li-ion Rechargeable Battery Pack #9021217 items include:
Accessories:
Charger with 6ft Cable
#9025166
A) With a wall/ceiling bracket.
B) With a headrail mounting bracket.
www.somfysystems.com
Somfy
External Li-ion Rechargeable Battery Pack
®
GETTING STARTED
1 Battery
8" Charger External Cable
#9021131
(Wood & Fauxwood Blinds Only)
QUICK GUIDE
(1 Pair) of Wall/Ceiling Mount Brackets
(1 Pair) of Headrail Mount Brackets
(1 Pair) of screws and mounting anchors
94.5" Charger Extension Cable
#9021016
Mounting Methods
P-0060CBG
Motor Extension Cable
10" - #9018623
48" - #9016736
96" - #9018624
Copyright © Somfy SAS 8/2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SOMFY 9021217
Summary of Contents for SOMFY 9021217
- Page 1 Thank you for purchasing an External Rechargeable Li-ion Battery Pack. All of the required installation components are enclosed in your package along with these instructions. Please thoroughly review these instruction before beginning the installation. • Be certain you have the correct Somfy plug-in charger for your battery pack (see Ref/fig below #9025166) • Battery should be charged completely prior to installation.
- Page 2 Charging Li-ion Battery Pack Note: When using tubular motors with LED indicator on the motorhead LED Charging Port will slowly blink (red) when battery requires charging. Connection to Motor STEP 1 STEP 2 If battery pack charging port is accessible simply plug charger into Disconnect battery pack cable connector from motor cable connector, battery pack charging port and skip to STEP 4.
- Page 3 • Ne démontez pas et ne modifiez pas la batterie. • Ne doit être utilisé qu’avec les moteurs Somfy External Battery WireFree (se référer à la notice moteur pour la programmation). • N’utilisez pas et n’installez pas ce produit à l’extérieur.
- Page 4 Charger la pile Li-on REMARQUE: Lors de l’utilisation de moteurs tubulaires avec indicateur LED Port de chargement la LED de la tête de moteur clignote lentement (rouge) lorsque la batterie doit Lien au moteur être rechargée. ÉTAPE 1 ÉTAPE 2 Si le port de charge de la batterie est accessible, branchez simplement le Débranchez le connecteur du câble du bloc-batterie du connecteur du chargeur dans le port de charge de la batterie (voir fig.1) et passez à...
