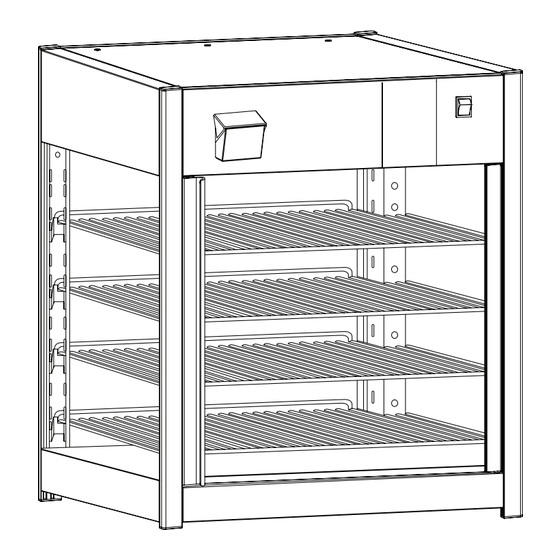

- Page 1 USER MANUAL 18" Humidified Rotating & Non-Rotating Pizza/Pretzel Warmers RETAIN THIS MANUAL FOR FUTURE REFERENCE. UNIT MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES. Models: 423PDW18D1, 423PDW18D2, 423PDW18D1P, 423PDW18D2P, 423PDW18D1S, 423PDW18D2S 10/2021...
-
Page 2: Table Of Contents
USER MANUAL Table of Contents Owner's Information ..........................3 Safety Warnings ............................. 4 Specifications ............................6 Control Panel ............................6 Operating Instructions ..........................7 General Cleaning ............................. 9 Wiring Diagrams ........................... 11 Troubleshooting ............................ 12 Warranty ............................... 13... -
Page 3: Owner's Information
An example of the serial plate(s) for these units are included below for reference. Model No. Serial No. Date of Purchase: Serial Plate Example: ITEM #: 423PDW18D1 MADE IN CHINA MANUFACTURER MODEL #: DESCRIPTION: ROTATING PIZZA WARMER 18", SINGLE DOOR VOLTAGE: 120V • WATTAGE: 1500W AMPERAGE: 13.1A • FREQUENCY: 60Hz SERIAL #: WARNING! Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. -
Page 4: Safety Warnings
SAFETY WARNINGS ServIt Humidified Pizza/Pretzel Warmers are designed, built, and sold for commercial use and should be operated by trained personnel only. Clearly post all CAUTIONS, WARNINGS, and OPERATING INSTRUCTIONS near each unit to insure proper operation and to reduce the chance of personal injury and/or equipment damage. - Page 5 USER MANUAL ELECTRIC SHOCK HAZARD: • Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.
-
Page 6: Specifications
Maximum Includes Item # # of Doors # of Shelves Rotating Voltage Wattage Pizza Size Pretzel Rack 18" Pizza Warmers, Rotating 423PDW18D1 18" 120V 1500W 423PDW18D2 18" 120V 1500W 18" Pizza/Pretzel Warmers, Rotating 423PDW18D1P 18" 120V... -
Page 7: Operating Instructions
USER MANUAL OPERATING INSTRUCTIONS General Information: • Always clean equipment thoroughly before first use. (See general cleaning instructions). • Check rating label for your model designation and electrical rating. • For best results, use stainless steel countertops. WARNING: ELECTRICAL SHOCK HAZARD. FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL COULD RESULT IN SERIOUS INJURY OR DEATH. - Page 8 USER MANUAL 4. Set the humidity parameters as required (See humidity settings instruction). 5. Set the temperature parameters as required (see temperature settings instruction). 6. Allow the unit 30 minutes to preheat to the desired temperature and humidity levels. NOTE: A fully filled water tank can work continuously for 3-6 hours. The working time depends on different parameters, food type, frequency of door openings, as well as other factors.
-
Page 9: General Cleaning
USER MANUAL Recommended Settings Chart: Food Product Temperature Humidity Max Holding Time (hours) Rolls, Hard 160-185°F Rolls, Soft 150-175°F Pies, Desserts 160-185°F Pizza, Thick Crust 170-185°F Pizza, Thin Crust 165-180°F Pretzels 135-150°F Sandwiches, Wrapped 165-180°F Chicken, Roasted 165-180°F Chicken, Fried 165-180°F Hot Dogs 160-185°F... - Page 10 USER MANUAL Clutch Cleaning and Installation of Rotary Shelves: Bolt 1. Turn off the unit and unplug it, allow the unit up to 30 minutes to cool down. NOTE: Opening the glass door(s) can help speed up the cooldown process. 2.
-
Page 11: Wiring Diagrams
USER MANUAL WIRING DIAGRAMS Rotating Models Only: Non-Rotating Models Only:... -
Page 12: Troubleshooting
USER MANUAL TROUBLESHOOTING Issue Reason Solution Inspect power source, ensure power cord is Unit is not plugged in No lighting in the interior undamaged of the cabinet LED light failure Replace LED lights Motor damage Replace motor Rotating display has stopped Close door(s), check magnetic door(s) rotating Door(s) not completely closed...
