Summary of Contents for Evolveo EasyPhone FP
- Page 1 MANUAL MODEL VERSION / DATE EasyPhone FP l. / 20.10.2021...
-
Page 2: Table Of Contents
CONTENTS PHONE DESCRIPTION ............... 3 Phone status icons: ..............8 Putting the phone in operation ........... 10 Charging the battery..............11 Turning phone on/off ..............11 Call ..................... 11 MENU ..................12 PHONEBOOK ................12 PHOTO CONTACTS ..............14 MESSAGES ................14 CALL HISTORY ................. -
Page 3: Phone Description

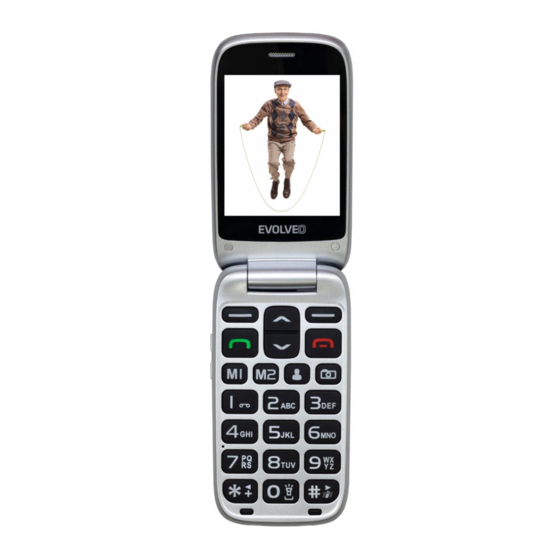

PHONE DESCRIPTION... - Page 5 Volume Speed Dial Settings Camera Button * / Left Flashlight / Flashlight Off Flash Button SOS Button Button # / Right Loudspeaker Photo Contacts Earphone Camera Connector Earphone Turning ON/OFF Left Function Right Function Button (LB) / Button (RB) Menu Call Button Up / Down...
- Page 6 FUNCTION BUTTON By pressing the button, you Left function enter the Menu. Press the button (LB) / button again to run the Menu (8) displayed function. Push this button to commence a call to the selected phone Call button number. Press to accept incoming calls.
- Page 7 the standby mode. Press this button to hang up. Press to scroll through the list of functions. In standby mode, press the Up/Down "Down" button to enter SMS button (18) and press the "Up" button to call up the Shortcuts function. In "FM radio"...
-
Page 8: Phone Status Icons
button Hold down the button to turn Flashlight the flashlight on/off (12) Press to change the text input method. Ringtone profile Button changes (long press). In Right (13) selected functions, it is used for shifting right. Volume button (1): Adjust the Side volume during a call, when button... - Page 9 Connected earphones GPRS data transmission Missed call Unread SMS message Full capacity of SMS messages Full capacity of MMS messages Unread MMS message USB cable connected...
-
Page 10: Putting The Phone In Operation
Activated Roaming GMS signal strength Battery charge status Only vibrations Vibrations and ringtone on First vibrations and than ringtone Putting the phone in operation Insert your fingernail into the slot under the back cover of the phone and remove the cover. Insert the SIM card into the SIM card slot and eventually the memory card, if purchased, to the TF slot. -
Page 11: Charging The Battery
Replace the battery cover. Charging the battery Connect the charger to the USB connector. or put the phone in the charging cradle. The charging will start automatically. The phone can be charged both on and off The battery charge status is indicated on the phone screen. -
Page 12: Menu
MENU To enter, press the left function button (8). PHONEBOOK Add new contact Select Menu/Phonebook and press LB (8), or press the right function button RB (17) Names in the standby mode. Using the Up/Down button (18), select Add New Record and confirm by pressing LB (8). - Page 13 Call – makes a call to a selected contact Edit – allows you to edit the contact Delete – removes selected contact Copy – allows you to copy contacts from SIM to phone memory and vice versa and import and export contacts. Select more –...
-
Page 14: Photo Contacts
number. PHOTO CONTACTS To eight contacts, you can add a photo of the called person and use speed dial for calling them. Add new photo contact In the standby mode, select the Photo Contacts button (14). Select one out of eight contacts, and select Edit by pressing LB (8). -
Page 15: Call History
Setting the operator messages – special setting, requires operator’s support SMS templates – a default list of messages Settings – allows you to set preferred storage, memory status, etc. Write message Select Menu/Messages/New. Enter message text. Using the # button (13) you can switch between lowercase/uppercase/numbers, and * button (11) can be used to enter special symbols. - Page 16 Using Up/Down buttons (18), turn the radio on/off. Using Left (11) / Right (13) buttons, shift the frequencies. Using the LF button (8), you display the following options: Station list: displays a list of manually or automatically searched stations. Manual insertion: You can manually enter the station frequency.
-
Page 17: User Profiles
enter the menu where images can be viewed or camera settings can be changed. 5. Photo browser Select Menu/Multimedia/Photo Browser. Select the picture and press LB (8) to display, send, re- name, delete, etc. the picture. USER PROFILES Select Menu/User Profiles. You can select from four profiles: Main, Silent, Meeting, Outdoors. - Page 18 information shown on the display Automatic time setting – set to On or Off LCD/key backlight – setting the time after which the LCD and keypad go out, setting the LCD brightness Setting wizard – setting of time, date and ringtone using the quick wizard 2.
- Page 19 Getting the GPS position From a smartphone (the number must be in the GPS number list), send an SMS with the form GPS or LOC to EasyPhone FP device. In a few minutes, you receive an SMS containing the phone location reference.
-
Page 20: Organizer
After entering the password "0000", the phone will be reset. ORGANIZER 1. Calendar You can view the date, add an appointment, delete an appointment, etc. in the calendar. 2. Calculator This feature offers the usual calculator functions, including plus, minus, multiplication, and division. 3. - Page 21 SOS function: activate by turning on Fall detection: After turning on this function, if the phone or the user fall down, the SOS function gets activated. The function can be manually deactivated within 20 seconds using the On/Off button (16). SOS alarm tone: Tone activation during an SOS alarm Delayed calling: Time after which the phone...
-
Page 22: Services
addressees replies to the call or if none of the addressees replies after the third dial-up. Important notice: The phone is equipped with the function of sending the position of the phone via an SOS message after the SOS alarm is triggered. - Page 23 You can turn on the feature and then search for another Bluetooth device, pair your phone with another device and use it together. You can also set up external storage, access to audio files, etc. via Bluetooth. Select Menu/Services/Bluetooth. 2. Services Services provided by the mobile operator Power adapter specifications Name, address and...
- Page 24 Road, XiXiang Town, BaoAn District, ShenZhen City, China Model identification TC06 mark, AC adapter Supply voltage 100 - 240 V~ Input AC frequency 50/60 Hz Output voltage Output current 0.55 A Output power 2.75 W Average activity in 70.69% active mode Efficiency at low load 60% Energy consumption 0.0077 W...
-
Page 25: Warranty And Post-Warranty Service
WARRANTY AND POST-WARRANTY SERVICE The warranty DOES NOT APPLY to: • Installation of other firmware than the originally installed in the EVOLVEO phone. • Electromechanical or mechanical damage to the phone caused by improper use (e.g. cracked display, cracked front or back cover of the phone, damaged micro-USB power connector, SIM card slot, micro-SDHC card slot, headphone jack, etc.) - Page 26 These products must not be disposed as unsorted municipal waste. DECLARATION OF COMPLIANCE Abacus Electric, s.r.o. hereby declares that the EVOLVEO EasyPhone FP complies with the requirements of standards and regulations relevant for this type of device. For the full wording of the Declaration of...
- Page 27 3rd Floor, A Building, Dahong Technology Park, Baihua Community 1st Industrial Zone, No. B-10, Guangming New District, Guangming Street, Shenzhen, Guangdong. Made in China Copyright © Abacus Electric, s.r.o. www.evolveo.com www.facebook.com/EvolveoCZ All rights reserved. Product appearance and technical specifications are subject to changes without prior notice.
