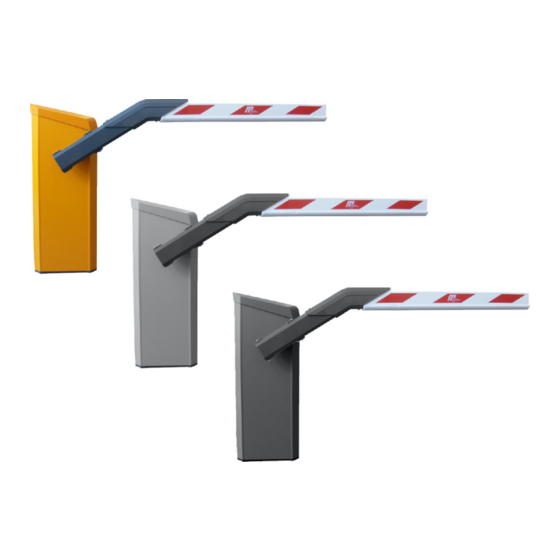

Operating Instructions
Barrier
TM
MHTM
MicroDrive
Doc-ID: 5815,5001EN
Version: 05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHTM and is the answer not in the manual?

Questions and answers

Related Manuals for Magnetic Autocontrol MHTM

Summary of Contents for Magnetic Autocontrol MHTM

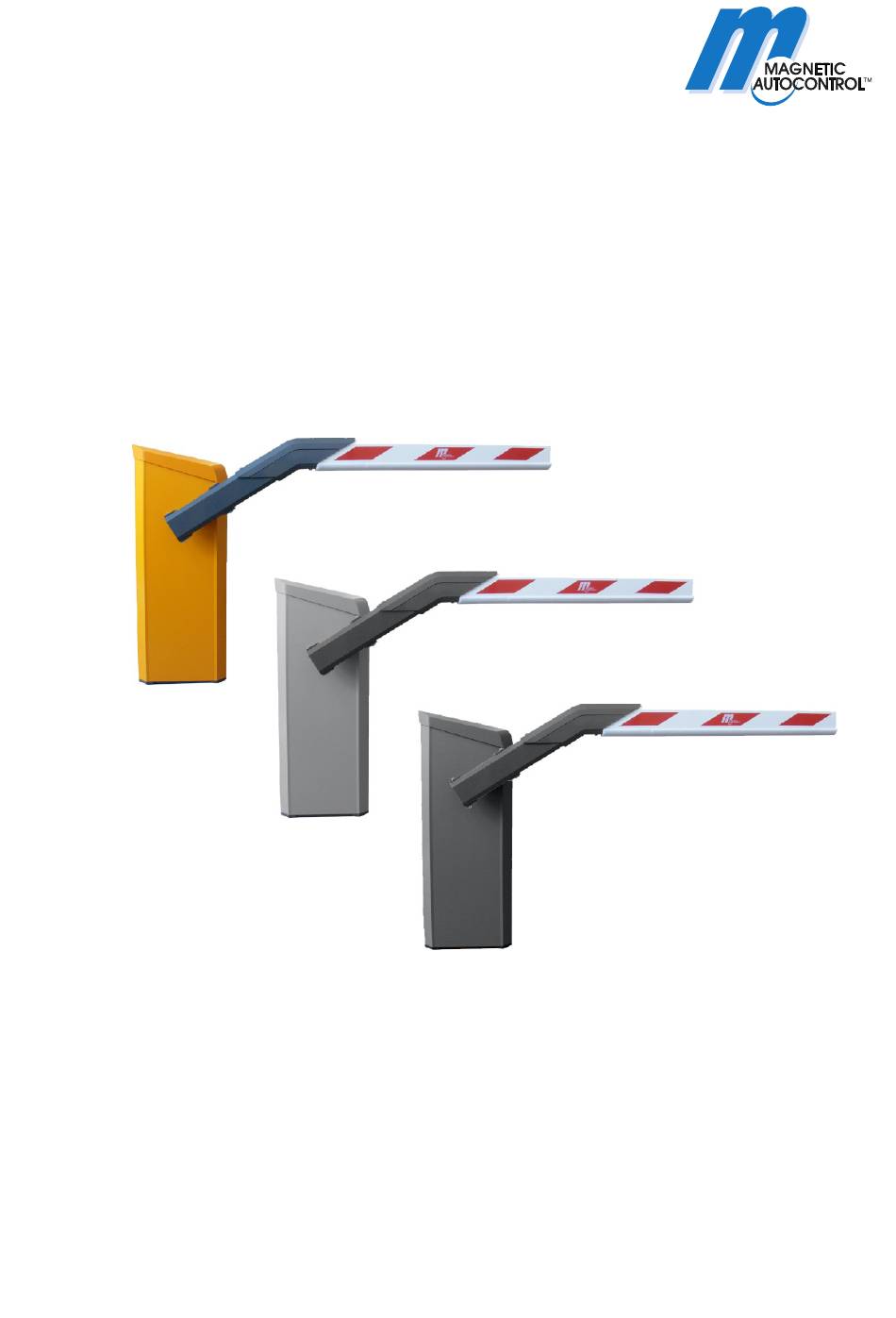

  • Page 1 Operating Instructions Barrier MHTM MicroDrive Doc-ID: 5815,5001EN Version: 05...
  • Page 2 Translation of the Original Operating Instructions MAGNETIC Autocontrol GmbH Grienmatt 20 79650 Schopfheim Germany Tel.: +49 (0)7622 695 5 Fax.: +49 (0)7622 695 602 E-Mail: info@ac-magnetic.com Internet: www.ac-magnetic.com 5815,5001EN / Version 05...

  • Page 3: Table Of Contents

    Barrier MHTM MicroDrive Access and Parking Contents Contents General ..................7 Information regarding the operating instructions ... 7 Pictogram explanation ........... 8 Limitation of liability ............9 Copyright protection ............9 Scope of delivery ............10 Warranty ..............10 Disclaimer ..............10 Customer service ............
  • Page 4 Barrier MHTM MicroDrive Access and Parking Contents Access Pro H .............. 30 4.2.1 Dimensions and weight ....... 30 4.2.2 Electrical connection ........31 4.2.3 Operating conditions ........31 4.2.4 Maximum permissible wind load classes EN 12424 ............. 32 4.2.5 Operating times ........... 32 Parking ................
  • Page 5 Barrier MHTM MicroDrive Access and Parking Contents 8.4.4 Installing induction loops in bitumen, asphalt, or concrete ........58 8.4.5 Installing induction loops under interlocking stone paving ..........60 Unpacking ..............61 Open barrier housing ........... 61 Assemble housing ............62 Assemble nesting post or light barrier post ....
  • Page 6 Barrier MHTM MicroDrive Access and Parking Contents 10.4 Opening and closing the barrier manually ....99 10.5 Putting the barrier temporarily out of operation ..100 11 Cleaning and maintenance ..........101 11.1 Safety ..............101 11.2 Cleaning ..............102 11.3 Cleaning from the outside .........

  • Page 7: General

    Parameterisation of the barrier NOTE! control unit MGC and MGC Pro For parameterisation of the control units MGC and MGC Pro, see separate document "Description of control units MGC and MGC Pro for MHTM MicroDrive barriers (Doc-ID: 5816,0006)". 5815,5001EN / Version 05...

  • Page 8: Pictogram Explanation

    Barrier MHTM MicroDrive Access and Parking General Pictogram explanation Warning notes Warning notes are characterised by pictograms in these operating instructions. The warning notes are followed by signal words expressing the scale of the hazard. It is absolutely essential to observe the notes and to proceed with caution in order to prevent accidents as well as bodily injuries and property damage.

  • Page 9: Limitation Of Liability

    Barrier MHTM MicroDrive Access and Parking General Limitation of liability All specifications and notes in these operating instructions were compiled with consideration to the valid standards and regulations, the state of the art as well as to our long-standing knowledge and experience.

  • Page 10: Scope Of Delivery

    Barrier MHTM MicroDrive Access and Parking General Scope of delivery The scope of delivery comprises: 1 barrier housing  incl. drive unit and control  1 Barrier  2 Attachment profiles  2 Prohibition sign stickers  Edge protection Options if applicable ...

  • Page 11: Ec-Declarations Of Conformity

    Barrier MHTM MicroDrive Access and Parking General EC-Declarations of conformity EC-Declarations of conformity (pursuant to EC Machinery Directive 2006/42/EC, Annex II) refer to page 125. 1.10 Performance declaration For the performance declaration according to construction product regulation no. 305/2011, see enclosed data carriers.

  • Page 12: Safety

    MicroDrive Access and Parking Safety Safety Intended use of the barriers The MAGNETIC MHTM MicroDrive barriers are exclusively intended for controlling access to and exit of certain road vehicles in or from certain areas. The barrier is either controlled by a person in manual operating modes or by access control systems in automatic operating modes and monitored by induction loops and/or safety light barriers.

  • Page 13: Barrier, Pedestrian Traffic Not Impossible

    All uses not described as intended use are prohibited. No accessories must be connected or installed if they are not specified expressly according to quantity and characteristics and approved by Magnetic Autocontrol. WARNING Non-intended use is dangerous! Every non-intended use can lead to dangerous situations.

  • Page 14: Operator's Responsibility

    Barrier MHTM MicroDrive Access and Parking Safety Operator's responsibility The operator must comply with the statutory obligations regarding work safety. In addition to the work safety notes in these operating instructions, the safety, accident prevention and environmental provisions applicable for the area the barrier is used in must be complied with.

  • Page 15: Specialists And Operating Personnel

    Barrier MHTM MicroDrive Access and Parking Safety Specialists and operating personnel 2.4.1 Requirements WARNING Risk of injury in case of inadequate qualification! Improper handling can lead to considerable bodily injuries and property damage. – Have any activities only carried out by the individuals designated for that purpose.

  • Page 16: Personal Protective Equipment

    Observe the safety notes listed here and the warning notes mentioned in the other chapters of these instructions to reduce health hazards and to avoid dangerous situations. 2.6.1 Danger symbols on the MHTM MicroDrive barrier The relevant dangerous areas on the barriers can be identified by the following pictograms:...

  • Page 17: Hazard Notes And Occupational Safety

    Barrier MHTM MicroDrive Access and Parking Safety Hot surfaces CAUTION Danger of burns! … indicates the presence of a hot surface. Non- observance of the safety instructions can lead to minor injuries. This pictogram is fixed on the following component: –...
  • Page 18 Barrier MHTM MicroDrive Access and Parking Safety Electric voltage – DANGER missing safety installations Mortal danger by electric voltage! The safety installations that are required according to regional and local regulations must be provided by the customer. Usually these are: –...
  • Page 19 CAUTION the barrier – Pedestrian traffic possible Danger from entering the danger area! The MAGNETIC MHTM MicroDrive barriers are intended exclusively for closing off passages for motor vehicles and trucks. For vehicles that cannot be detected by induction loops, additional safety measures must be provided.
  • Page 20 Barrier MHTM MicroDrive Access and Parking Safety Closing boom WARNING Danger from closing boom! A closing boom may cause severe or lethal injury to persons, bicyclers, cabriolet drivers and motorcycle drivers! – Install safety installations, such as a MAGNETIC safety light barrier as surveillance device.
  • Page 21 Barrier MHTM MicroDrive Access and Parking Safety Falling components WARNING Risk of injury from falling components! Falling components such as the barrier boom can cause severe injury! – Only place the barrier boom horizontally. – Only install the barrier boom when there is no or little wind.
  • Page 22 Barrier MHTM MicroDrive Access and Parking Safety Danger of crushing, WARNING barrier boom and flange Danger of crushing between barrier boom and barrier housing! Moving parts may cause serious crushing injuries! – Only skilled personnel are allowed work on the barrier housing and barrier boom.

  • Page 23: Danger Area

    Barrier MHTM MicroDrive Access and Parking Safety Danger area Danger of crushing and shearing, WARNING barrier boom Danger of crushing and shearing if the safety distance between the barrier boom and other objects is too low! A closing or opening barrier boom can cause...

  • Page 24: Identification

    Barrier MHTM MicroDrive Access and Parking Identification Identification Type plate The type plate is provided inside at the barrier housing, next to the hood attachment. Magnetic Autocontrol GmbH D-79650 Schopfheim S-Nr. Made in Germany Fig. 2: Type plate Type code...

  • Page 25: Type Code

    Barrier MHTM MicroDrive Access and Parking Identification Type code – Position Description 1 – 13 Product group: ACCESS Magnetic.Acess ACCESS-L Magnetic.Access long ACCESS PRO Magnetic.Access Pro ACCESS PRO-L Magnetic.Access Pro long ACCESS PRO-H Magnetic.Access Pro high PARKING Magnetic.Parking PARING PRO Magnetic.Parking Pro...

  • Page 26: Overview: Barrier Types, Barrier Booms, Flanges And Control Units

    Barrier MHTM MicroDrive Access and Parking Identification Overview: Barrier types, barrier booms, flanges and control units The following table shows the essential features of the different barrier types. Barrier type Barrier boom Flange Control Unit Parking VarioBoom Vario flange Parking Pro...

  • Page 27: Technical Data

    Barrier MHTM MicroDrive Access and Parking Technical data Technical data Access 4.1.1 Dimensions and weight min. 500 3500 / 5000 / 6000 min. 500 min. 800 VarioBoom Fig. 3: Dimensions barrier system and barrier boom profile – "Access" series (dimensions in mm) Object such as wall, building, etc.

  • Page 28: Electrical Connection

    Barrier MHTM MicroDrive Access and Parking Technical data Designation Unit Access Access-L Access Pro Access Pro L Lane width 3500 5000 3500 6000 Barrier housing → See page 27, Fig. 3. (width x depth x height) (315 x 360 x 915)

  • Page 29: Maximum Permissible Wind Load Classes En 12424

    Barrier MHTM MicroDrive Access and Parking Technical data 4.1.4 Maximum permissible wind load classes EN 12424 Designation Unit Access Access-L Access Pro Access Pro L Max. permissible wind – load class EN 12424 Wind speed km/h Wind speed 1) Applies to maximum lane widths, no attachments. The classification applies only to closed barriers and does not provide any information on the operating behaviour under wind load.

  • Page 30: Access Pro H

    Barrier MHTM MicroDrive Access and Parking Technical data Access Pro H 4.2.1 Dimensions and weight min. 500 3500 / 4500 / 5000 / 6000 min. 500 min. 800 MicroBoom Fig. 4: Dimensions barrier system and barrier boom profile – "Access Pro H" series (dimensions in mm) Object such as wall, building, etc.

  • Page 31: Electrical Connection

    Barrier MHTM MicroDrive Access and Parking Technical data Designation Unit Access Pro H 3.5 m 4.5 m 5.0 m 6.0 m Lane width 3500 4500 5000 6000 Barrier housing → See page 30, Fig. 4. (width x depth x height)

  • Page 32: Maximum Permissible Wind Load Classes En 12424

    Barrier MHTM MicroDrive Access and Parking Technical data 4.2.4 Maximum permissible wind load classes EN 12424 Designation Unit Access Pro H 3.5 m 4.5 m 5.0 m 6.0 m Max. permissible wind – load class EN 12424 Wind speed km/h Wind speed 1) Applies to maximum lane widths, no attachments.

  • Page 33: Parking

    Barrier MHTM MicroDrive Access and Parking Technical data Parking 4.3.1 Dimensions and weight min. 500 3500 min. 500 min. 800 VarioBoom Fig. 5: Dimensions barrier system and barrier boom profile – "Parking" series (dimensions in mm) Object such as wall, building, etc.

  • Page 34: Electrical Connection

    Barrier MHTM MicroDrive Access and Parking Technical data Designation Unit Parking Parking Pro Lane width 3500 3500 Barrier housing → See page 33, Fig. 5. (width x depth x height) (315 x 360 x 915) Barrier housing weight Table 12: Dimensions and weight – "Parking" series 4.3.2...

  • Page 35: Maximum Permissible Wind Load Classes En 12424

    Barrier MHTM MicroDrive Access and Parking Technical data 4.3.4 Maximum permissible wind load classes EN 12424 Designation Unit Parking Parking Pro Max. permissible wind – load class EN 12424 Wind speed km/h Wind speed 1) Applies to maximum lane widths, no attachments. The classification applies only to closed barriers and does not provide any information on the operating behaviour under wind load.

  • Page 36: Control Unit

    Barrier MHTM MicroDrive Access and Parking Technical data Control unit Designation Unit (MAGNETIC Gate Controller) Supply voltage V DC Current consumption ─ max. 1 A max. 300 mA + current consumption of the different plug-in modules Power consumption ─ max 24 W.

  • Page 37: Plug-In Module "Detector A-B

    Barrier MHTM MicroDrive Access and Parking Technical data Plug-in module "Detector A–B" Designation Unit Plug-in module "Detector A–B" Current consumption Number of loop detectors ─ 2 (A and B) Inductance range μH 70 to 500 Number of induction loop ─...

  • Page 38: Design And Function

    Barrier MHTM MicroDrive Access and Parking Design and function Design and function Design 5.1.1 Access and Parking Fig. 6: Barrier system design Series "Access" and Series "Parking" Barrier housing VarioBoom (barrier boom) Pendulum support from 3.5 m barrier boom length (accessory)

  • Page 39: Access Pro H

    Barrier MHTM MicroDrive Access and Parking Design and function 5.1.2 Access Pro H Fig. 7: Design barrier Series "Access Pro H" Barrier housing MicroBoom (barrier boom) Pendulum support from 3.5 m barrier boom length (accessory) Nesting post (accessory) Empty conduits for mains cable, control lines and induction loop...

  • Page 40: Function

    Barrier MHTM MicroDrive Access and Parking Design and function Function The barrier consists of a barrier housing with drive system and a barrier boom. The drive system consists of an electric motor, control unit, and the lever system. The lever system locks the barrier boom in both end positions.

  • Page 41: Transport And Storage

    Barrier MHTM MicroDrive Access and Parking Transport and storage Transport and storage Safety notes for transport Improper transport WARNING Danger from improper transport of the barrier boom and housing! The weight of the barrier boom or housing can severely injure a person! –...

  • Page 42: Transport Inspection

    Barrier MHTM MicroDrive Access and Parking Transport and storage Improper transport NOTICE The barrier system can be damaged by improper transport! Substantial material damages can result from improper transport. – Have all transport work performed by specialists only. – When unloading the packages and during in- plant transportation always proceed with greatest care and caution.

  • Page 43: Transport

    Barrier MHTM MicroDrive Access and Parking Transport and storage Transport Barrier housing and barrier boom are delivered separately. The lifting gear must be designed for the weight of the barrier housing and barrier boom. For transport barrier modules refer to the safety notes on page 41, chapter 6.1.

  • Page 44: Design Notes For Induction Loops

    Barrier MHTM MicroDrive Access and Parking Design notes for induction loops Design notes for induction loops → For assembly and inspection, see page 56, chapter 8.4. Please observe following points when dimensioning the induction loops:  Induction loops respond only to metal. The mass is thereby not important, but the size of the loop's surface, which will be covered by the metal part is.
  • Page 45 Barrier MHTM MicroDrive Access and Parking Design notes for induction loops Arrangement passenger car loops – passage with long opening loop min. Fig. 9: Passenger car loops – passage with long opening loop Safety loop Opening loop Barrier Due to a long opening loop vehicles can drive through without needing to stop.
  • Page 46 Barrier MHTM MicroDrive Access and Parking Design notes for induction loops Arrangement of lorry/ ca. 1.00 m ca. 1.00 m ca. 1.50 m 1.00 m 1.00 m passenger car loops ca. 1.00 m ca. 1.50 m ca. 1.00 m Fig. 11: Lorry/passenger car loops Safety loop lorry (inductance "L1")
  • Page 47 Barrier MHTM MicroDrive Access and Parking Design notes for induction loops Arrangement of passenger car and 1,00 m 0,50 m 1,00 m motorcycle loops 2,00 m 1,00 m 0,50 m Fig. 12: Passenger car and motorcycle loops Safety loop passenger car...

  • Page 48: Assembly And Installation

    Barrier MHTM MicroDrive Access and Parking Assembly and installation Assembly and installation Safety → See also safety notes on page 16, chapter 2.6 "Occupational safety and special dangers". General WARNING Danger by inappropriate installation! Inappropriate installation can cause severe injuries! –...

  • Page 49: Required Steps

    Barrier MHTM MicroDrive Access and Parking Assembly and installation Personal protective equipment The following must be worn during all assembly and installation work:  Work clothes  Protective gloves  Safety shoes  Protective helmet. Required steps The following steps are to be completed prior to assembly and installation: ...

  • Page 50: Foundation And Empty Conduits

    Barrier MHTM MicroDrive Access and Parking Assembly and installation Foundation and empty conduits min. 500 min. 500 Fig. 13: Assembly boom system, here illustrated for barrier type "Access/Parking" (dimensions in mm) Object like wall, building, etc. Keep a safety distance of at least 500 mm between the barrier boom and other objects, such as walls, masonry or houses Posts, e.g.

  • Page 51: Foundation And Empty Conduits For The Barrier

    Barrier MHTM MicroDrive Access and Parking Assembly and installation 8.3.1 Foundation and empty conduits for the barrier Assembly site The assembly site must meet the following requirements:  The barrier must not be put up where there is a danger of flooding.
  • Page 52 Barrier MHTM MicroDrive Access and Parking Assembly and installation Laying the foundation, installing empty conduits Fig. 14: Foundation plan (dimensions in mm) Foundation anchor (4 pcs.) Optional when using loop connection; empty conduit for loop connection, diameter: 29 mm Empty conduit for induction loop, diameter: 29 mm...
  • Page 53 Barrier MHTM MicroDrive Access and Parking Assembly and installation Place reinforcement grid pursuant to Fig. 15 in the foundation hole. Place empty conduits pursuant to Fig. 14 in the foundation hole. Close empty conduits to prevent water from entering. Fill concrete foundation pursuant to Fig. 14.

  • Page 54: Foundation And Empty Conduits For Nesting Post Or Light Barrier Post

    Barrier MHTM MicroDrive Access and Parking Assembly and installation 8.3.2 Foundation and empty conduits for nesting post or light barrier post Danger of crushing CAUTION Crushing danger between the fork at the nesting post and the barrier boom! Fingers and hands can be crushed when the barrier boom runs into the nesting post when closing.
  • Page 55 Barrier MHTM MicroDrive Access and Parking Assembly and installation Foundation The foundation must meet the following requirements: → See page 50, Fig. 13 and page 55, Fig. 16.  Have sufficient load-carrying capacity. (concrete foundations: C35/45 XD3 XF2)  Water cement value: 0.5 ...

  • Page 56: Assembly And Installation Of Induction Loops

    Barrier MHTM MicroDrive Access and Parking Assembly and installation Assembly and installation of induction loops Depending on the application safety installations must be installed on site. Induction loops, light barriers, etc. can be used as safety installations. The safety installations must ensure that the barrier closes only after the vehicle has passed through.
  • Page 57 Barrier MHTM MicroDrive Access and Parking Assembly and installation Please observe following points when installing the induction loop: Loop geometry and clearances  Install the loop symmetrically to the barrier boom. Please make sure that the barrier boom is attached to the side of the barrier housing.

  • Page 58: Induction Loops

    Barrier MHTM MicroDrive Access and Parking Assembly and installation 8.4.2 Induction loops The induction loops are available as ready assembled cables in various lengths from MAGNETIC. Alternatively a loop can be manufactured from single wire. The following requirements must be fulfilled: ...
  • Page 59 Barrier MHTM MicroDrive Access and Parking Assembly and installation Lay the loop carefully into the groove and push it down by means of a blunt object, such as a piece of wood. The insulation must by no means be damaged.

  • Page 60: Installing Induction Loops Under Interlocking Stone Paving

    Barrier MHTM MicroDrive Access and Parking Assembly and installation 8.4.5 Installing induction loops under interlocking stone paving S0105a Fig. 21: Installing an induction loop under interlocking stone paving (dimensions in mm) Barrier housing Paving Loop cable Sand bed Substructure When installing induction loops under interlocking stone paving,...

  • Page 61: Unpacking

    Barrier MHTM MicroDrive Access and Parking Assembly and installation Unpacking The individual packages are packed according to the expected transport conditions. Only environment-friendly materials have been used for the packaging. The packaging should protect the individual components against transport damages, corrosion, etc up to the assembly. Therefore do not destroy the packaging and remove only directly before assembly.

  • Page 62: Assemble Housing

    Barrier MHTM MicroDrive Access and Parking Assembly and installation Assemble housing The barrier housing is attached by 4 foundation anchors via 2 attachment profiles. The attachment profiles are included in delivery. You can order a mounting set consisting of foundation anchor, washers, spring rings and hexagon nuts from MAGNETIC Autocontrol GmbH as accessories.
  • Page 63 Barrier MHTM MicroDrive Access and Parking Assembly and installation Assemble housing The foundation must have cured. Drill holes for the foundation anchors according to the foundation plan, page 52, Fig. 14. In compliance with the indicated sizes.  Drill-hole distance: 180 mm, square alignment ...

  • Page 64: Assemble Nesting Post Or Light Barrier Post

    You can order a mounting set consisting of foundation anchor, washers, spring rings and hexagon nuts from MAGNETIC Autocontrol GmbH as accessories. Requirements mounting material If you are using your own mounting material, it must meet the following requirements: ...

  • Page 65: Assemble Safety Light Barrier

    Barrier MHTM MicroDrive Access and Parking Assembly and installation Assemble safety light barrier Only MAGNETIC safety light barriers must be used. 8.9.1 Assemble transmitter Ø 6 Ø 6 Ø 6 Ø 6 Ø 13 Ø 13 Fig. 23: Assemble of the transmitter’s light barrier housing...

  • Page 66: Assemble Receiver

    Barrier MHTM MicroDrive Access and Parking Assembly and installation 8.9.2 Assemble receiver Fig. 24: Assemble the receiver's light barrier housing on the post (dimensions in mm) Light barrier post Nesting post Light barrier housing Drill holes for blind rivet nut...

  • Page 67: Assemble Barrier Boom Type "Varioboom

    Barrier MHTM MicroDrive Access and Parking Assembly and installation 8.10 Assemble barrier boom type "VarioBoom" The barrier boom type "VarioBoom" is delivered in two parts  Install short barrier boom profile with assembled connection plates, half-shells and end-caps.  Long barrier boom profile The mounting material is included in delivery.

  • Page 68: Assembling Flange And Barrier Boom

    Barrier MHTM MicroDrive Access and Parking Assembly and installation The edge protection is included in the delivery loosely in 2 m pieces. If the barrier was ordered with the light strips option, the barrier boom is delivered with the mounted edge protection.
  • Page 69 Barrier MHTM MicroDrive Access and Parking Assembly and installation Assemble flange at barrier boom Remove end-cap from the barrier boom. Fig. 25: Disassemble end-cap. Slide the shorter slot unit and the additional sheet into the groove on the barrier room bottom.
  • Page 70 Barrier MHTM MicroDrive Access and Parking Assembly and installation Install the flange at the barrier boom with the 4 Torx screws. The shorter protrusion of the flange must point towards the barrier boom end. Tighten screws twice in sequence to ensure that all screws are tightened correctly.
  • Page 71 Barrier MHTM MicroDrive Access and Parking Assembly and installation Assemble barrier boom. 10. Push barrier boom with pre-assembled flange onto the flange shaft. Fig. 31: Assemble flange with barrier boom 11. Align barrier boom vertically. 12. Install the flange on the flange shaft using the 4 hexagon socket screws.

  • Page 72: Conversion "Left Version" - "Right Version

    Barrier MHTM MicroDrive Access and Parking Assembly and installation 8.13 Conversion "left version" – "right version" Danger of injury CAUTION Danger of injury! There is a danger of injury when mounting the barrier boom. – Barrier booms as of a length of 4.5 m must be installed by two persons.
  • Page 73 Barrier MHTM MicroDrive Access and Parking Assembly and installation Remove the flange with the barrier boom. Fig. 32: Disassemble flange with barrier boom Move flange shaft Remove the v-ring from the flange shaft. Fig. 33: Remove the v-ring 10. Slightly loosen the two hexagon socket screws 10 AF of the clamping lever at the flange shaft.
  • Page 74 Barrier MHTM MicroDrive Access and Parking Assembly and installation 11. Unhook the balancing springs in the lever system. The balancing springs must be relieved. For this, press a tool straight through the upper tool bore. The lever arm is pressed from the dead point.
  • Page 75 Barrier MHTM MicroDrive Access and Parking Assembly and installation Align barrier boom, switch on 23. Push the barrier into the top-most position. The clamping lever power supply must be at the stop for the position "opening". If required, push straight through the upper tool bore with a tool to press the lever arm from the dead point.

  • Page 76: Check And Set The Balancing Springs In The Lever System

    In the "Power failure" menu, you can set the barrier behaviour in case of voltage failure. The settings in this menu do not influence the settings of the balancing springs. → See separate document "Description of control units MGC and MGC Pro for MHTM MicroDrive barriers". 5815,5001EN / Version 05...

  • Page 77: Setting Balancing Springs

    Barrier MHTM MicroDrive Access and Parking Assembly and installation Fig. 35: Balancing springs in the lever system. Barrier boom Balancing spring Screw with locknuts 8.14.1 Setting balancing springs Check and adjust balancing Check balancing springs with the motor warm from operation.
  • Page 78 Barrier MHTM MicroDrive Access and Parking Assembly and installation Adjust balancing springs: Remove the barrier housing hood. Remove the rear barrier housing door. Adjust springs with a wrench via the screws with locknuts.  The barrier boom lowers: The spring force is too low.

  • Page 79: Overview Table Balancing Springs

    Barrier MHTM MicroDrive Access and Parking Assembly and installation 8.14.2 Overview table balancing springs NOTE! The following overview tables "Balancing springs" do not take into consideration any attachment parts. For barrier booms with attachment parts, the required number of springs may deviate from the number of springs in the overview table.
  • Page 80 Barrier MHTM MicroDrive Access and Parking Assembly and installation The following overview tables apply for barriers with MicroBoom. The strong springs are marked with a yellow dot at the suspension bolt. Overview table balancing springs for barriers with MicroBoom without pendulum support...

  • Page 81: Equipment Plan Balancing Springs

    Barrier MHTM MicroDrive Access and Parking Assembly and installation 8.14.3 Equipment plan balancing springs The balancing springs are aligned as follows for the barriers MAGNETIC MHTM MicroDrive Access and Parking. Fig. 37: Equipment plan balancing springs Front Barrier boom Rear...

  • Page 82: Align Barrier Housing And Post

    Barrier MHTM MicroDrive Access and Parking Assembly and installation 8.15 Align barrier housing and post Falling components WARNING Risk of injury from falling components! Falling components such as the barrier housing can cause severe injury! – When aligning the barrier housing and nesting post, loosen the attachment screws only slightly.

  • Page 83: Set Nesting Post Height

    Barrier MHTM MicroDrive Access and Parking Assembly and installation 8.16 Set nesting post height Danger of crushing CAUTION Crushing danger between the fork at the nesting post and the barrier boom! Fingers and hands can be crushed when the barrier boom runs into the nesting post when closing.

  • Page 84: Stick On Prohibition Signs

    Barrier MHTM MicroDrive Access and Parking Assembly and installation 8.17 Stick on prohibition signs The delivery includes two prohibition signs as stickers. Attach the prohibition signs to the barrier boom according to the following drawing. Fig. 39: Apply prohibition signs, here illustrated for barrier type "Access/Parking"...

  • Page 85: Electrical Connection

    Barrier MHTM MicroDrive Access and Parking Electrical connection Electrical connection Safety → See also safety notes on page 16, chapter 2.6 "Occupational safety and special dangers". Electric voltage DANGER Mortal danger by electric voltage! Touching live parts can be lethal.

  • Page 86: Installing Electrical Protective Devices

    Barrier MHTM MicroDrive Access and Parking Electrical connection Hot surfaces CAUTION Danger of burns! The motor surface may be hot. Touching this hot surface can lead to burns. – Do not touch these hot surfaces. – After switching off the power supply wait some minutes until the motor has cooled down.

  • Page 87: Connecting The Power Cable

    Barrier MHTM MicroDrive Access and Parking Electrical connection Connecting the power cable Electric voltage DANGER Mortal danger by electric shock! If the mains supply is not connected to the terminal clamps correctly, loosens from the connection clamps and touches the housing or door, there is a direct danger to life from electric shock.
  • Page 88 Barrier MHTM MicroDrive Access and Parking Electrical connection Mains supply placement Connect the mains supply with the intended terminal clamps X1: L / N / PE) in the barrier housing according to the following figures. → Refer to "Wiring diagram".

  • Page 89: Connect Customer's Control Lines (Signalling Devices)

    Barrier MHTM MicroDrive Access and Parking Electrical connection Connect customer's control lines (signalling devices) The following connections are available for control and feedback on customer’s side:  8 Digital inputs for controlling the barrier.  4 Digital outputs to feed back information.

  • Page 90: Connecting Safety Devices

    Barrier MHTM MicroDrive Access and Parking Electrical connection 9.4.1 Connecting safety devices As safety devices, you must connect safety loops or safety light barriers to the control unit. Safety loops must only be connected to monitor vehicles. Only MAGNETIC safety light barriers must be used.

  • Page 91: Connecting Safety Loop

    Barrier MHTM MicroDrive Access and Parking Electrical connection 9.4.3 Connecting safety loop The safety loop is connected to the plug-in module "Detector1 (A-B)", clamps A or clamps B. → Refer to "Wiring diagram". The clamp function parameters can be set in the menu "Detector 1 (A-B)"...

  • Page 92: Connect And Test The Safety Light Barriers

    Barrier MHTM MicroDrive Access and Parking Electrical connection 9.4.4 Connect and test the safety light barriers Connect the transmitter and receiver connection lines of the safety Connecting safety light barrier light barriers to clamps X11 and X20. By default, MAGNETIC installs a jumper between terminals X11 OUT and IN.

  • Page 93: Connecting Emergency Opening Contacts

    Barrier MHTM MicroDrive Access and Parking Electrical connection Align receiver with transmitter. If required, hold the included reflective foil in front of the receiver as setting aid. The yellow LED at the receiver lights up when aligned correctly. Align receiver as follows: Slightly loosen the post attachment screws.

  • Page 94: Digital Inputs

    For the remaining barrier types the control unit MGC is installed. Here the inputs are firmly assigned. → For input parameterisation, see separate document "Description of control units MGC and MGC Pro for MHTM MicroDrive barriers". Factory setting Clamp Description Function...

  • Page 95: Digital Outputs And Output Relays

    For the remaining barrier types the control unit MGC is installed. Here the outputs are firmly assigned. → For output parameterisation, see separate document "Description of control units MGC and MGC Pro for MHTM MicroDrive barriers". Factory setting Clamp Description Function...

  • Page 96: Checking The Electrical Connection

    Barrier MHTM MicroDrive Access and Parking Electrical connection Checking the electrical connection The following points have to be checked after the electrical installation of the barrier: Are the following electrical protective devices installed:  lockable 2-pole main switch, circuit breaker and leakage current fault interrupter? ...

  • Page 97: 10 Start-Up And Operation

    Barrier MHTM MicroDrive Access and Parking Start-up and operation 10 Start-up and operation 10.1 Safety → See also safety notes on page 16, chapter 2.6 "Occupational safety and special dangers". General WARNING Danger by inappropriate start-up and operation! Inappropriate start-up and operation can cause severe or lethal injuries.

  • Page 98: Commissioning

    The following inspections must be performed prior to first start-up: first start-up Check programme mode. → See separate document  "Description of control units MGC and MGC Pro for MHTM MicroDrive barriers", chapter "Select programme mode".  Check parameterisation in connection with wiring.
  • Page 99 Depending on the settings of the lever system's balancing spring and the settings in the menu "Power failure", the barrier boom opens or closes. → See separate document "Description of control units MGC and MGC Pro for MHTM MicroDrive barriers", chapter "Power failure". Mount the door.
  • Page 100 Barrier MHTM MicroDrive Access and Parking Start-up and operation Switch the "Service" switch for the "Service" mode. The LED lights red. The display backlighting flashes. Perform one of the following functions:  Push middle left button : Manually open the barrier.
  • Page 101 Barrier MHTM MicroDrive Access and Parking Cleaning and maintenance 11 Cleaning and maintenance 11.1 Safety → See also safety notes on page 16, chapter 2.6 "Occupational safety and special dangers". General WARNING Danger by inappropriate cleaning and maintenance! Inappropriate cleaning and maintenance can cause severe or lethal injuries.
  • Page 102 Barrier MHTM MicroDrive Access and Parking Cleaning and maintenance 11.2 Cleaning The cleaning interval essentially depends on the environmental conditions and the climate. Aggressive cleaning aids and NOTICE substances Unit damage possible! Aggressive detergents and consumables may damage or destroy components, electric cables, or the coating of the barrier.
  • Page 103 Barrier MHTM MicroDrive Access and Parking Cleaning and maintenance 11.5 Maintenance schedule The following describes the maintenance work that is necessary for optimal, trouble-free operation. Maintenance intervals must be observed. If increased wear of individual components or functional groups is...
  • Page 104 Check the induction loops' function. → See separate document "Description of control units MGC and MGC Pro for MHTM MicroDrive barriers", chapter "Detector 1 (A-B)". Check the induction loops. Measure the contact resistance, insulation resistance, and inductivity of the induction loops.
  • Page 105 Barrier MHTM MicroDrive Access and Parking Malfunctions 12 Malfunctions This chapter describes possible causes of malfunctions and troubleshooting tasks. Contact your dealer in case of malfunctions that cannot be repaired by means of the following information. Procure spare parts from your dealer or directly from the manufacturer.
  • Page 106 Defective control may lead to inadvertent movement of the barrier boom. 12.2 Malfunction table – barrier malfunctions → For requirements to the MHTM MicroDrive service specialist, see page 15, chapter 2.4.1. Malfunction: Display is difficult or impossible to read. Possible cause...
  • Page 107 → See separate document "Description of control units MGC and MGC Pro for MHTM MicroDrive barriers", chapter "Start- up settings". Malfunction: Barrier does not close. The message "Waiting for passage"...
  • Page 108 Check parameterisation of the MHTM MicroDrive parameterised. detector module and correct if service specialist required. → See separate document "Description of control units MGC and MGC Pro for MHTM MicroDrive barriers", chapter "Detector 1 (A-B)". Loop defective. Replace loop. MHTM MicroDrive service specialist...
  • Page 109 Barrier MHTM MicroDrive Access and Parking Malfunctions Malfunction: Barrier does not close immediately after through traffic, but only after the hold-open time. Possible cause Corrective action Removal by Opening signal is active for too long. Shorten opening signal to max.
  • Page 110 (fail safe). To take the barrier into operation again, the fault must be removed by an MHTM MicroDrive service specialist and a reset according to chapter 12.4 must be performed. → For requirements to the MHTM MicroDrive service specialist, see page 15, chapter 2.4.1.
  • Page 111 Barrier MHTM MicroDrive Access and Parking Malfunctions NOTE! With some messages, the control unit tries to reset the cause of the message. If the attempt was successful, the message is displayed as WARNING. If the attempt failed, the message is displayed as ERROR.
  • Page 112 Check sum of the parameter Re-set parameters to factory 5530  checksum incorrect defaults. → See separate ERROR document "Description of control units MGC and MGC Pro for MHTM MicroDrive barriers", chapter "Factory settings".  Contact service if required. 5815,5001EN / Version 05...
  • Page 113 Barrier MHTM MicroDrive Access and Parking Malfunctions Number Designation Possible cause Corrective action 6000 Module update A firmware update was not  Restart the control unit error performed correctly. ERROR  If the error continues to be present, perform the update again via the service module.
  • Page 114 Barrier MHTM MicroDrive Access and Parking Malfunctions Number Designation Possible cause Corrective action 3221 Under voltage Undervoltage was recognised The message may occur at an impact below the cut off angle. WARNING Check if an impact has  occurred below the cut off angle.
  • Page 115 Barrier MHTM MicroDrive Access and Parking Malfunctions Number Designation Possible cause Corrective action FF30 Impact detection Current increase and speed  Check safety devices. deviation WARNING  Adjust menu "Cut off angle". → See separate document "Description of control units...
  • Page 116 Barrier MHTM MicroDrive Access and Parking Malfunctions 12.3.3 Event, warning and error messages – Detector The warning messages "FF4B" and "FF4C" are also reported through the output function "Error". Number Designation Possible cause Corrective action FF4A Hardware error Internal HW function test failed Perform reset.
  • Page 117 Barrier MHTM MicroDrive Access and Parking Malfunctions 12.4 Reset the barrier Control unit reset is performed as follows:  Switch of power supply and switch it on again after 10 seconds.  Press the two middle operating buttons on the control unit display for 5 seconds.
  • Page 118 Barrier MHTM MicroDrive Access and Parking Malfunctions 12.5 Closing or opening the barrier boom in case of power failure In case of power failure, the barrier boom may be in the lower or upper dead point. I.e. the barrier boom can no longer be easily moved manually.
  • Page 119 Inappropriate repair can cause severe or lethal injuries. – All repair work must only be performed by authorised MHTM service specialists. – Prior to work, ensure that there is sufficient assembly space. – Pay attention to tidiness and cleanness at the assembly site! Loosely stacked or lying around components and tools are accident sources.
  • Page 120 Barrier MHTM MicroDrive Access and Parking Repair 13.2 Spare parts WARNING Risk of injury by incorrect spare parts! Incorrect or defective spare parts can result in damage, malfunctions or total failure and also impair safety. – Use only the manufacturer's original spare parts.
  • Page 121 Barrier MHTM MicroDrive Access and Parking Repair Disassemble old barrier boom with Disassemble flange from the flange shaft together with the flange barrier boom. For this, loosen the 4 hexagon socket screws 10 AF at the flange. Remove the flange with the barrier boom.
  • Page 122 Barrier MHTM MicroDrive Access and Parking Repair 10. Slide the shorter slot unit and the additional sheet into the groove on the barrier room bottom. Fig. 52: Install lower slot nut and additional sheet Shorter slot nut Additional sheet 11. Place the longer slot nut on the upper side of the barrier boom.
  • Page 123 Barrier MHTM MicroDrive Access and Parking Repair 13. Install end-cap to the barrier boom. Fig. 55: Install end-cap Attach the new barrier boom with 14. Push barrier boom with pre-assembled flange onto the flange flange shaft. 15. Align barrier boom vertically.
  • Page 124 Barrier MHTM MicroDrive Access and Parking Decommissioning, disassembly and disposal 14 Decommissioning, disassembly and disposal A barrier that is no longer usable should not be recycled as a complete unit, but disassembled into individual components and recycled according to material types. Non-recyclable materials have to be disposed of in an environmental-friendly manner.
  • Page 125 Barrier MHTM MicroDrive Access and Parking EC-Declarations of conformity 15 EC-Declarations of conformity 15.1 Barrier, pedestrian traffic impossible Find the EC-Declarations of conformity for barriers where pedestrian traffic can be excluded, in the following. → See also page 12, chapter 2.1.2.
  • Page 127 Barrier MHTM MicroDrive Access and Parking EC-Declarations of conformity 15.2 Barrier, pedestrian traffic not impossible Find the EC-Declarations of conformity for barriers where pedestrian traffic cannot be excluded, in the following. → See also page 13, chapter 2.1.3. 5815,5001EN / Version 05...
  • Page 129 Barrier MHTM MicroDrive Access and Parking Index Index Access Danger area ............23 Design ............. 38 Decommissioning ..........124 Technical data ..........27 Temporarily ........... 100 Access Pro H Design Design ............. 39 Access ............. 38 Technical data ..........30 Access Pro H ..........
  • Page 130 Barrier MHTM MicroDrive Access and Parking Index INFO ..............110 Personal protective equipment ......16 Inspection Pictogram explanation ......... 8 During the first start-up ........98 Plausibility check Instructed People ..........15 Procedure ............90 Intended use ............12 Prohibition signs ..........84 Limitation of liability ..........
  • Page 131 Barrier MHTM MicroDrive Access and Parking Index Vario Flange WARNING............110 Used in barrier type ......... 26 Warning messages WARNING ......110 VarioBoom ............38 Warning notes ............8 Used in barrier type ......... 26 Warnings ............110 Warranty ............. 10...
  • Page 132 MAGNETIC Autocontrol GmbH Address sales partner: Grienmatt 20 79650 Schopfheim Germany Tel.: +49 (0)76 22 695 5 Fax: +49 (0)76 22 695 602 E-Mail: info@ac-magnetic.com Internet: www.ac-magnetic.com F10040797...

Table of Contents

Save PDF
