TITAN CONNECTED PLUS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONNECTED PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Titan CONNECTED PLUS

Summary of Contents for Titan CONNECTED PLUS

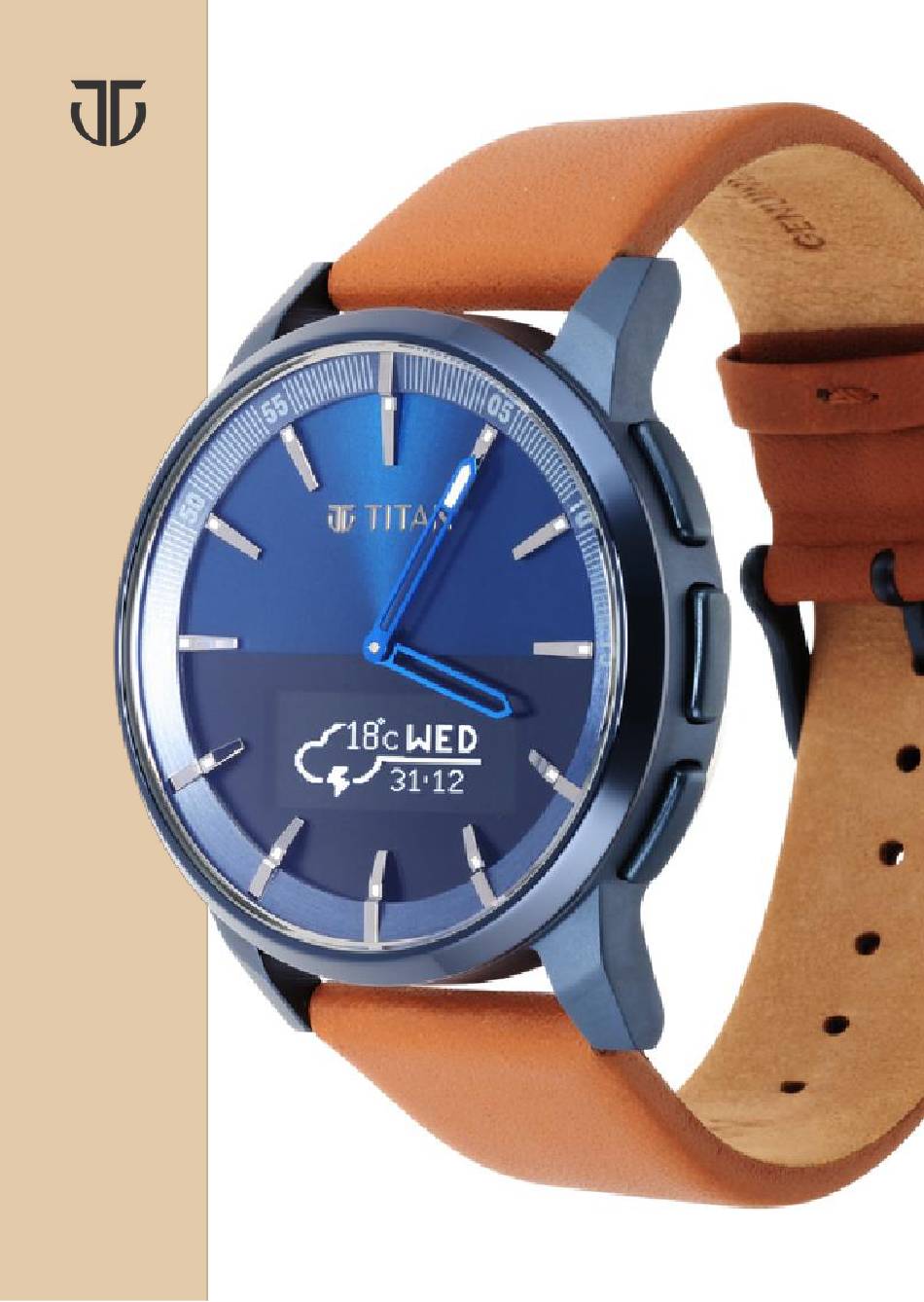

  • Page 1 TITAN CONNECTED PLUS...

  • Page 2: Table Of Contents

    INDEX Introduction What's in the Box Features Charging Instructions 06 - 07 App Installation Pairing the Watch 09 - 12 Calibration 13 - 14 Setting up Profile 15 - 17 How to use the Watch 18 - 19 Watch Menus 20 - 24 App Notifications Alarm Notifications...

  • Page 3: Introduction

    HELLO! The smart is becoming smarter. An exquisite watch that is sure to grab attention - a fusion of design and technology resulting in a master timepiece. This Hybrid smartwatch is half analogue and half digital display (OLED), blending seamlessly into one another. It runs on Micro-motor technology that powers the analogue hands.

  • Page 4: What's In The Box

    WHAT'S IN THE BOX? Watch Charging Dock and Cable...

  • Page 5: Features

    FEATURES Activity Tracker Dual Time Alarms In-built Compass Phone Finder Music Control Camera Control Stopwatch & Timer Weather Notifications Auto Time Sync...

  • Page 6: Charging Instructions

    CHARGING Place the watch in/on the charging dock, ensuring the charging pins are in contact with the points on the watch back cover. Plug the other end of the charger (USB) into a wall adapter or Laptop.
  • Page 7 3. The watch may not charge properly if there is a gap between the watch and the charging dock. 4. To avoid damage to your watch, please use the original charging accessories provided by Titan. 5. Do not attempt to disassemble or modify your watch, charging cable or charging dock.

  • Page 8: App Installation

    Use the Search tab to look for “Titan Connected Plus” App. Download the app and let it install. The Titan Connected Plus App is compatible with iOS 12.1 and above. Use the Search tab to look for “Titan Connected Plus” App.

  • Page 9: Pairing The Watch

    PAIRING THE WATCH Enter your phone number Download the and verify the same by app. OTP verification. Install the application with the icon - TITAN CONNECTED PLUS Via - Play Store Store...
  • Page 10 PAIRING THE WATCH Provide all the relevant Turn on your bluetooth permissions to the app to and location and keep enable all the smart your watch ready for features. pairing.
  • Page 11 PAIRING THE WATCH Select Titan You will get a screen Connected plus and where you have to then the phone will choose the model. search for watches nearby.
  • Page 12 PAIRING THE WATCH After selecting your watch, it will prompt you to verify the connection via code which will be displayed on the watch. Enter the code on the phone to connect the watch with your app.

  • Page 13: Calibration

    HAND CALIBRATION Once the watch is connected, the app will prompt you to calibrate your watch. Calibrate your hour hand by Calibrate your minute hand by using the two arrow buttons using the two arrow buttons below the watch figure. below the watch figure.
  • Page 14 SETTING TIME ZONE Select a city in order to show the weather and accurate time zone.

  • Page 15: Setting Up Profile

    SETTING UP YOUR PROFILE You need to add your step goals and name. Arpit Singh...
  • Page 16 SETTING UP YOUR PROFILE You also need to add Voila! You have successfully paired the gender, height, weight and watch with your app. birth date for the app.
  • Page 17 REMEMBER Note Please grant the necessary permissions that the App requests, in order to make use of all the features of the watch. During the pairing process, the watch needs to be near the mobile phone and Location needs to be enabled. Ensure that the gender, height and weight details entered are accurate and up-to-date for accurate measurement of your activity...

  • Page 18: How To Use The Watch

    HOW TO USE THE WATCH The 3 push buttons on the right side of the watch enable a seamless user experience. Button 1 (at 2H, also a hotkey) can be used to scroll up in the displayed menu. (The Hotkey is triggered by pressing KEY-1 twice from any screen.) Button “A (middle button) is to discover and find different features on the watch.
  • Page 19 SETTING AND ENABLING HOT KEY (KEY 1) You can choose one of the You can find the hot key three functionalities button on the home screen mentioned below as a Hot Key of the app at the bottom left function. This can be changed corner.

  • Page 20: Watch Menus

    WATCH MENUS Menu 1 On the first push of Button A, the weather of the current city and the other 3 cities is displayed. Weather Condition Day of the current city Date Weather City Name Condition Time...
  • Page 21 WATCH MENUS Menu 2 On the second push of Button A, the activity tracker is displayed. The watch uses an accelerometer for activity tracking. You can track the steps taken during the day. You can also track the distance covered in kilometers.
  • Page 22 WATCH MENUS Menu 3 Menu 4 On the third push of On the fourth push of Button A, different Button A, the Timer screen reminders are displayed is seen. that have been set by you. Button 2 can be used to Different reminders can also be checked by using stop the timer.
  • Page 23 WATCH MENUS Menu 6 Menu 5 On the sixth push of Button On the fifth push of A, you can access the Button A, you will activating in-built compass be able to access which will display the the stopwatch. respective directions: North, South, East and West.
  • Page 24 WATCH MENUS Note 1. While accessing the above menus, there can be incidental screens such as alarm pop-ups, messages, device charging, etc. 2. The activity data will not be deleted when the watch is restarted. However, if the watch is Reset, then all data from the watch will be wiped off.

  • Page 25: App Notifications

    APP NOTIFICATIONS All the app notifications that have been allowed on your app can be seen on your watch. Arpit Singh You can navigate through multiple notifications by pressing key A. If the text/notification is too long then a down arrow is displayed on the bottom right corner which can be Robin Lee...

  • Page 26: Alarm Notifications

    ALARM NOTIFICATIONS From the clock and weather section in settings, you can add up to 5 alarms that will alert you on the watch. Here's what the alarm notification looks like. Note: The watch will vibrate for 60 sec as alarm alert.

  • Page 27: Additional Settings

    ADDITIONAL SETTINGS Switch between time and measurement formats. Adjust Vibration Intensity for Alarm and App notifications.
  • Page 28 ADDITIONAL SETTINGS You can enable/disable the compass. To recalibrate the compass, click on recalibrate and move the watch in the form of an "8" to complete recalibration. To recalibrate the hands if they are misaligned, you will have to use left and right arrows to align the hands as per the current time.
  • Page 29 ADDITIONAL SETTINGS You can turn on/off specific or all notifications. You can disconnect your watch from the current device using Status button and selecting unpair.

  • Page 30: Tech Specifications

    TECHNICAL SPECIFICATIONS Parameter Value Model Number 90120 Weight with Strap/Case Head 60g/54g Case Diameter 43mm Band/Strap Material Leather & Silicone Glass Material Mineral Glass Charging Mode (Via USB/ Dock with USB Cable Proprietary/USB C/Wireless Digital Display OLED(39px96p resolution) Bluetooth BLE 5.0 Enabled 45 mAh (4 Days of Battery Size and Duration Hybrid usage + 20 Days...
  • Page 31 TECHNICAL SPECIFICATIONS Parameter Value Battery capacity with all 3 hours with continuous features on compass Android 6.0 and above, App Compatibility iOS 12.1 and above Warranty 1 Year this will reset prompt a message to reset the watch to factory settings. Confirm by pressing the button...

  • Page 32: Faqs

    FAQ'S Q.1. Is there any warranty on the watch? Yes, the watch comes with a one-year warranty against manufacturing defects. Q.2. What is the battery life of the watch? The battery capacity is 40 mAh. A single charge provides 4 days of Hybrid usage plus an additional 20 days of analog usage.
  • Page 33 How to enable/disable notifications? During initial setup, tap on ‘Enable Notifications’ at the bottom of the screen Toggle the button next to ‘Titan Connected 2’ to ‘allow’ notifications. From now, all mobile notifications will be shown on the Titan Connected 2 device.
  • Page 34 FAQ'S Q.6. Is the watch water resistant? Yes, it has 3 ATM water resistance. 3 ATM means that a watch can withstand a pressure of 3 bar or a water column of 30 meters. In simpler terms, it can withstand the pressure of a flowing water jet when washing hands.
  • Page 35 FAQ'S Q.8. How to change your step, calorie and distance goals? Simply tap on the ‘plus’(+) icon below your ‘Steps Today’ on the app and you will see an option to change your step, calorie and distance goals by scrolling/swiping up and down.
  • Page 36 Simply press Key-A once to turn off the alarm when the watch is vibrating. Q.12. If I need assistance with the product, whom can I contact? You can reach out to our Customer Care at 1800-266-0123 or email us at smartdesk@titan.co.in...
  • Page 37 Factory reset the watch> Unpair/forget the watch from phones Bluetooth settings> Close the app> Phones settings> app manager> Connected plus> storage> clear cache> clear data> uninstall the app > Install app and start the pairing process. Q.14.
  • Page 38 FAQ'S in Home Time Setting first, and then he will need to go to the Settings section of the app and Recalibrate the Hands of the Watch and confirm that he wants to set time as per the city that he has selected in Home Time Settings.

  • Page 39: Fcc Statement

    FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 40: Note On Accuracy Of Smartwatches

    FCC STATEMENT However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.
  • Page 41 NOTE ON THE ACCURACY OF SMART WATCHES & FITNESS TRACKERS Smart watches (including Hybrid watches) like Titan Connected are intended to be tools to provide you with information on your lifestyle and activities, to encourage an active and healthy lifestyle. The watch relies on sensors that track your movement and other metrics.
  • Page 42 Pushing a stroller or shopping cart Carrying a bag of groceries or child Talking on phone and walking Titan Connected is not a medical device and the data should not be used for medical purposes like diagnosis, treatment, cure, or prevention of any physiological conditions.
