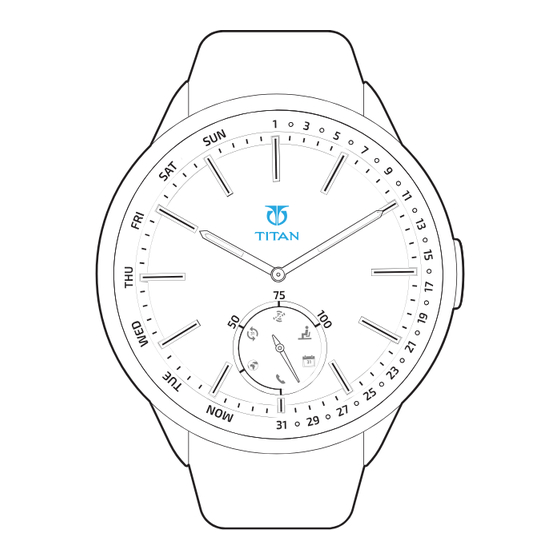

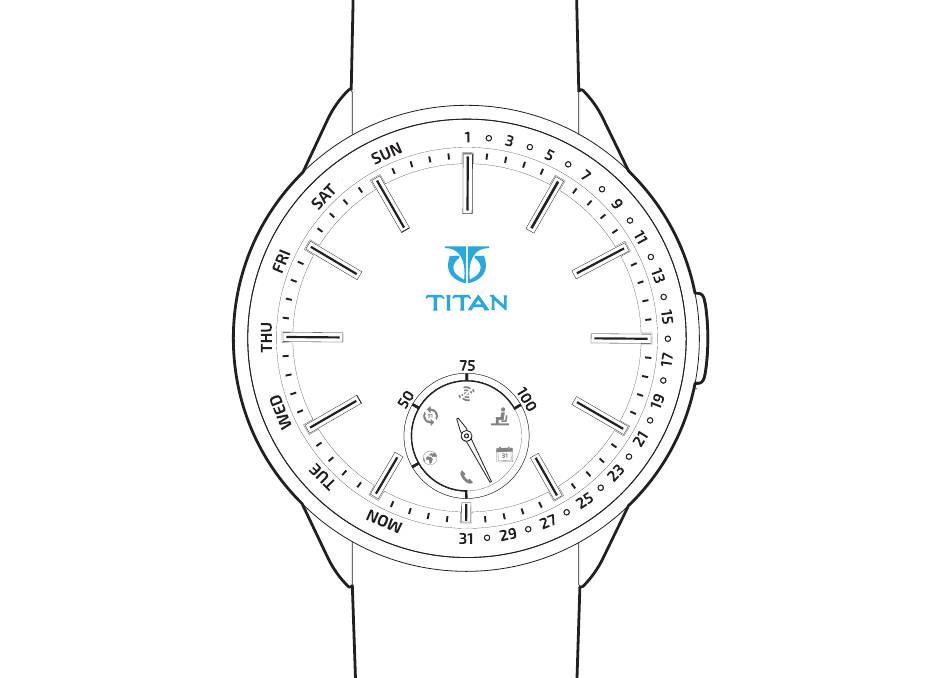

- Page 1 USER MANUAL- TITAN 1785...
-
Page 2: What's In The Box
What’s in the box Quick Start Guide Watch Charger USB cable... -
Page 3: Getting Started
Getting started Pairing the watch for the first time: Once you get your watch, charge your watch with the included charger. The watch will vibrate twice and the offset hand will start moving, which indicates the watch has been activated. Post this, Bluetooth will remain ON at all times. - Page 4 Pairing the Watch with the App Open the App and follow the on-screen instructions. Select “Titan 1785” and then select the Watch variant. You will be taken to the pairing screen. Click on ‘start pairing’ and the phone will begin searching for the watch.
- Page 5 Finding your watch Pair your Smartwatch Select a watch to pair Titan_1785_1AD2 CD:72:E4:16;1A:D2 START PAIRING Once the watch is found, the App will display the same. Select the watch and click on ‘Start Pairing’ to complete the pairing process.
- Page 6 Pairing Successful Pair your Smartwatch Watch is successfully paired! NEXT Once the watch is successfully paired, Tap ‘Next’ to continue...
- Page 7 Calibration of Watch Calibration of Hour hand Calibrate Hour Hand In the calibration page, align the hour hand in the App to match the hour hand on the watch. Tap ‘Next’ when complete and the hour hand will move to the 12H position and the App will move to the NEXT ‘Minute Hand Calibration’...
- Page 8 Calibration of Watch Calibration of Minute hand Calibrate Minute Hand Align the minute hand position in the App to match the minute hand on the watch. Tap ‘Next’ when complete and the minute hand will move to the 12H position and the App will move to the NEXT ‘Offset Second Hand Calobration’...
- Page 9 Calibration of Watch Calibration of Offset Second hand Calibrate Offset Second Hand Align the offset second hand in the App to match the offset second hand on the watch. Tap ‘Next’ when complete and the offset second hand will move to the 12H position and the App will move to NEXT the ‘Minor Adjustment’...
- Page 10 Calibration of Watch ‘Minor Adjustment’ of all hands Calibrate In case the hands are not aligned exactly to 12H, please make minor Make sure all watch hands adjustments for the hands as required. are set to 12H Click ‘Next’ to complete the calibration process and the watch hands will move to the current time.
- Page 11 Features Activity Tracker Sedentary Call Reminder Notifications City Time Meeting Reminder Auto Link Lost Time Sync Alert Day Date Find Your Phone...
-
Page 12: Activity Tracker
Activity Tracker 1. Press the 3H push button once and Offset hand will show the progress of activity in percentage 2. Activity completion percentage will be Indicated on the offset dial 3. Once you achieve your steps target (100%), the hour hand and minute hand will move together to celebrate your achievement. - Page 13 Day/Date 1. Press the 3H push button two times consecutively and Offset hand will Show the Day & Date mode 2. The Date and Time is automatically taken from The mobile and displayed by the center hands (Hour & Minute) 3.
- Page 14 Secondary Time Zone 1. Press the 3H push button three times consecutively and the offset hand will show the secondary time zone mode 2. Pre-set second city time is taken from the mobile app and will be displayed on the watch 3.
-
Page 15: Find Your Phone
Find Your Phone 1. Press the 3H push button for 3 seconds (continuously), ‘Find My Phone’ feature gets enabled and phone starts ringing with blink 10:45 of flash light. Friday, November 24 2. To stop the ‘Find my Phone’ feature, press 3H push button again for 3 seconds Connected Phone Found... - Page 16 Link Loss In case the watch loses connection with the smartphone, the Offset second hand will point towards the ‘Link Loss’ icon and the watch will vibrate twice.
-
Page 17: Sedentary Reminder
Sedentary Reminder For a particular sedentary interval set in the Mobile App, the watch vibrates and the Offset second hand will point to the ‘Sedentary Reminder’ icon if it doesn’t sense movement after the set interval. Note: Enable ‘Sedentary Reminder’ feature and set the interval time from the mobile app ‘Notification’... -
Page 18: Call Notification
Call Notification In case of incoming calls, the watch vibrates to indicate the same & the Offset second hand will point to the call notification icon For the ‘Priority Calls’ set in the mobile App, the hour and minute hand points to the order of the priority set in the App, e.g. - Page 19 Meeting Reminder The watch will sync to the native calendar app and vibrate 10 mins before the meeting start time with the offset hand showing the ‘Meeting Reminder’ mode.
- Page 20 44 X 13 mm Case Material 316 Stainless steel Case Glass Material Mineral Glass Strap Genuine Leather / Metal Strap Watch Movement Titan Micro motor Sensors Accelerometer Movement & Sensor Information Connection Bluetooth LE 4.0 Feedback Vibrator Battery Life 5 Days (Full Smart) + 45 Days (Normal Watch)
- Page 21 The green lifespan for a replaceable part such as the battery may be different from that of the product. The green lifespan is valid only when using the product under normal circumstances described in the manual. Disclaimer: Titan Company Limited has the right of final interpretation of this manual.
- Page 22 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2.
- Page 23 To maintain compliance with RF exposure requirement, use product that maintain a Ocm distance between the device and human body. Hereby, Titan Company Limited declares that the radio equipment type (Smartwatch 90099, 90099SL01, 90099SL02) is in compliance with Directive 2014/53/EU.
- Page 24 Note on the accuracy of Activity Tracker Activity trackers are intended to be tools to provide you with information to encourage an active and healthy lifestyle. Activity trackers rely on sensors that track your movement and other metrics. The data and information provided by these devices are intended to be a close estimation of your activity and metrics tracked, but may not be completely accurate, including the step, sleep, distance, and calorie data.
