INSTALLATION INSTRUCTIONS

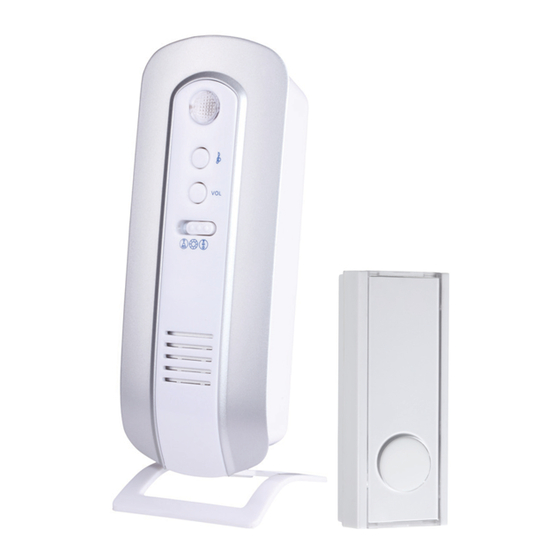

DÉCOR CHIME Wireless Digital Door Chime
Model No: CHM10157, CHM0158
Please install and operate this product according to the following instructions.
'Receiver' means the Indoor Chime unit.
CONTENTS
Receiver x1
Transmitter x1
Include white address
label insert
NAMES FOR PARTS
Receiver front side
(1) LED Indicator
(2) Melody Selector
(3) Volume Button
(4) Sound-and-Flash Switch
(5) Speaker
Receiver back side
1
7
2
3
8
4
5
9
6
(6) Click-in base of Receiver
(7) Hanging Hole
(8) Auto-learning Code Button
(9) Battery Cover
'Transmitter' means the Exterior Door Press.
Click-in base
of Receiver x1
Transmitter front
cover outside
1
CR2032 x1
Instruction Manual x1
10
12
11
13
(10) Nameplate
(11) Push Button
(12) Standby holes for screws
(13) Opening Tab
Transmitter back
cover outside
Advertisement
Table of Contents
Related Manuals for SImx DECOR CHIME CHM10157
Summary of Contents for SImx DECOR CHIME CHM10157
- Page 1 INSTALLATION INSTRUCTIONS DÉCOR CHIME Wireless Digital Door Chime Model No: CHM10157, CHM0158 Please install and operate this product according to the following instructions. ‘Receiver’ means the Indoor Chime unit. ‘Transmitter’ means the Exterior Door Press. CONTENTS Receiver x1 Transmitter x1 Click-in base CR2032 x1 Instruction Manual x1...
-
Page 2: Notes Before Installation
SELECTING YOUR MOUNTING LOCATIONS Before fixing the products, check your desired locations can communicate first. The product is rated to operating up to a range of 80 metres in free air. The operating range will be reduced if the signal is transmitted through a number of walls or ceilings. - Page 3 Transmitter Unit • Using a flat screwdriver, insert into the small slot at the base of the unit to facilitate this. Remove the circuit board (it may be secured with a small screw). Insert the supplied CR2032 into the battery holder, ensuring polarity of battery on installation (positive facing outwards). Reinsert the circuit board with screw in place.
- Page 4 AFFIXING THE PRODUCTS • The Receiver can be mounted to a wall on a screw, or fitted with the supplied click in base for free standing. • Affix the door press to a smooth surface with double sided tape and screws as required. Before you drill any hole in the wall, please make sure there are not cables or pipes that may be accidentally damaged.
-
Page 5: Operation
OPERATION Press the push button on the Transmitter unit once, it sends a wireless signal to the Receiver which will play the selected melody. The sound will stop as soon as the melody ends. For repeat sound, press the button again. Holding the Transmitter button IN will NOT repeat the sound. USER HINTS If the Receiver does not sound, please check the following: •... -
Page 6: Electrical Compliance
ELECTRICAL COMPLIANCE This product complies to all relevant NZ/AU compliance standards. An SDOC (supplier compliance declaration) is available on www.simx.co.nz Type the product code into Search on the home page, this takes you to the item product page, a download link is located below the product details on that page.
