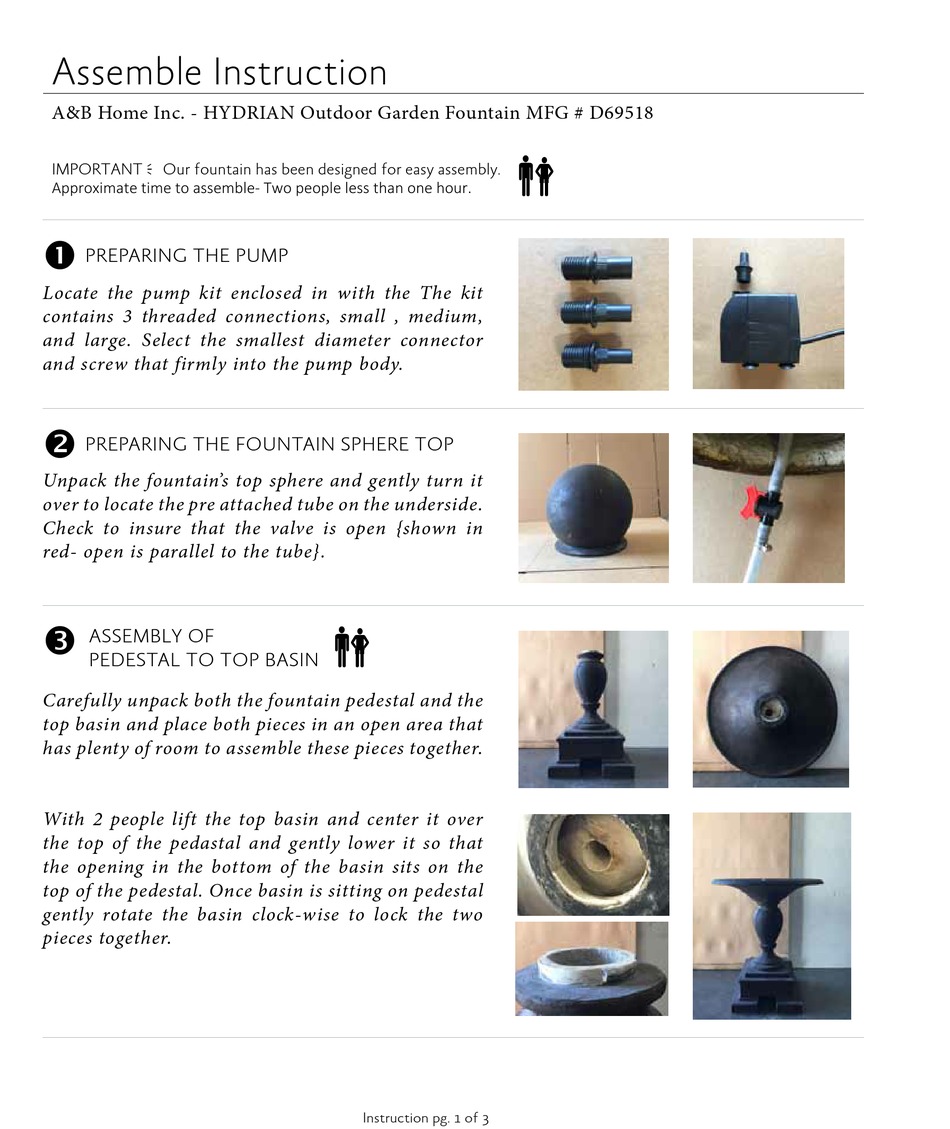

Assemble Instruction
A&B Home Inc. - HYDRIAN Outdoor Garden Fountain MFG # D69518
Important Our fountain has been designed for easy assembly.
Approximate time to assemble- Two people less than one hour.
PREPARING THE PUMP
Locate the pump kit enclosed in with the The kit
contains 3 threaded connections, small , medium,
and large. Select the smallest diameter connector
and screw that firmly into the pump body.
PREPARING THE FOUNTAIN SPHERE TOP
Unpack the fountain's top sphere and gently turn it
over to locate the pre attached tube on the underside.
Check to insure that the valve is open {shown in
red- open is parallel to the tube}.
ASSEMBLY OF
PEDESTAL TO TOP BASIN
Carefully unpack both the fountain pedestal and the
top basin and place both pieces in an open area that
has plenty of room to assemble these pieces together.
With 2 people lift the top basin and center it over
the top of the pedastal and gently lower it so that
the opening in the bottom of the basin sits on the
top of the pedestal. Once basin is sitting on pedestal
gently rotate the basin clock-wise to lock the two
pieces together.
Instruction pg. 1 of 3
Advertisement
Table of Contents
Related Manuals for A&B Home HYDRIAN
Summary of Contents for A&B Home HYDRIAN
- Page 1 Assemble Instruction A&B Home Inc. - HYDRIAN Outdoor Garden Fountain MFG # D69518 IMPORTANT Our fountain has been designed for easy assembly. Approximate time to assemble- Two people less than one hour. PREPARING THE PUMP Locate the pump kit enclosed in with the The kit contains 3 threaded connections, small , medium, and large.
- Page 2 POSITION PUMP, PLUG, AND CORD TO THREAD THROUGH PEDESTAL Locate the recessed indentation on the inside of the top basin and position the pump as shown with the connector pointing upwards. Drop the plug through the pipe in the center as shown and thread the cord through the pedastal and pull the plug through the opening at the base of the pedestal.
- Page 3 IMPORTANT Remember to make sure the plug is dry and clean before inserting into the outlet. When having trouble with the water flowing evenly from the ball to the basin, or in the event you need to level the surface of your fountain, use the included shims to even out the water flow.
