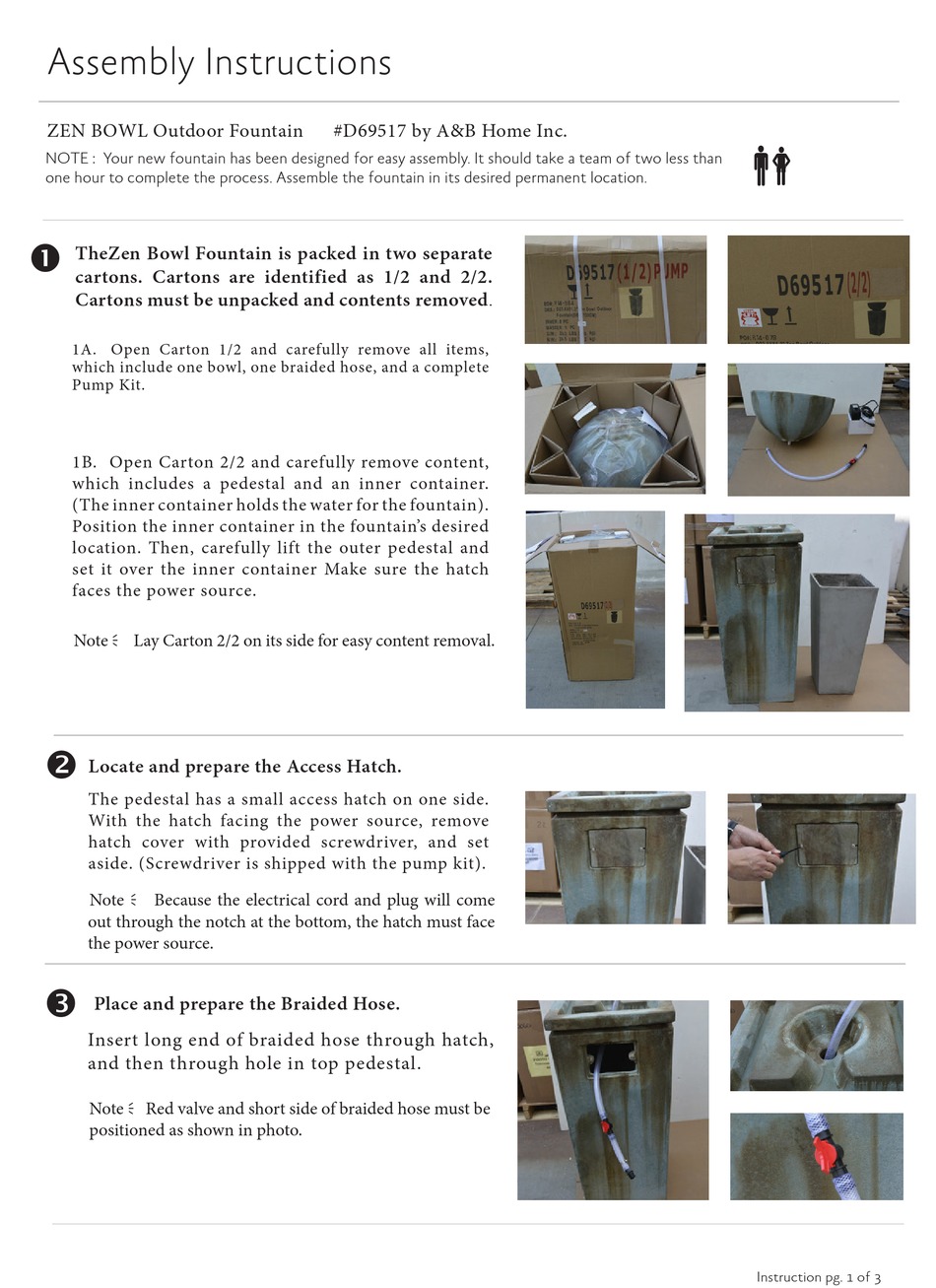

Assembly Instructions

ZEN BOWL Outdoor Fountain
NOTE : Your new fountain has been designed for easy assembly. It should take a team of two less than
one hour to complete the process. Assemble the fountain in its desired permanent location.

TheZen Bowl Fountain is packed in two separate
cartons. Cartons are identified as 1/2 and 2/2.
Cartons must be unpacked and contents removed.
1A. Open Carton 1/2 and carefully remove all items,
which include one bowl, one braided hose, and a complete
Pump Kit.
1B. Open Carton 2/2 and carefully remove content,
which includes a pedestal and an inner container.
(The inner container holds the water for the fountain).
Position the inner container in the fountain's desired
location. Then, carefully lift the outer pedestal and
set it over the inner container Make sure the hatch
faces the power source.
Note  Lay Carton 2/2 on its side for easy content removal.

Locate and prepare the Access Hatch.
The pedestal has a small access hatch on one side.
With the hatch facing the power source, remove
hatch cover with provided screwdriver, and set
aside. (Screwdriver is shipped with the pump kit).
Note  Because the electrical cord and plug will come
out through the notch at the bottom, the hatch must face
the power source.

Place and prepare the Braided Hose.
Insert long end of braided hose through hatch,
and then through hole in top pedestal.
Note Red valve and short side of braided hose must be
positioned as shown in photo.
#D69517 by A&B Home Inc.


Instruction pg. 1 of 3
