Manuale di installazione, uso e manutenzione

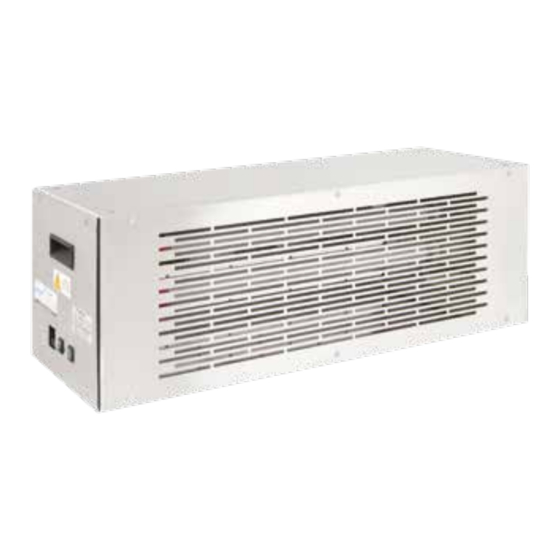

DISPOSITIVO BIOXIGEN
MODELLO PURHO
®
Dispositivo di sanificazione dell'aria e delle superifici
Manual: installation, use and maintenance
BIOXIGEN
DEVICE PURHO MODEL
®
Sanitization device for air and surfaces
Product code:
BXMSF2V
BXMSF4V
Per trovare il presente manuale in altre lingue:
To find this manual in other languages:
www.bioxigen.com | info@bioxigen.com

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PURHO BXMSF2V and is the answer not in the manual?

Questions and answers

Summary of Contents for Bioxigen PURHO BXMSF2V

  • Page 1 Dispositivo di sanificazione dell’aria e delle superifici Manual: installation, use and maintenance BIOXIGEN DEVICE PURHO MODEL ® Sanitization device for air and surfaces Product code: BXMSF2V BXMSF4V Per trovare il presente manuale in altre lingue: To find this manual in other languages: www.bioxigen.com | info@bioxigen.com...
  • Page 2: Dichiarazione Di Conformità

    La società Skill Group Srl con sede in Via Lombardia, 2 37044 Cologna Veneta (VR) ITALIA dichiara, in piena responsabilità, che i dispositivi di sanificazione BIOXIGEN ® modelli: PURHO (BXMSF2V - BXMSF4V) costruiti da Skill Group Srl sono conformi alle direttive:...
  • Page 3: Table Of Contents

    CERTIFICATO TÜV PROFICERT 1 - INFORMAZIONI GENERALI 1.1. Introduzione, Identificazione Unità, Simbologia 1.2. Avvertenze e Divieti Generali 1.3. Il Sistema Bioxigen (Sintesi della DESCRIZIONE sul PRINCIPIO DI FUNZIONAMENTO della tecnologia) 06 ® 1.4. Caratteristiche Costruttive 1.5. Dati tecnici, dimensioni e pesi 1.6.
  • Page 5: Informazioni Generali

    1. INFORMAZIONI GENERALI 1.1 Introduzione, Identificazione Unità, Simbologia CONGRATULAZIONI E BENVENUTI IN BIOXIGEN ® Vi ringraziamo per aver deciso di accordare la vostra preferenza ad un dispositivo di nostra produzione Questo manuale riporta le informazioni e quanto ritenuto necessario per il trasporto, l’installazione, l’uso e la manutenzione dei moduli di sanificazione BIOXIGEN prodotti dalla ditta Skill Group Srl (in seguito chiamata anche Ditta Costruttrice).
  • Page 6: Avvertenze E Divieti Generali

    Questo principio quindi ci permette di fornire i benefici descritti senza effetti collaterali negativi, alcuni dei nostri dispositivi sono registrarti come Dispositivi Medici di classe IIA. La tecnologia BIOXIGEN attualmente è contenuta all’interno di apparecchiature disponibili su catalogo (www.bioxigen. ® com), all’interno dei componenti che costituiscono l’impianto di trattamento aria: U.T.A, C.T.A., canalizzazioni aria, e recuperatori di calore.
  • Page 7: Caratteristiche Costruttive

    Questi spazi sono solitamente serviti da impianti di trattamento aria predisposti alla filtrazione estrema dell’aria ma non efficaci nella decontaminazione della popolazione microbica apportata in ambiente dalle persone o da variabili ambientali provenienti dall’interno. I dispositivi BIOXIGEN in questo caso svolgono un importante ruolo di prevenzione dei pericoli di contaminazione ®...
  • Page 8: Tavola Dimensioni Ingombro

    1.6 Tavola dimensioni ingombro (mm)
  • Page 9: Trasporto

    2. TRASPORTO 2.1 Imballaggio I dispositivi BXMSF Ventilati time switch e i loro accessori vengono spediti in appositi imballi di protezione e vanno mantenuti integri fino al momento del montaggio. I materiali che non sono stati installati per esigenze tecniche vengono forniti imballati con involucro idoneo fissato all’interno o all’...
  • Page 10: Norme Di Sicurezza

    • Non versare acqua o liquidi in genere sul dispositivo. • Non introdurre oggetti di alcun genere nelle fessure del dispositivo Bioxigen , in quanto entrando in contatto con ® punti di voltaggio o terminazioni elettriche potrebbero provocare incendi o scosse elettriche.
  • Page 11: Operazioni Preliminari

    3.3 Operazioni Preliminari Verificare la perfetta integrità dei vari componenti del dispositivo. Controllare che nell’imballo siano contenuti la documentazione e gli eventuali accessori per l’installazione. Trasportare la sezione imballata il più vicino possibile al luogo di installazione. Non sovrapporre attrezzi o pesi sul dispositivo, né collocarla su superfici instabili. 3.4 Scelta del Luogo d’Installazione Non posizionare il dispositivo in locali in cui sono presenti gas infiammabili, sostanze acide, aggressive e corrosive che possono danneggiare i vari componenti in maniera irreparabile.
  • Page 12: Collegamenti Elettrici

    E’ dovere dell’installatore prevedere il montaggio del dispositivo il più vicino possibile all’unità del sezionatore dell’alimentazione, come da norme vigenti e quanto necessario per la protezione delle parti elettriche. 4.1 Alimentazione Elettrica Il sanificatore Bioxigen BXMSF lascia la fabbrica completamente cablato e necessita solamente di collegamento alla rete ® di alimentazione elettrica.
  • Page 13: Tavola Schema Elettrico Bxmsf2V

    4.2 Tavola Schema Elettrico BXMSF2V LEGEND Condensatore tipo F Quartz condesator type F Trasformatore 19 V Voltage converter 19V Spia di attivazione Device activation light Spia di rete Network light Fusibile Fuse Micro-interruttori Micro-switches Ventola...
  • Page 14: Tavola Schema Elettrico Bxmsf4V

    4.3 Tavola Schema Elettrico BXMSF4V LEGEND Condensatore tipo F Quartz condesator type F Trasformatore 19 V Voltage converter 19V Spia di attivazione Device activation light Spia di rete Network light Fusibile Fuse Micro-interruttori Micro-switches Ventola...
  • Page 15: Uso Del Dispositivo

    6.2 Manutenzione Ordinaria Il sistema Bioxigen necessita di una ridotta manutenzione consistente nella pulizia periodica e regolare dei condensatori ®...
  • Page 16: Procedura Per La Pulizia Del Dispositivo

    Alimentare elettricamente il dispositivo inserendo la presa P e attivare il dispositivo agendo sul pulsante I. Verificare il funzionamento del dispositivo: deve essere udibile un leggero crepitio prodotto dai condensatori Controllare il dispositivo Bioxigen in funzione: verificare se l’apparecchiatura risponde ai comandi. Nel caso si ®...
  • Page 17: Manutenzione Straordinaria

    La vita massima del condensatore in condizioni di funzionamento normali è di 16000 ore. 7. SMALTIMENTO A fine utilizzo i dispositivi Bioxigen andranno smaltiti in osservanza delle normative vigenti nel paese d’installazione. ®...
  • Page 19 REV. July 2020 Manual: installation, use and maintenance BIOXIGEN DEVICE PURHO MODEL ® Sanitization device for air and surfaces Product code: BXMSF2V BXMSF4V To find this manual in other languages: www.bioxigen.com | info@bioxigen.com...
  • Page 20: Conformity Declaration

    The company Skill Group Srl With headquarters in Via Lombardia, 2 37044 Cologna Veneta (VR) ITALIA Delcares, on its full responsability that BIOXIGEN sanitization devices ® models: PURHO (BXMSF2V - BXMSF4V) Manufactured by Skill Group Srl Comply twih the following CE directives:...
  • Page 21 CONFORMITY DECLARATION TÜV PROFICERT CERTIFICATE 1 - GENERAL INFORMATION 1.1. Introduction, unit identification, symbols 1.2. General warnings and instructions 1.3. The Bioxigen system (summary DESCRIPTION of the technology’s OPERATING PRINCIPLE) ® 1.4. Constructional characteristics 1.5. Technical specifications, dimensions and weight 1.6.
  • Page 23: General Information

    Bioxigen® purification modules made by Bioxigen Srl (hereinafter also called manufacturer). The user will find all the information normally needed for correct and safe installation of the Bioxigen® purification devices. Failure to observe the instructions provided in this manual and/or improper installation of the device may mean the manufacturer’s warranty on its products no longer applies.
  • Page 24: General Warnings And Instructions

    1.3 The Bioxigen® system (summary DESCRIPTION of the technology’s OPERATING PRINCIPLE) The Bioxigen® technology generates a flow of ionised air with a high concentration of negative oxygen ions. The oxygen ions are produced using an oscillating electric field that makes molecules in the air vibrate, increasing their kinetic energy and as a result exchanging electrons when colliding, creating negative oxygen ions and positive ions (O2- and N2+).
  • Page 25: Constructional Characteristics

    Of course finding specific devices suitable for use and scaling them is the task of our technical staff assisted, where necessary, by consultants: biologists, microbiologists etc. For further technical, commercial or scientific information, contact us at the following email address: info@bioxigen.com. 1.4 Constructional characteristics The BXMSF series suspended products consist of a quartz condenser array powered by an electric circuit with voltage boosters.
  • Page 26 1.6 Table overall dimensions (mm)
  • Page 27: Transport

    2. TRANSPORT 2.1 Packaging The BXMSF devices and their accessories are protected by special packaging. Any materials that are not already installed for technical reasons are supplied packaged in suitable containers fastened to the inside or outside of the unit. 2.2 Handling and transport When handling the devices, use suitable means according the weights involved, as envisaged by EC directive 89/391 and later amendments...
  • Page 28: Safety Instructions

    • Spare parts must correspond to the requirements defined by the manufacturer. • If decommissioning the Bioxigen® device, observe the legislation in force relating to the prevention of pollution in the country where the device is installed. • When drilling ceilings or walls, make sure not to interfere with power cables, pipes or anything else that may be damaged.
  • Page 29: Preliminary Operations

    3.3 Preliminary operations • Check that all the components on the device are perfectly intact. • Check that the packaging contains the documents and any accessories required for installation. • Move the packaged section as near as possible to the place of installation. •...
  • Page 30: Electrical Connections

    It is the duty of the installer to mount the device as close as possible to the isolating switch of the power supply, as per current regulations and what is necessary for the protection of the electrical parts. 4.1 Power supply The Bioxigen BXMSF with fan and time switch sanitizer comes fully wired and only requires connection to the power ®...
  • Page 31 4.2 Table elctrical diagram BXMSF2V LEGEND Condensatore tipo F Quartz condesator type F Trasformatore 19 V Voltage converter 19V Spia di attivazione Device activation light Spia di rete Network light Fusibile Fuse Micro-interruttori Micro-switches Ventola...
  • Page 32 4.3 Table elctrical diagram BXMSF4V LEGEND Condensatore tipo F Quartz condesator type F Trasformatore 19 V Voltage converter 19V Spia di attivazione Device activation light Spia di rete Network light Fusibile Fuse Micro-interruttori Micro-switches Ventola...
  • Page 33: Device Use

    6.2 Sheduled maintenance The Bioxigen® system requires a reduced maintenance regime consisting of periodic and regular cleaning of the quartz condensers and mesh electrodes, according to the procedure shown below. The frequency of cleaning depends on the applications to which the device is put and the characteristics of the environment treated.
  • Page 34: Procedure For Cleaning The Device

    Power-up the device by inserting socket “P” and start it using switch “I” . Check the operation of the device. The slight crackle produced by the condensers must be audible. Check the Bioxigen device in operation. Check if the device responds to the controls. In case you experience a ®...
  • Page 35: Extraordinary Maintenance

    When these appear, the component must be replaced. The maximum life of the condenser in normal operating conditions is 16000 hours. 7. DISPOSAL At the end of their working life, the Bioxigen devices must be disposed of in accordance with the standards in force in ®...
