OWNER'S MANUAL

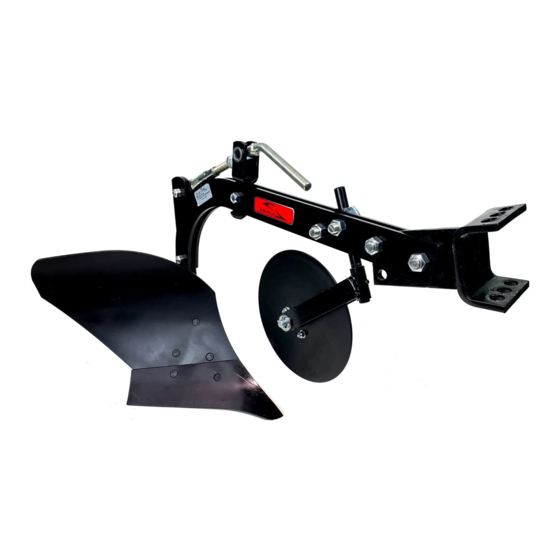

M O L D B O A R D P L O W , 1 0 - I n c h
MODEL:
P P - 5 1 0
P P - 5 1 0 - A
• Assembly
• Installation
• Operation
• Repair Parts
This implement is designed for
use with garden tractors equipped with
a sleeve hitch.
Tire chains and wheel weights are recommended.
Visit us on the web!
www.brinly.com
English Manual
Call Customer Service, Toll-Free: 877-728-8224
Important: This manual contains information for the safety
of persons and property. Read it carefully before
assembly and operation of the equipment!
1
English, Spanish &
French Manual
L-1043-3-B
Advertisement
Table of Contents
Related Manuals for Brinly PP-510
Summary of Contents for Brinly PP-510
- Page 1 Tire chains and wheel weights are recommended. Call Customer Service, Toll-Free: 877-728-8224 Important: This manual contains information for the safety Visit us on the web! of persons and property. Read it carefully before www.brinly.com assembly and operation of the equipment! English Manual L-1043-3-B...
-
Page 2: Table Of Contents
INTRODUCTION AND SAFETY ================================================================================================== cONGRATULATIONS on your new Brinly-Hardy purchase! This accessory has been designed, engineered and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please do not hesitate to contact our knowledgeable customer service department toll-free at 1-877-728-8224. - Page 3 Please contact our Customer Service object and/or being thrown off during sudden starts, stops department, Toll Free: 877-728-8224 or and turns. customerservice@brinly.com • Riders may also obstruct the operator’s view resulting in this attachment being operated in an unsafe manner. English Manual...
- Page 4 HARDWARE IDENTIFIER ================================================================================================== DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS. Illustrations on this page Please Call: 1 (877) 728-8224 are to scale for faster identification of hardware during assembly. Contents of this page can be found in: Hardware Bag Z-1216-A Spacer Nut: Hex 5/8"...
- Page 5 HARDWARE IDENTIFIER ================================================================================================== DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS. Illustrations on this page Please Call: 1 (877) 728-8224 are to scale for faster identification of hardware during assembly. Contents of this page can be found in: Hardware Bag Z-1216-B Nut;...
- Page 6 HARDWARE IDENTIFIER ================================================================================================== DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS. Illustrations on this page Please Call: 1 (877) 728-8224 are to scale for faster identification of hardware during assembly. Hardware Bag Z-1216-A Hardware Bag Z-1216-C Ref # Part # Description b-1674P Nut;...
-
Page 7: Parts
PARTS ================================================================================================== #19 - Frog is illustrated here without the plow attached for visibility. These parts come pre-assembled Ref # Part # Description Ref # Part # Description d-128P Grease Fitting, 5/16" P-596-10 Adjusting bracket P-250A coulter; Hub 1008563 Logo decal 1019594 P-251-10 Standard... -
Page 8: Assembly
- Securely tighten all fasteners only AFTER plow assembly has been completed, unless noted otherwise. Additional info and videos are available on our website: brinly.com Step 1 PLOW FR AME Align the two adjusting brackets (25) as... - Page 9 ASSEMBLY ================================================================================================== Step 2 CR ANK HANDLE Slip trunnion (27) through the hole in each adjusting bracket. Insert the crank handle (13) through the hole in the side of the trunnion (27). - next add a spacer (14), the two 5/8" jam nuts (40), and then thread into the threaded tube (11).
- Page 10 ASSEMBLY ================================================================================================== NOTE: The Plow comes partially assembled and attached to the Frog (Part 19). The Plow parts are not illustrated on this step for better visibility on these assembly illustrations. Step 4 PLOW BOTTOM AND STANDARD Align the landside (22) and frog (19), as illustrated here.
- Page 11 ASSEMBLY ================================================================================================== NOTE: The Plow comes partially assembled and attached to the Frog (Part 19). The Plow parts are not illustrated on this step for better visibility on these assembly illustrations. Step 5 PLOW FR AME AND BOTTOM Slide the standard (9) between the beams, as illustrated, aligning the LOWER remaining opening of the standard.
- Page 12 ASSEMBLY ================================================================================================== Step 6-B COULTER BLADE Install the coulter blade (18) on the fork (15) by inserting the axle (6) through one leg of fork (15). Attach the coulter Secure with: hub (8) to the coulter - (x2) Flat Washers, 5/8" (45) blade (18) using: - (x1) Cotter Pin, 1/8"...
-
Page 13: Use And Care
USE AND CARE ================================================================================================== MODEL: P P - 5 1 0 P L O W U S E & C A R E S E C T I O N SPECIFICATIONS PRE-ADJUSTMENT NOTE: During normal plowing, the right side Tractor Wheels will be riding in the previously plowed furrow. - Page 14 USE AND CARE ================================================================================================== 6. Adjust the Plow Coulter to the highest position. 8. The rest of the furrows will be made with the tractor tires in the previously cut furrows; therefore: The Pitch (depth) of the plow must now be readjusted to a 5"-6"...
-
Page 15: Tips & Adjustments
USE AND CARE ================================================================================================== TRACKING ADJUSTMENT For most plowing conditions, the landside will be properly adjusted (Step 4 of the assembly), enabling the plow bottom to react like a rudder while ground engaged. 1/2" Optional Adjustments / Tracking Troubleshooting: Hex Nuts Loosen before Standard adjusting the... - Page 16 USE AND CARE ================================================================================================== TRACTION COULTER ADJUSTMENT - WHEEL WEIGHTS are required under most plowing 1. The coulter should be adjusted to slice 2"-3" deep when plow is in the ground. make this adjustment by conditions. loosening the two hex nuts which secure the U-bolt and - TIRE CHAINS or rear Chevron Tires (agricultural tires) then move the coulter assembly standard up or down are also recommended with the plow.
-
Page 17: Maintenance
NOTE: When lubricating bearing, it is recommended that Toll-Free: 877-728-8224 you use multipurpose grease. chat online: www.brinly.com - PREVENT RUST: For smooth operation and to prohibit the formation of rust on the crank, keep a light coating of Email: customerservice@brinly.com oil on threads. -
Page 18: Warranty
WARRAnTY PLOWS The limited warranty set forth below is given by Brinly-Hardy Company with respect to new merchandise purchased and used in the United States (its possessions and territories) and Canada. Brinly-Hardy company warrants the products listed below against features of the product shall void this warranty.
