- Page 1 Wireless Door Detector User's Manual ZHEJIANG DAHUA VISION TECHNOLOGY CO.LTD V1.0.0...
-
Page 2: Foreword
User's Manual Foreword General This manual introduces the functions and operations of the wireless door detector (hereinafter referred to as the "door detector"). Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will result in DANGER... - Page 3 User's Manual of their respective owners. ● Please visit our website, contact the supplier or customer service if there is any problem occurred when using the device. ● If there is any uncertainty or controversy, please refer to our final explanation.
-
Page 4: Important Safeguards And Warnings
User's Manual Important Safeguards and Warnings The following description is the correct application of the device. Please read the manual carefully before use to prevent danger and property loss. Strictly conform to the manual during application and keep it properly after reading. Operating Requirements ●... -
Page 5: Table Of Contents
User's Manual Table of Contents Foreword ........................................I Important Safeguards and Warnings ............................III 1 Introduction ......................................1 2 Checklist ........................................2 3 Design ......................................... 3 3.1 Appearance ....................................3 3.2 Dimensions ....................................4 4 Connecting to the Hub ..................................5 5 Installation ....................................... -
Page 6: Introduction

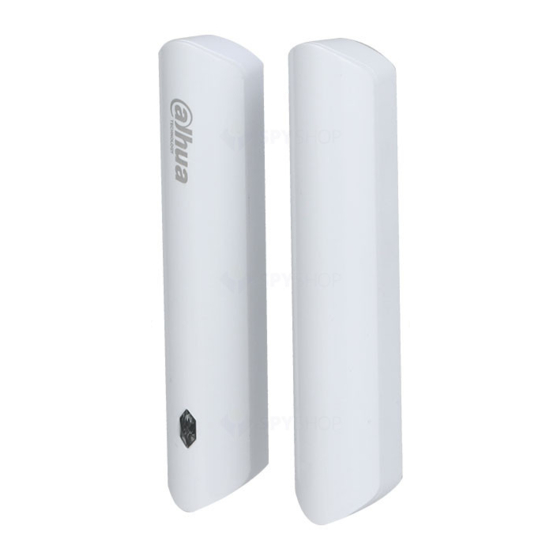

User's Manual 1 Introduction Door detector is a wireless detector consisting of a sensor and a magnet that can send a signal to the hub and trigger an alarm when an armed door is opened. It can be set up via the DMSS App for iOS and Android phones. -
Page 7: Checklist
User's Manual 2 Checklist Figure 2-1 Checklist Legal and regulatory User’s manual information Table 2-1 Checklist Item Name Quantity Item Name Quantity Door detector User's manual Double-sided Legal and regulatory adhesive tape information Cable Screw package... -
Page 8: Design
User's Manual 3 Design 3.1 Appearance Figure 3-1 Appearance Table 3-1 Structure Name Description ● Flashes green quickly: Pairing mode. Indicator ● Solid green: Alarm event is triggered. Peripheral port Connect the peripheral with the alarm cable. On/O button Turn on or turn o the door detector. The tamper mode of the accessory, which reacts to the Tamper button detachment of the body. -
Page 9: Dimensions
User's Manual 3.2 Dimensions Figure 3-2 Dimensions (mm[inch]) 21.0 [0.83] 21.3 [0.84]... -
Page 10: Connecting To The Hub
User's Manual 4 Connecting to the Hub Prior to connection with the hub, install the DMSS App on your phone. Make sure that you have installed the latest version of the App. Interfaces and functions might vary with different added devices, and the actual interface shall prevail. -
Page 11: Installation
User's Manual 5 Installation Prior to installation, connect the door detector to the hub and check the signal level at the installation location. We recommend installing the door detector in a place with the signal strength of at least 2 bars. We recommend installing the door detector with expansion screws. -
Page 12: Door Detector Configuration
User's Manual 6 Door Detector Configuration You can view and edit general information of the door detector. 6.1 Configuring the Door Detector On the Hub interface, select the door detector as needed from the accessory list, and then you can configure the parameters of the door detector. -
Page 13: Viewing Status Of The Door Detector
User's Manual Parameter Description ● Select from high, low, and automatic. Transmit Power ● The higher the transmission power, the farther the transmission and the higher power consumption. Cloud Update Update online. Delete the online accessory. Delete Go to the Hub interface, select the accessory from the list, and then swipe left to delete it. - Page 14 User's Manual Parameter Value Active status of the 24 h protection zone. 24 H Protection Zone ● : Enable. Status ● : Disable. Program Version The program version of the door detector.
-
Page 15: Appendix 1 Cybersecurity Recommendations
User's Manual Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks. - Page 16 User's Manual According to business and management requirements, reasonably add users and assign a minimum set of permissions to them. Disable Unnecessary Services and Choose Secure Modes If not needed, it is recommended to turn off some services such as SNMP, SMTP, UPnP, etc., to reduce risks.
- Page 17 User's Manual...
