Summary of Contents for Mojave MA-37
-
Page 1: Table Of Contents

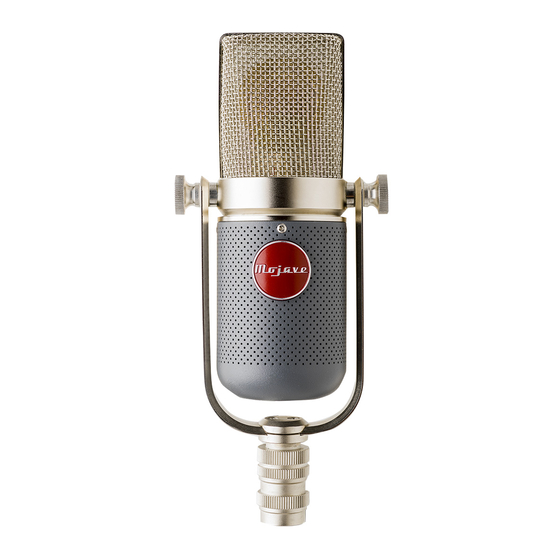

MA-37 Multi-pattern Vacuum Tube Condenser Microphone Please visit www.mojaveaudio.com for more information including: • Recording Tips • FAQ’s • Warranty Registration • Customer Service CONTENTS CONTENTS INTRODUCTION UNPACKING AND INSPECTION GENERAL INFORMATION SAFETY INSTRUCTIONS OPERATION CARE OF YOUR MICROPHONE TECHNICAL SPECIFICATIONS... -
Page 2: Introduction
Condenser Microphone. Your MA-37 was carefully designed and constructed using only the finest materials. The MA-37 microphone is capable of delivering superb performance and, with minimal care, will do so for many years. Your MA-37 was thoroughly tested and given a 24-hour factory burn in prior to shipment. -
Page 3: General Information
The MA-37 uses a line fuse for protection. Never replace this fuse with one of a higher current rating. Use only that type which was supplied with the unit. The power supply cord that is supplied with your MA-37 is a standard “business machine”... -
Page 4: Operation
Your MA-37 was thoroughly checked and burned-in before leaving the factory. Before using it for the first time, we recommend connecting the MA-37 to its power supply and letting it warm up for at least thirty minutes. Moisture build-up on the capsule or on the other high-impedance components within the microphone can cause random noise or static. -
Page 5: Care Of Your Microphone
6. Do not expose the microphone to dusty, smokey, or humid environments. 7. Any repairs must be performed by a qualified technician. Other than the EF-86 tube, there are no user serviceable parts in the MA-37. For tube replacement instructions, please contact support@mojaveaudio.com 8. -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor, single membrane DIAPHRAGM: 1-inch diameter, gold sputtered DIAPHRAGM THICKNESS: 6-micron POLAR PATTERN: Choice of cardioid or omni; via mechanical shutter FREQUENCY RESPONSE: 30 to 18,000 Hz. ±3 dB ("M" setting) SENSITIVITY: -46 dBv referred to 1 volt per pa. -
Page 7: Polar Response
POLAR RESPONSE Type: Multi-pattern POLAR PATTERN FREQUENCY RESPONSE... -
Page 8: Polar Pattern Selector
at (M), 100Hz (V1) and 200Hz (V2). As the MA-37 has an extended low frequency response, the bass cut is useful in cleaning up the bottom end. V1 is useful for instruments such as acoustic guitar. -
Page 9: Warranty
WARRANTY Your Mojave Audio product is warranted to the original owner for a period of two years. Mojave Audio guarantees this product to be free from electrical and mechanical defects and will repair or replace defective components or replace the microphone at Mojave Audio's option. Should service be required for your Mojave Audio product, please contact support@mojaveaudio.com.
