图纸名称 PART NAME
林芳芳
设 计
2017.5.22
DESIGN
校 对
IGENIX IG355B(CE-BD83CM-SQ)说明书
蒋卨敏
CO.BY
标准化
STANDARD
图样标记
业务
刘翔
seller
批 准
AUTHORIZE
技术要求
1.
尺寸：16K；
2.
说明书印刷颜色：单色；
3.
样板需送设计部门封样；
4.
制件必须满足QMB-J53.005 产品说明书及其它类似印刷件技术规范。
5.
需要符合美的冰箱事业的最新版《QMB-GC08.007 有害物质管理规定》的限值要求。
标记
MARKER
①
自订单MO-629088开始更新整体版面
②
自订单MO-654838开始删除封面Batch code 字样
③
自即日起开始更新整体版面
④
自订单MO-865211开始更新第8页内容
⑤
说明书递交文档
版本号
重量(g)
REL
REV.NO.
WEIGHT
4
共
页
TOTAL SHEETS
变更内容
图号/物料编码 PART NO.
材料 MATERIAL
比例
scale
1:1
第
页
MIDEA REFRIGERATION DIVISION
NO. OF SHEETS
16131000A24730
80g双胶纸
美的冰箱事业部
客户版面， 不可随意更改
修改日期
2018.07.16 林芳芳
2018.08.17
2019.04.20
2019.07.25
签名
林芳芳
林芳芳
韩文静
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iGenix IG355W
Summary of Contents for iGenix IG355W
- Page 1 说明书递交文档 图纸名称 PART NAME 林芳芳 设 计 图号/物料编码 PART NO. 2017.5.22 DESIGN 16131000A24730 校 对 IGENIX IG355B(CE-BD83CM-SQ)说明书 蒋卨敏 CO.BY 标准化 材料 MATERIAL STANDARD 80g双胶纸 图样标记 版本号 重量(g) 比例 业务 刘翔 REV.NO. WEIGHT scale seller 批 准 AUTHORIZE 美的冰箱事业部 共 页...

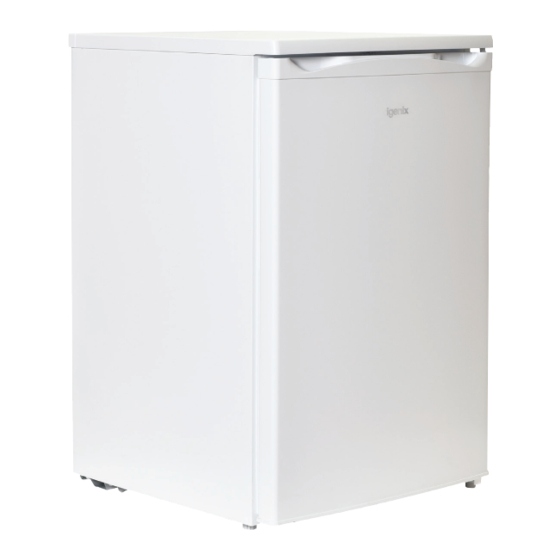

- Page 2 USER MANUAL 55cm Under Counter Freezer IG355W / IG355B Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...
-
Page 3: Table Of Contents
Important Safety Instructions ..........3-6 Appliance Overview ..............7 Specification .................8 Installation ................9-11 Operating Instructions ............11 Cleaning and Maintenance ..........12-13 Trouble Shooting Guide ............14 Disposal Information ............... 15 Fuse Replacement ..............15 Igenix Warranty Terms & Conditions ......16-17... -
Page 4: Important Safety Instructions
SAFETY INSTRUCTIONS Important: This appliance is not intended for use by persons including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. •... - Page 5 • Ensure that the refrigerant circuit is not damaged. • The refrigerant of this product is R600a which is flammable. • Ensure when moving the appliance or during installation that the cooling system does not get damaged. • DANGER: Risk of child entrapment - Before you dispose of your old refrigerator or freezer, remove the doors and leave the shelves in place so that children cannot easily climb inside.
- Page 6 WARNING: Risk of fire / flammable materials. • When positioning the appliance, ensure the supply cord is not trapped or damaged. • Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. • Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
- Page 7 The table below contains general guidelines on the storage of food in the refrigerator. Refrigerator Type of food location Fridge door • Foods with natural preservatives, such as jams, juices, drinks, condiments. • Do not store perishable foods. Crisper bin (salad •...
-
Page 8: Appliance Overview
APPLIANCE OVERVIEW Thank you for purchasing your new Igenix under counter freezer. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 10: Installation
INSTALLATION Location and Air Circulation • The appliance must stand vertically on a flat, even surface, to level the appliance turn levelling feet until the appliance is as level as possible. • This appliance has been designed to operate in ambient temperatures between 16°C and 38°C. - Page 11 To change the direction of the door, please follow these instructions: 1. Ensure the appliance is unplugged and empty. 2. Remove the 2 Screws on the back of the top cover (Fig 1) 3. Lift the rear of the lid and push forward to remove from the front locators.
-
Page 12: Operating Instructions
15. Put the top cover back and screw it into place securely (Fig 10) 16. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. 17. -
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE Switch off the electrical supply and remove the plug from the mains socket before cleaning. Interior Note: The interior of the refrigerator should be cleaned regularly to avoid odor. Remove all food from the appliance and cover to help keep cool. Remove all the shelves and salad crisper carefully from the appliance and wash in warm clean water with a soft cloth and dry thoroughly. - Page 14 Exterior • Use a clean, soft cloth dampened in soapy water to wipe the exterior surface of the appliance and dry thoroughly. • Use a vacuum cleaner to remove dust from underneath the appliance and from around the compressor which is situated at the back of the appliance, regularly to maintain adequate ventilation.
-
Page 15: Trouble Shooting Guide
TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Fault Possible cause Solution... -
Page 16: Disposal Information
DISPOSAL INFORMATION The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in normal unsorted municipal waste. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. -
Page 17: Igenix Warranty Terms & Conditions
lgenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product. Upon registration we will cover your product for a period of 24 months from the original purchase date against any mechanical or electrical defects. - Page 18 To qualify for the 2 year warranty you must register your product within 30 days of purchase. The full Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk...
