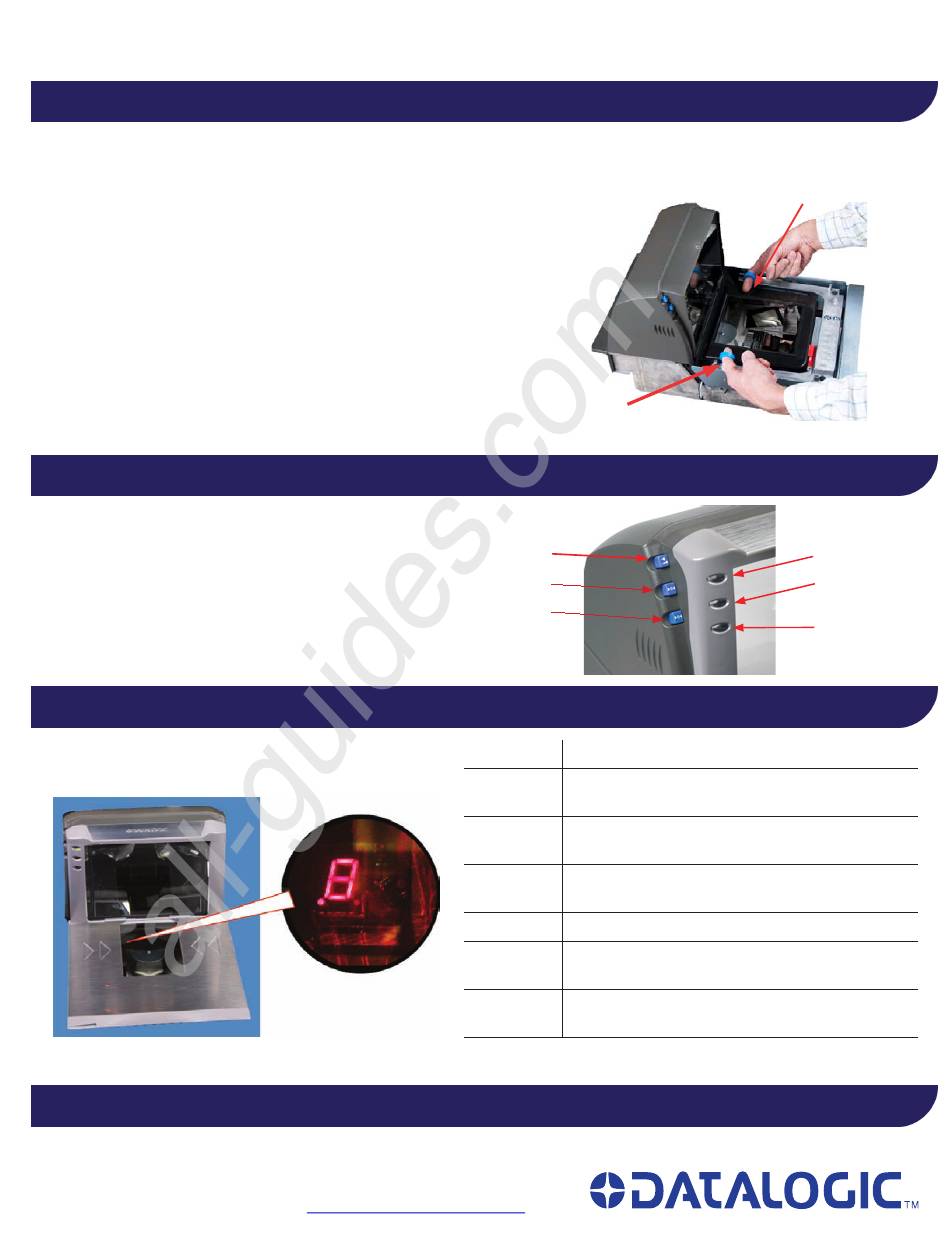

Magellan 8500Xt Quick Reference Card

Magellan
See the Magellan 8500Xt Product Reference Guide (PRG) for detailed instructions on these procedures.
1. Unpack the Magellan 8500Xt from the shipping carton.
2. Remove the top platter and supporting foam.
3. Make necessary cable connections between the scanner/
scale, remote display, POS terminal and power source. (See
"Cabling" on the other side of this sheet.)
4. Install the scanner/scale in-counter in the orientation and
position described. Confirm scanning and weighing func-
tions.
5. Calibrate and certify the scale per state and local Weights
and Measures requirements.
6. Install the top platter, remove the protective vinyl sheet
from the glass and wipe down both windows.
*Hold Volume/Tone Button down for 10 seconds
to reset the scanner/scale and initiate self test.
**EAS is optional (not present on all models).
The diagnostic error display is located left of the motor/
facet wheel, visible through the horizontal window.
NOTE: Error codes displayed should be supplied with unit serial number when making RMA request to manufacturer.
Datalogic Scanning Tech Support
541-683-5700 (USA only)
6:30am - 5:00pm Pacific Time
Monday thru Friday
All manuals and user guides at all-guides.com
8500Xt QUICK REFERENCE CARD
™
Installation Procedure and Product Handling
Operator Buttons and Indicator LEDs
*Volume/Tone Button
Scale Zero Button
Contact your nearest Datalogic Support
Center. For a full listing of Datalogic
Support Centers and documentation:
www.scanning.datalogic.com
When moving the unit, use the lift handles seated beneath
the top platter, down inside the chassis, and must be ro-
tated up as shown.
DO NOT ATTEMPT TO LIFT THE PRODUCT BY THE BONNET.
**EAS Button
Diagnostic Error Display
CODES
.0 or .1 Check POS connections & programming (see
PRG), then call Datalogic Tech Support.
.7 See "Scale Error Reporting" in PRG, then call Data-
logic Tech Support.
.8 Check Remote Display (see PRG) then call Data-
logic Tech Support.
.9 Check EAS cable, then call Datalogic Tech Support.
.C Recalibrate scale (see PRG), then call Datalogic
Tech Support.
.2 thru .6,
Call Datalogic Tech Support
.A, .B, .E, (.)
Escalation Support Options
Scan LED
Scale LED
EAS LED
ACTION
