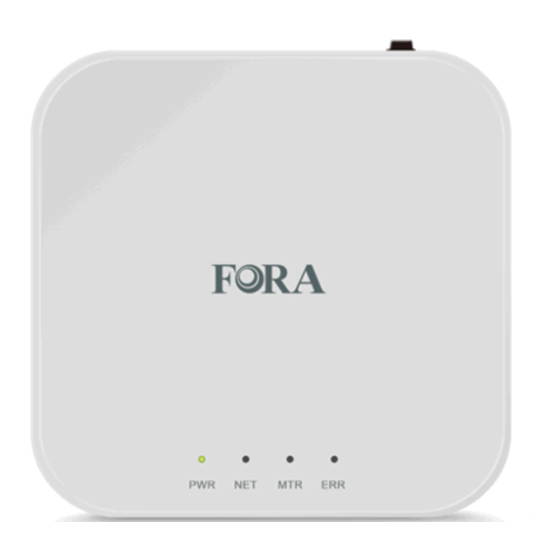

Fora TD-9017G Quick Start Manual

TeleHealth Gateway
Quick Start Guide
315-9017700-003
SETTING UP THE GATEWAY
Plug the power adapter included with
1
the unit into the back of the device.
Do not use any other adapters with
the gateway.
Plug the power adapter
2
into a wall outlet.
Press the power switch on the back
3
of the device (I is on, O is o ).
4 The PWR indicator will turn solid green
when ready for use.
CONNECT YOUR FORA DEVICES TO THE GATEWAY
To connect your FORA devices to the FORA TeleHealth
please activate Bluetooth function on your FORA devices (for
individual FORA devices, please refer to user manuals for informa-
tion on Bluetooth activation).
As each measurement is performed, the FORA devices will
automatically transmit the data to the gateway. And then, the
gateway will transmit the data to the telehealth system.
NOTE:
Transmission time may vary depending on the 4G LTE network
condition.
LED INDICATORS
LED Indicators Gateway Status Description
After turning on the gateway, a
Ready for use /
green PWR indicates that the
Standby
PWR NET MTR ERR
gateway is ready.
Connected to the MTR will be on when FORA
FORA device devices are connected to the
PWR NET MTR ERR
gateway.
NET will be on when the gateway
Connecting to the
is connected to the telehealth
PWR NET MTR ERR TeleHealth server
server.
NET (orange)/MTR (blue) starts
Data
flashing when data is being
transmission in
transmitted via 4G LTE
PWR NET MTR ERR
progress
netwook/Bluetooth connection.
NET/MTR stops flashing when
Data data transmission is completed.
Gateway,
transmission The FORA device that has
PWR NET MTR ERR
completed completed the transmission will
turn off automatically.
ERR is On with one or multiple
beeps. Please refer to
Error
TROUBLESHOOTING for more
PWR NET MTR ERR
information.
Please scan our QR Code to access more languages.
