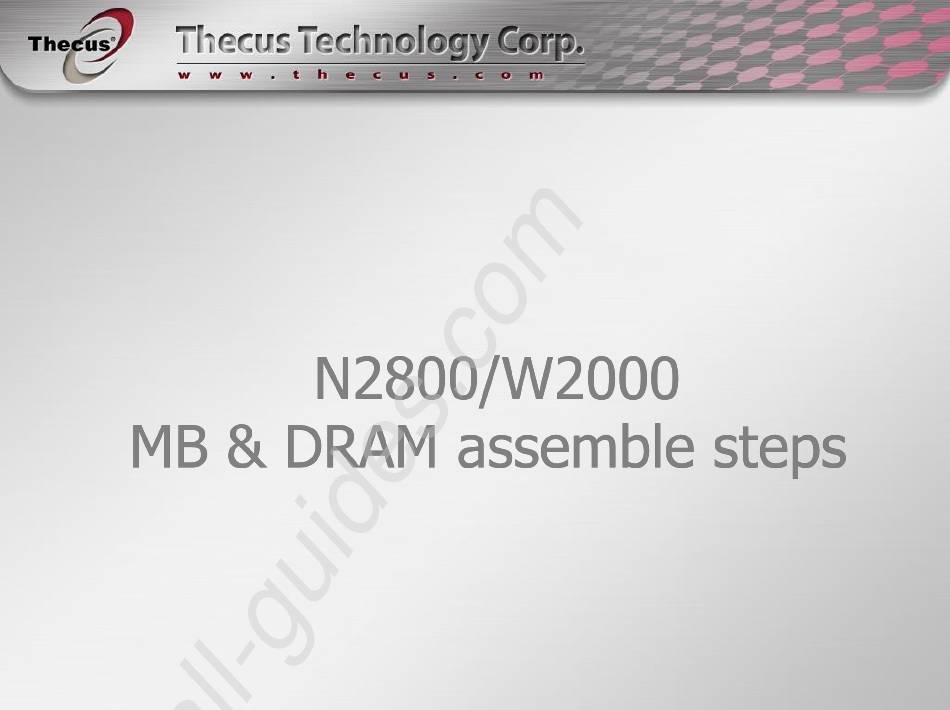

- Page 1 All manuals and user guides at all-guides.com N2800/W2000 MB & DRAM assemble steps V1.2 Mar 09, 2015...
- Page 2 All manuals and user guides at all-guides.com Remove top cover 4 screws M3*4mm 4304001111 背板螺絲 For BTN Board Round Head,Ni Coating...
- Page 3 All manuals and user guides at all-guides.com Remove back panel 4 screws 薄皿型頭 M3x5 screw 4304007311 M3*0.5,L=5mm,Flat Head,NI...
- Page 4 All manuals and user guides at all-guides.com Remove FAN cable...
- Page 5 All manuals and user guides at all-guides.com SD card reader cable red line=PIN1 IP_USB1 red line PIN1 Remove MB screw M3*4mm 4304001111 背板螺絲 For BTN Board Round Head,Ni Coating...
- Page 6 All manuals and user guides at all-guides.com LOGO CABLE LOGO_LED1 ICON CABLE LED_J1 Remove ICON & LOGO board CABLE (The cable red line=Pin1)
- Page 7 All manuals and user guides at all-guides.com Remove HDD BP 2 screws 薄皿型頭 M3x5 screw 4304007311 M3*0.5,L=5mm,Flat Head,NI...
- Page 8 All manuals and user guides at all-guides.com Slide MB out and replace DRAM module * If install single DRAM module, it is must install at upper DIMM slot.
- Page 9 All manuals and user guides at all-guides.com After the MB is slid out, DRAM will be displayed. Please note that DRAM is installed in the upper slot.
- Page 10 All manuals and user guides at all-guides.com If replacing DRAM is needed, please spread out the DRAM lock latches. So the DRAM will pops up. Remove the original DRAM. And then insert the new DRAM into the connection at an angle 45 degrees. Press down on the DRAM so that it is secured with both memory lock latches.
- Page 11 All manuals and user guides at all-guides.com ICON CABLE LOGO CABLE Additional check point 1...
- Page 12 All manuals and user guides at all-guides.com Additional check point 2 Check all cables inside the cage...
- Page 13 All manuals and user guides at all-guides.com...
