JT707A E-seal Tracker
Shenzhen Joint Technology Co., Ltd
1

Advertisement

Table of Contents
loading

Related Manuals for JoinTech JT707A

Summary of Contents for JoinTech JT707A

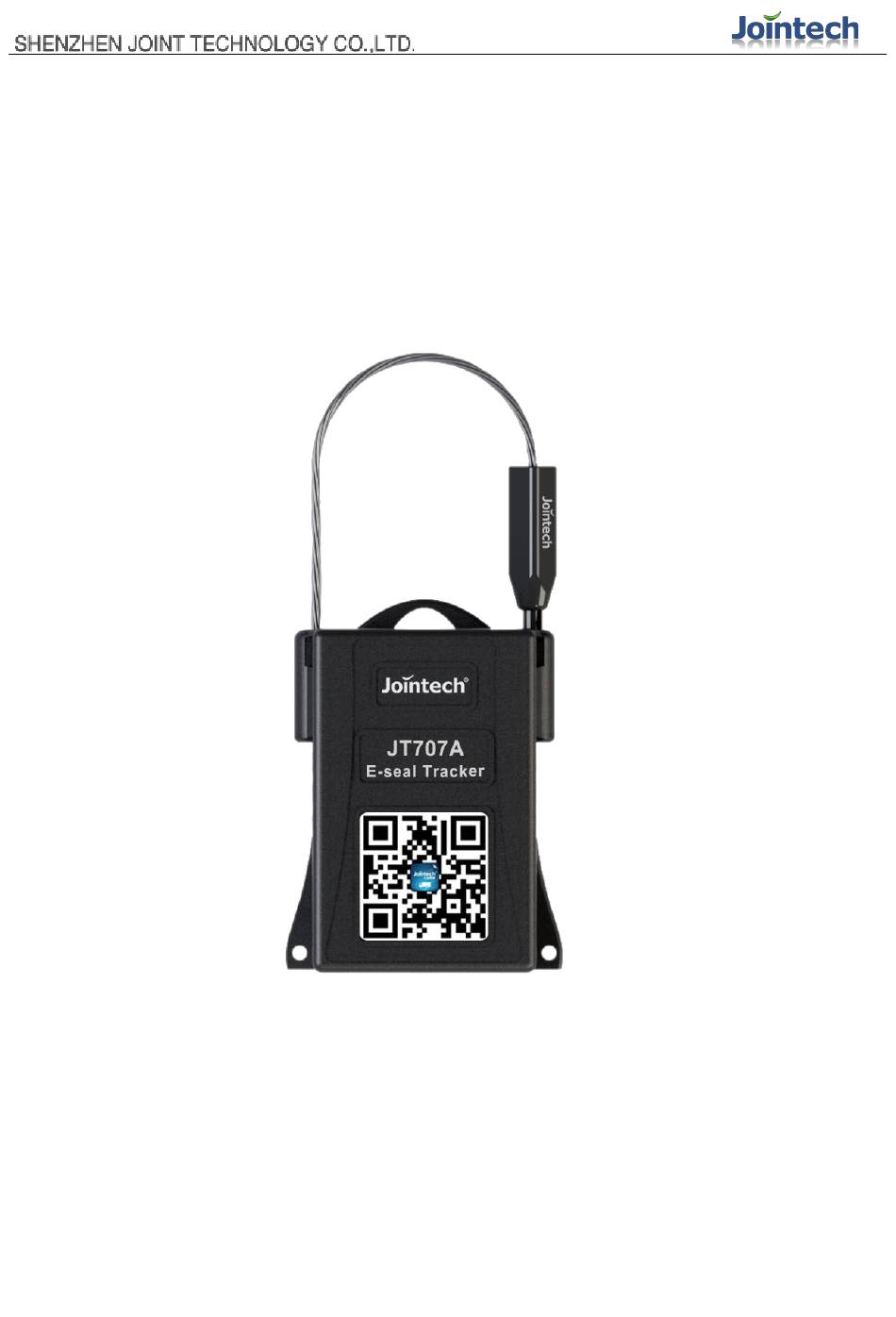

  • Page 1 JT707A E-seal Tracker Shenzhen Joint Technology Co., Ltd...

  • Page 2: Table Of Contents

    1. Application ....................................... 3 2. Standard Introduced ..................................3 3. Product introduction ..................................3 3.1. Product and accessory ................................3 4. Function Introduction ..................................4 4.1. Remote Tracking of Device’s Status............................4 4.2. Smart Working Mode ................................4 4.3. Status of Lock Rope ................................4 4.4.

  • Page 3: Application

    IEC60529/GB4208-2008 Housing Protection Level 3. Product Introduction JT707A ,an Intelligent E-lock for mobile assets management solutions ,boasts the tiny size,easy installation and low cost which supports GPS. Real-time tracking information for assets and remote changing of product’s configuration are available. Coupled with rechargeable or disposable Li-ion battery, JT707 can be re-used or one-time-used, which is a set of safe, intelligent and convenient solutions for mobile assets management.

  • Page 4: Functionintroduction

    4. FunctionIntroduction 4.1. Remote Tracking of Device’sStatus Device’s status can be captured by means of real-time tracking, such as speed,direction,GPS location and status of lock rope, which secures the shipping in a more efficient way. 4.2. Smart Working Mode Device in sleep can be waken up by inserting or cutting rope. It would be convenient for clients to be kept informed of assets’...

  • Page 5: Working Time

    Low battery alarm Battery Battery Recharge Li-ion battery, capacity 1500mAh; management Low battery management Configuration Configuration USB PORT, GPRS 4.6. Continuous Working Period Upload Interval GPS, GSM Signal Normal to Work GPS, GSM Signal Poor to Work 30 Minutes/Per Data 16 Days 8 Days 4 Hours/Per Data...

  • Page 6: Operation Device

    5. Operation Device 5.1 Recharge Put device on the “Config&Recharge BOX”, switch to recharge status, the “Config&Recharge BOX” the other side connect to adapter, then red LED will be light. Note: LED turn to green means full charged. Note: When you are using adapter output 5V/1A, recharge to 90%, will spend 100 minutes, recharge to 100%, will spend 150 minutes.

  • Page 7: Device Configuration

    5.2 Device Configuration 5.2.1 PC tool to configure device Put device on the “Config&Recharge BOX”, switch to config status, the “Config&Recharge BOX” the other side connect to computer, then green LED will be light. Then install the config cable driver.
  • Page 8 Check the cable driver and COM port status. Running the PC tool to set device parameter...

  • Page 9: Gprs/Sms(Inserted Micro Sim Card)

    5.2.2 GPRS/SMS(Inserted Micro SIM Card) 5.2.2.1 To Query Terminal’s Basic Information Send (700160818000,1,001,BASE,1) commands Commands Query terminal version descriptions Premise of commands Parameters descriptions Relevant Returns the following message： function 1. Terminal version descriptions 2. Alias of terminal ID 3. GSM model version 4.
  • Page 10 Internet information： 460means Mobile Country Code (MCC)，it represents China； 00 telecom operators network NO. （China Mobile--00，China Unicom--01）； 460,00,4243,6877 4243 Base station NO.---cell ID information； 6877 Location Area Code ---LAC information。 CELL ID and LAC is hexadecimal，which means 4243 transform into 16963 by decimal .
  • Page 11 Items can setbe null If the backup IP & port no need to set, user-name and password will be the following： (700160818000,1,001,BASE,10,1,211.154.112.98,1088,,,CMNET,,) 211.154.112.98IP address: server address for uploading GPRS. PS: The first IP is master IP and the latter is slave IP. 1088 port: No.

  • Page 12: Install Micro Sim Card

    descriptions 5.3 Install Micro SIM Card Remove the device top side cover.
  • Page 13 Insert Micro SIM Card, then recover the top side cover. Note: Device within Embedded-SIM, as below picture:...

  • Page 14: Environmentadaptation

    6. EnvironmentAdaptation Low temperature type battery Temperature: -40℃~55℃ High temperature type battery Temperature: -20℃~75℃ Humidity It can work for 48 hours under the testing of +50℃and 95% non-condensing humidity. Impact The device will be intact under the testing of half sine wave, 5G acceleration,pulse duration of 11ms by impacting three times from each axis.

  • Page 15: Coreparameters

    7. CoreParameters Size 46mm*21mm*52mm Length of Lock Rope 300mm, with unique ID for each rope Weight about 67g Housing material Nylon Protection grade IP67 -10°C -- 45°C Working Temperature -40°C -- +85°C Storage Temperature Basic Relative Humidity 5%—95% parameters Av. current<100mA Working Current Standby ：<20uA 1500mAh,3.7v rechargeable Li-ion, 500 data upload...
  • Page 16 GSM 850MHz/900MHz,DSC1800MHz,PCS1900MHz。 Communication Mbps: GPRS data downstream traffic: Max 85.6kpbs GPRS data upstream traffic: Max 85.6kpbs Coding format: CS-1、CS-2、CS-3 and CS-4 Embedded protocol GPS and Beidou are both supported Beidou Track -167dBm Capture Sensitivity 149dBm Re- capture -161dBm Cold start -148 GPS module GPS L1 dBm Hot start-...
  • Page 17 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
