- Page 1 JT709A User Manual V1.1 Shenzhen Joint Technology Co.,Ltd. 05/24/2021 1 / 41...
-
Page 2: Table Of Contents
Host IP/domain name, port, APN, APN account configuration ..................21 Sleep mode-wake up data upload interval and RTC timing interval ................23 Self-editing command content according to JT709A protocol manual-Tracking mode configure ....23 Work Mode Description ..................................25 Standby mode ....................................25 Deep sleep mode .................................. - Page 3 Alarm switch configure ................................38 Jointech Assets Management Platform ..............................39 Login Account ......................................39 Login and Manage Assets ..................................39 Device Installation ......................................39 Device Maintenance ......................................40 FAQ ............................................40 Contact Us .......................................... 41 3 / 41...
-
Page 4: Copyright And Disclaimer
The user needs to install and fix the product, charge the battery according to the specifications, and dispose of the waste parts and batteries of the product in accordance with local policies and regulations. Jointech is not responsible for any loss, injury, environmental pollution, etc. caused by using or quoting this product. -
Page 5: Product Functions
power consumption, it adopts low power consumption design and long working time;Built-in wireless communication module, real-time online monitoring;Built-in GPS positioning module, global positioning tracking; Security monitoring, illegal unlocking alarm and other functions.It is suitable for remote monitoring of containers, flatbed trucks, box-type trucks, etc. Provide customers with lower cost, safe, efficient and intelligent mobile asset positioning management solutions. - Page 6 notify the platform to update the password. Dynamic password associated fence In the custom fence, the platform sends a unlock dynamic password to unlock. RFID authorization card unlock Use authorized RFID card, swipe card to unlock. RFID authorization card associated The authorized RFID card can only be fence unlock unlocked inside the fence.
- Page 7 enter deep sleep mode, and the user can configure the remaining power percentage for entering deep sleep; Tracking mode: device works continuously and does not enter sleep ; Standby mode: sleep by default; When the wake-up condition is detected, the preset data upload time interval works, and when there is no other wake-up event, it sleeps.
-
Page 8: Product Specifications
Product Specifications Items Specifications Dimension( L x W x H ) 110mm*82mm*35mm Lock rope length 300mm (can be customized) Lock rope material 304 stainless steel Lock rope diameter Lock rope diameter 3.5mm, outer diameter of rubber Host weight About 390g (including lock rope) Shell material Nylon fiber Built-in battery... -
Page 9: Standard Accessories And Optional Accessories
/B20/B25/B26/B28/B34/B38/B39/B40/B41/B66 UMTS/HSPA+: B1/2/B4/B5/B6/B8/B19 GSM/GPRS/EDGE: 850/900/1800/1900MHz SIM card Micro-SIM card Bluetooth Support Bluetooth5.0 Bluetooth frequency:2.4GHz ±30KHz Bluetooth communication distance:2-10 meter Bluetooth antenna signal strength:＞4 dBm Standard Accessories Optional Accessories Standard Optional Name Picture accessories accessories Main unit & lock rope ● RFID card (2 pcs) ●... -
Page 10: Appearance
Appearance 10 / 41... -
Page 11: Front View

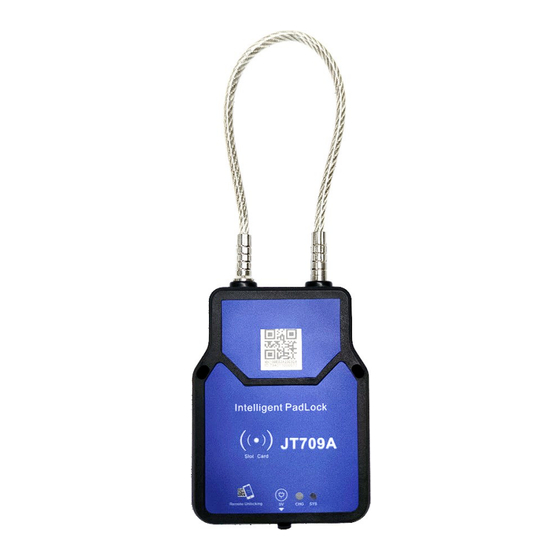

Front View ①Lock end：Non-removable end ②Lock end：The end can be pulled out after unlocking ③Installation hole: Fix the device with ties ④Device ID number & QR code ⑤Swipe RFID card area ⑥Power charging port ⑦Red light: Charging /green light: charging full ⑧Blue light: cellar network status indicator Rear View Back (with adhesive shockproof pad) -
Page 12: Internal View After Opening Back Cover
Internal View after opening back cover Back cover Internal view ① Waterproof rubber ring ②GPS Module ③Cellular Module ④SIM card slot: Micro SIM card ⑤Internal Battery.4500mAH 12 / 41... -
Page 13: Bottom View
① External charging port：DC 5V 1A is standard charging voltage.Please use the charging adapter and its matching charging cable provided by Jointech. It is recommended to use a stable and reliable indoor charging power supply to charge the device. It usually takes about 6 hours to charge from 5% low battery to 100% full battery. -
Page 14: Install Micro-Sim Card（Ignore This Section If Sim Card Inserted Already
Use a special Allen screwdriver to loosen the screws of the back cover, and then refer to this article "Install the Micro-SIM Card". Please confirm the cellular communication module used by the current device with the sales staff of Jointech, if the current device uses a 2G communication module, Please communicate with the local mobile operator and confirm that the SIM card has activated the GPRS Internet access function and can connect to the Internet. - Page 15 ⑤ ⑥ ① Tear off the entire back cover rubber shockproof pad Use a special hexagonal screwdriver to remove the 8 screws on the back cover ② Use a flat-blade screwdriver to insert into the lock hole, push it toward the back cover, open ③...
-
Page 16: Definition Of Indicator Status And Buzzer Sound
Definition of Indicator Status and Buzzer Sound Indicator light status LED Indicators Status Description Flashing once every 1 The device not located(GPS), and not second (slow flashing) registered or connected to a cellular network Flashing once every 3 The device not located(GPS), and registered second and connected to the cellular network. -
Page 17: Wake-Up Methods
swiping the RFID card successfully Device locks automatically Send commands to unlock if the lock rope is not pulled out in 10 seconds after unlocking, device various the buzzer will sound once every second until the lock rope is channels (SMS, RFID card, inserted. -
Page 18: Basic Configuration
Install Joint MO APP on your mobile phone: Method1-Android/IOS: Please search “Joint MO” on Google play store or IOS store ,and install this app; Method2-Android: Scan below picture via mobile phone browser app,get the apk file’s website link from jointech website. - Page 19 Enter User and Pass Main Interface Open Bluetooth of mobile Scan QR code of device phone(Optional) 19 / 41...
-
Page 20: Query Firmware Version, Device Id
Query firmware version, device ID Currently,we use the “Joint MO” app for example to query the setting. Commands O&M→ Click Scan button Scan QR code of JT709A 20 / 41... -
Page 21: Host Ip/Domain Name, Port, Apn, Apn Account Configuration
Press Base01-query terminal basic info. Command Response Host IP/domain name, port, APN, APN account configuration Network settings→ Press Scan button Scan QR code of JT709A 21 / 41... - Page 22 Press Query button Get current GPRS network setting Switch to configure network-> Edit Press Save button,get responce Parameters 22 / 41...
-
Page 23: Sleep Mode-Wake Up Data Upload Interval And Rtc Timing Interval
Sleep mode-wake up data upload interval and RTC timing interval Press Base06-Query/set interval Edit parameters,and Send command Self-editing command content according to JT709A protocol manual-Tracking mode configure Command O&M Switch Custom instruction 23 / 41... - Page 24 Edit command contents and Send (700160818000,1,001,BASE,6,1,60,0) Command response // tracking mode 24 / 41...
-
Page 25: Work Mode Description
The device is in continuous working status, and the device still keeps tracking mode even when restarting, unless the user turns off the tracking mode. When the remaining power is less than 5%, it enters the default deep sleep mode. Working Hours JT709A Data upload time interval/work Working hours model... -
Page 26: Unlock And Lock
The unlock command issued by SMS is shown in the figure below: platform unlock For platform login, refer to the section of this article "Jointech IOT Intelligent Mobile Asset Management Platform", and for specific unlocking methods, refer to the platform operating instructions. - Page 27 1) The JT709A device has been registered and online in Jointcloud2.0 Platform. 2) The mobile App “JointCloud2.0” is pre-installed on the mobile phone; 3) Turn on the Bluetooth function of the mobile phone, login to the App to unlock. As shown below: Install APP- JointCloud2.0...
- Page 28 Method2-Search device ID Unlocking via Bluetooth Unlocking(Please register the unit in Unlocking successful platform before do this) 28 / 41...
-
Page 29: Unlocking By Rfid Authorization Cards
Unlocking by RFID authorization cards When user gets the JT709A device, the two standard RFID cards have been registered as authorized unlocking cards. After the device is turned on, place the RFID card in the RFID sensing area and swipe the card the buzzer will beep, then the motor will rotate, and the user can pull out the cable to unlock;... -
Page 30: Sms Related Configuration
If there is no sound prompt on the JT709A device, check whether it is in deep sleep mode or whether the battery is exhausted, and please charge battery of the device in time. Lock Under normal circumstances, after the cable is pulled out, insert the pull-out end of the cable into the bottom of the lock hole. -
Page 31: Disable/Enable Sms Or Calling Wake Up Function
Disable/Enable SMS or Calling wake up function It can be configured to wake up the device by authorized VIP number, phone call or SMS. By default, it is closed. Please note that after turning on this function, the power consumption of the device will increase a lot. Press Base07-Query/set terminal sleep Edit parameters,and Send command mode... -
Page 32: Rfid Authorization Card Configuration
RFID Authorization Card Configuration Refer to section <Manage device setting in “Joint MO” app> Query and add authorization RFID cards Add authorization RFID cards: Press ELOCK15-Query/add/delete/unlock Edit parameters-1 authorization cards 32 / 41... - Page 33 Edit parameters-2,and Send command Command Response 33 / 41...
-
Page 34: On-Site Batch Swipe Card Registration
Query authorization RFID cards: Edit parameters-,and Send command Command Response On-site batch swipe card registration On-site batch swipe card registration,after send this command, swipe the RFID card one bye one on site to register the cards as authorization cards. The device’s buzzer will beep once swiped card successfully and the on-site swipe authorization channel will be automatically closed if didn’t swipe any card in 1 min. -
Page 35: Delete Authorization Rfid Cards
Delete authorization RFID cards Delete designated authorization RFID cards: Press ELOCK15-Query/add/delete/unlock Edit parameters-1 authorization cards 35 / 41... - Page 36 Edit parameters-2,and Send command Command Response 36 / 41...
-
Page 37: Geofence Configure
Delete all authorization RFID cards: Edit parameters-,and Send command Command Response Geofence configure Please configure the Geo-fence function on the Jointech Cloud Platform, refer to the "Manual of Jointech Cloud Platform". Alarm Configuration Alarm type and trigger conditions Support 10 kinds of alarm types: ①... -
Page 38: Alarm Switch Configure
10 seconds), an alarm data is triggered. Alarm switch configure User can disable GPRS/SMS channel for each alarm type. Please configure the alarm switch function on the Jointech Cloud Platform, refer to the "Manual of Jointech Cloud Platform". 38 / 41... -
Page 39: Jointech Assets Management Platform
Jointech Assets Management Platform Login Account When using it for the first time, the user needs to obtain the platform login username/password from the Jointech sales staff. Login and Manage Assets Login link：http://cloud.jointcontrols.com:8091/ After logging in to the platform, please refer to the Operation Manual of the platform to complete basic... -
Page 40: Device Maintenance
Device Maintenance During long-term outdoor use, dust, sand and other debris will enter the device through the keyhole, causing the device to fail to work normally. Users need to clean the device regularly to ensure their long-term work. Proceed as follows: 1. -
Page 41: Contact Us
Use the ”Joint MQ” app to check whether the host IP, port, and APN parameters are correct. Place the SIM card in another new JT709A device, and confirm that there is no problem with the SIM card itself. It has been recharged and the GPRS function has been activated.
