SAT CONTROL SM44M2HEL6M Instructions For Installation And Use Manual

Solar heliostat
Hide thumbs Also See for SM44M2HEL6M:

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM44M2HEL6M and is the answer not in the manual?

Questions and answers

Summary of Contents for SAT CONTROL SM44M2HEL6M

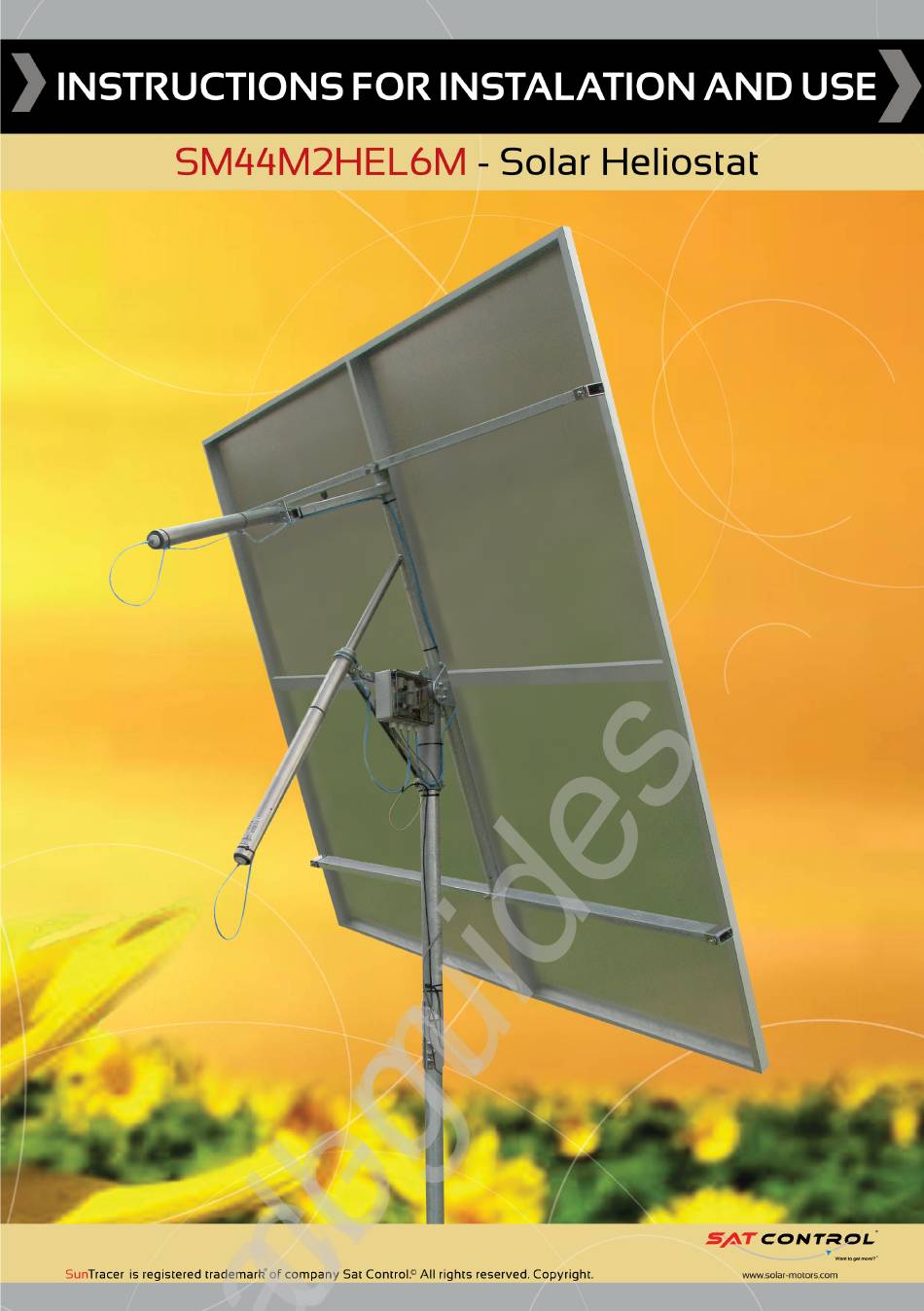

  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 All manuals and user guides at all-guides.com 5 pcs M8 x 120mm 4 pcs M8 x 50mm 2 pcs 2 pcs M12 x 90mm 6 pcs M8 x 30mm 8 pcs 1 pcs M10 x 50mm 8 pcs M6 x 10mm 1 pcs 8 pcs M12 x 20mm 2 pcs...
  • Page 3 All manuals and user guides at all-guides.com 1 pcs 1 pcs 2 pcs 2 pcs 1 pcs 2 pcs 2 pcs 4 pcs (4,2 x 9,5) 2 pcs 1 pcs...
  • Page 4 All manuals and user guides at all-guides.com 8pcs (M12x20mm) Mount them in to the holes as shown • 12pcs for M8 6pcs (M8x30mm) 6pcs M8 2pcs 2pcs...
  • Page 5 All manuals and user guides at all-guides.com Mount 6 screws (M8x30mm), 6 nuts M8 and • 12 washers M8 in to the holes as shown...
  • Page 6 All manuals and user guides at all-guides.com • Before you tighten screws, align vertical axis from the EAST- WEST side and the NORTH-SOUTH as shown in the figure...
  • Page 7 All manuals and user guides at all-guides.com 12pcs for M8 2pcs M8x14mm 6pcs M8 1pcs 1pcs 4pcs M8x50mm • Mount 6 screws, 6 nuts and 12 washers in to the holes as shown...
  • Page 8 All manuals and user guides at all-guides.com 5pcs M8 5pcs M8x120mm 10pcs for M8...
  • Page 9 All manuals and user guides at all-guides.com 5pcs M8x120mm 5pcs M8 10pcs for M8...
  • Page 10 All manuals and user guides at all-guides.com 4pcs M8 4pcs (D=40mm) 4pcs for M8 2pcs M8 Ø40.5 x 67mm 1pcs 1pcs M10x50mm...
  • Page 11 All manuals and user guides at all-guides.com 2nuts 2nuts 4pcs for M8...
  • Page 12 All manuals and user guides at all-guides.com...
  • Page 13 All manuals and user guides at all-guides.com Make sure that the two arms are perfectly parallel •...
  • Page 14 All manuals and user guides at all-guides.com 1pcs D10x36mm 2pcs 3pcs Ø7mm 2pcs M12 2pcs M12x90mm 4pcs for M12 2pcs (2motors) 1pcs D10x36mm Ø7mm...
  • Page 15 All manuals and user guides at all-guides.com M12x90mm...
  • Page 16 All manuals and user guides at all-guides.com motor A...
  • Page 17 All manuals and user guides at all-guides.com...
  • Page 18 All manuals and user guides at all-guides.com motor A motor B...
  • Page 19 All manuals and user guides at all-guides.com...
  • Page 20 All manuals and user guides at all-guides.com At the end of a panel 8pcs & 8pcs M6x10mm...
  • Page 21 All manuals and user guides at all-guides.com...
  • Page 22 All manuals and user guides at all-guides.com How to set the Motor Box! Followed pictures includes Solar Tracker panels instead of heliostats, dont be confused, setting the Motor Box is the same for Heliostats and Solar Tracker Panels!!! 2 screws are already inside the connector...
  • Page 23 All manuals and user guides at all-guides.com...
  • Page 24 All manuals and user guides at all-guides.com Tight screws like it’s shown...
  • Page 25 All manuals and user guides at all-guides.com Use cable ties as it‘s shown.
  • Page 26 All manuals and user guides at all-guides.com Make a big radius.
  • Page 27 All manuals and user guides at all-guides.com This two cables you already get connected. How to connect other two will be shown later!
  • Page 28 All manuals and user guides at all-guides.com 4 PCS: 4,2 x 9,5mm...
  • Page 29 All manuals and user guides at all-guides.com Before you connect power system be aware of plus and minus in a right terminal. Connect one wire into the plus and the other one into the minus!
  • Page 30 All manuals and user guides at all-guides.com It should look like on the picture! Wind sensor cable connect into the wind connector terminal.
  • Page 31 All manuals and user guides at all-guides.com White wire connect into the wind connector terminal. Brown wire connect into the plus pole like it’s shown on the picture!
  • Page 32 All manuals and user guides at all-guides.com...
  • Page 33 All manuals and user guides at all-guides.com FIRST CONNECTION OF TRACKER TO A PC OVER AN USB CONNECTION DRIVER INSTALLING • Before connecting USB cable, run VCPDriver_V1.1_Setup.exe, which is included in the archieve package. Click »Next« and than »Finish«. Note, that you have to be an administrator to install a driver.
  • Page 34 All manuals and user guides at all-guides.com • Connect your PC to the tracker using the enclosed communication cable. Use the USB port on your computer. • Computer will require its driver installation. • When the next window appear, click on »No, not this time« and than »Install the software automatically«.
  • Page 35 All manuals and user guides at all-guides.com...
  • Page 36 All manuals and user guides at all-guides.com • When Windows Logo testing, click on »Continue Anyway«. At the end click on »Finish«.
  • Page 37 All manuals and user guides at all-guides.com • When Windows Logo testing, click on »Continue Anyway«. At the end click on »Finish«. • Remember the number of COM port. You will need to connect to the right COM port by Helios Analytics.
  • Page 38 All manuals and user guides at all-guides.com HOW TO SET UP HELIOS ANALYTICS Run Helios Analytics.exe in Helios Analytics folder 1. Select proper COM port and press “Open” button. Note: you need to have USB (VCP) driver installed. Drivers are included in the archieve file.
  • Page 39 All manuals and user guides at all-guides.com 2. Now you can see “Communication Mode” and “Link number - which increases” 3. Disable Tracker control and press “OK” button. 4. Click “Setting Wizard” button and click “OK” button.
  • Page 40 All manuals and user guides at all-guides.com 5. Click “H/V aligment” button and click “OK” button. 6. Click “Configuration” button and click “SEND” button.
  • Page 41 All manuals and user guides at all-guides.com Note: If nothing happens press “Clear” button. H/V aligment: Adjust motor “A&B” to total horizontal position. Motor A Motor B Motor A...
  • Page 42 All manuals and user guides at all-guides.com 7. Enable Automatic tracking and press “OK” button. In the Mode field you will see “tracking ok”. 8. Press “Close” button.

  • Page 43: Declaration Of Conformity

    All manuals and user guides at all-guides.com Want to get more? DECLARATION OF CONFORMITY according to ISO/IEC Guide 22 and EN 45014 Company/Manufacturer’s Name: Sat Control d.o.o. Address: Poženik 10, SI-4207 Cerklje, Slovenia / EU declares under its sole responsibility, that the product Product name:...
  • Page 44 All manuals and user guides at all-guides.com Sat Control d.o.o., Poženik 10, 4207 Cerklje, SLOVENIA Phone: +386 4 281 62 00, Fax. +386 4 281 62 13, www.solar-motors.com, info@solar-motors.com...
