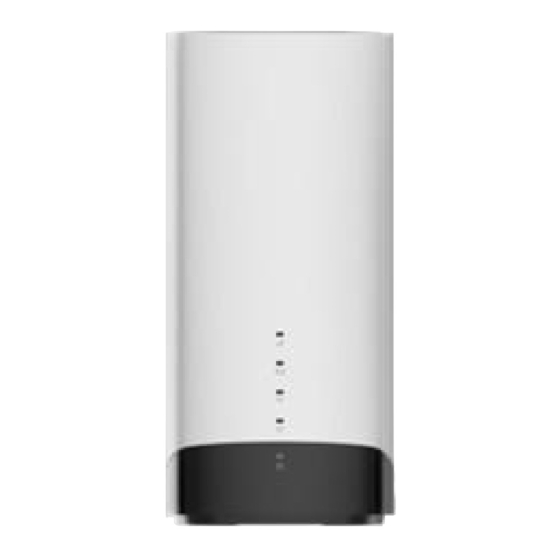

- Page 1 Sunhans Product specification SHFi5GIDUX55W 5G Indoor CPE-WiFi6 Version 1.2 Date: 2020/12/28 Sunhans Confidential...
- Page 2 Functional Press and start enabling WPS feature button Power Button Press and Release -> power On/Off 2 x 1GE RJ45 LAN Ports LAN/WAN port 1 x 1GE RJ45 WAN Port Voice Port 1 x Voice RJ11 Port (Optional) Sunhans Confidential...
- Page 3 - Mode to indicate Power status of FOTA status Card slot One 3FF (Micro) UICC/USIM card slot Reset button One reset button hole(hidden beside SIM slot) Block Diagram ￭2.2. RF functions ￭2.3. Cellular Qualcomm Snapdragon X55 5G/LTE Standard compliant: 3GPP Release 15(both LTE and Sunhans Confidential...
- Page 4 - Downlink data rate up to 42 Mbps - Uplink data rate up to 5.76 Mbps Output power class: 22 +/-1 dBm (class 3) Wi-Fi QCA6391 Standard compliant: IEEE 802.11 a/b/g/n/ac/ax 2.4 GHz (2x2 MIMO) +5.8G band (2x2 MIMO) AX1800 Environment ￭2.4. Sunhans Confidential...
- Page 5 Self-Check - Self-examination when it can’t connect to the network Port Settings - Port forwarding, including single port, multiple ports or a range of ports Security - SIM Lock and Secure boot features. Firewall - DMZ/MAC Filter/IP Filter/URL Sunhans Confidential...
- Page 6 Band Steering Hidden SSID Security Modes : WPA/WPA2 PSK, & WPA/WPA2 mixed mode Access Control : STA blacklist/white list WPS : Pin and PBC, WPS2.0 ￭4. Mechanical & ID designs Dimension ￭4.1. Casing Dimension (WxDxH): 95*100*205mm ID design ￭4.2. Sunhans Confidential...
- Page 7 Quick start guide Safety warning Safety warning Warranty card Warranty card Declaration of Conformity Packing ￭5.2. Box label Inner paper Inner box Color box Carton label (carton label + battery warning label) Carton Carton Pallet label Pallet Pallet Sunhans Confidential...
