This manual is the translation of the original, written in Italian language
MGF
srl –– Via Chico Mendes, 8 – 43058 Sorbolo Mezzani (PR) Italy – Tel. +39 0521-818301 Fax: +39 0521-818202
MGF
e-mail: info@mgftools.com –
Art. 930456 - 930457
930487- 930488

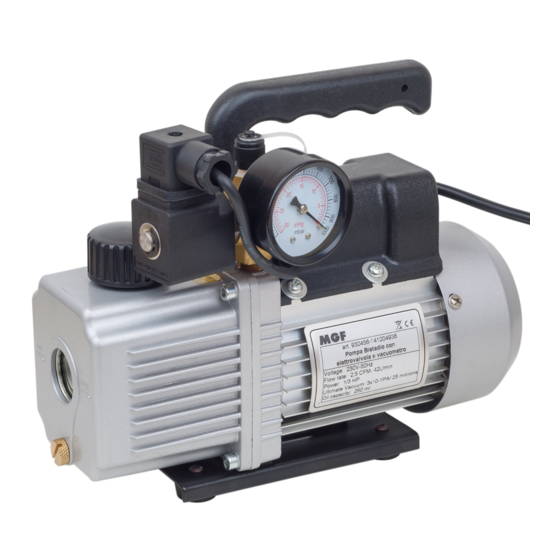

Dual Stage Vacuum
Pump
User Manual
Rev. 2 dated 07/03/2022
1
www.mgftools.com
–
www.nebulife.it
–
www.nebulizzare.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MGF 930456
Summary of Contents for MGF 930456

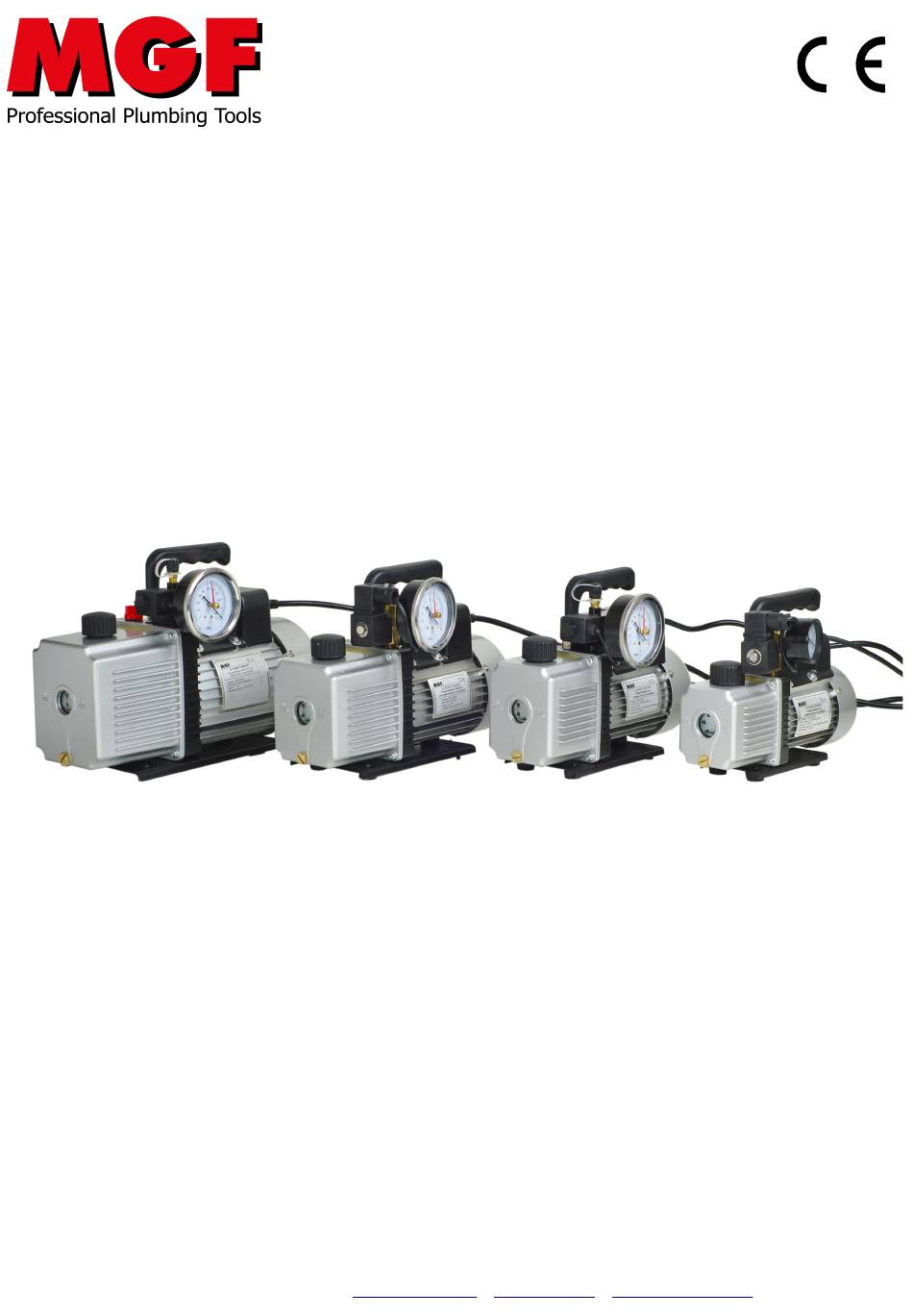

- Page 1 Art. 930456 - 930457 930487- 930488 Dual Stage Vacuum Pump User Manual Rev. 2 dated 07/03/2022 This manual is the translation of the original, written in Italian language srl –– Via Chico Mendes, 8 – 43058 Sorbolo Mezzani (PR) Italy – Tel. +39 0521-818301 Fax: +39 0521-818202 e-mail: info@mgftools.com –...
-
Page 2: General Informations
These good standards will be the guarantee to obtain excellent performance and reliability from the instrument over time. IMPORTANT: use MGF pump oil; the use of different lubricants could reduce the performance of the pump or damage it, even irreversibly. -
Page 3: Safety Instructions
In case of scrapping, collect the homogeneous parts of the machine, accessories and packaging and dispose of them in accordance with current legislation. Product Specifications Product Specifications Free air displecement 42 L/min 85L/min 170L/min 283L/min Art. 930456 930457 930488 930487 Pumping stages Solenoid valve Vacuum gauge Final Vacuum 200 mTorr 200 mTorr... -
Page 4: Function Instructions
4. Ventilation The MGF vacuum pump has been designed to work in optimal temperature conditions (40-50 °), thanks to the forced ventilation and the efficiency of the exchange surfaces. Although it is equipped with a thermal protection device, it is good to make sure that there are no obstacles to the air flow generated by the fan. -
Page 5: Maintenance
The use of high vacuum pump oil is recommended. This oil has been specially blended to maintain maximum viscosity Mineral Oil for vacuum pumps Art. 790100 . at normal operating temperatures and to improve starts at low temperatures. Uses 0,5L MGF Maintenance Maintenance Periodically check the condition of the pump and the electrical components (cable and electrical box). -
Page 6: Spare Parts
Spare Parts Spare Parts SERVICE For any form of technical assistance you can contact us in one of the following ways: telephone: +39 0521 818301 fax: +39 0521 818202 email: assistenza@mgftools.com N° Descripton N° Descripton Fan cover Inlet fitting Cross screw Trestle Screw Motor cover... -
Page 7: Common Problems
Motor rotor Die cast alumiun housing Power supply cords Sight glass Power switch Oil drain cap Centrifugal switch Screw Motor stator Seal Capacitor Screw Handle Rubber foot Inlet fitting Base Common problems Common problems Your pump has been for dependable use and long life. If something should go wrong, the following guide will help you get the pump back into service as quickly as possible. -
Page 8: Conformity Declaration
- Via Chico Mendes, 8 - 43058 Sorbolo Mezzani (PR) - Italy declares under its own responsibility that the Dual Stage Vacuum Pump art. 930456, 930457, 930487 and 930488 are comply with the requirements of directive 2006/42/EC; with regard to electromagnetic compatibility, to directive 2004/108/EC;...
