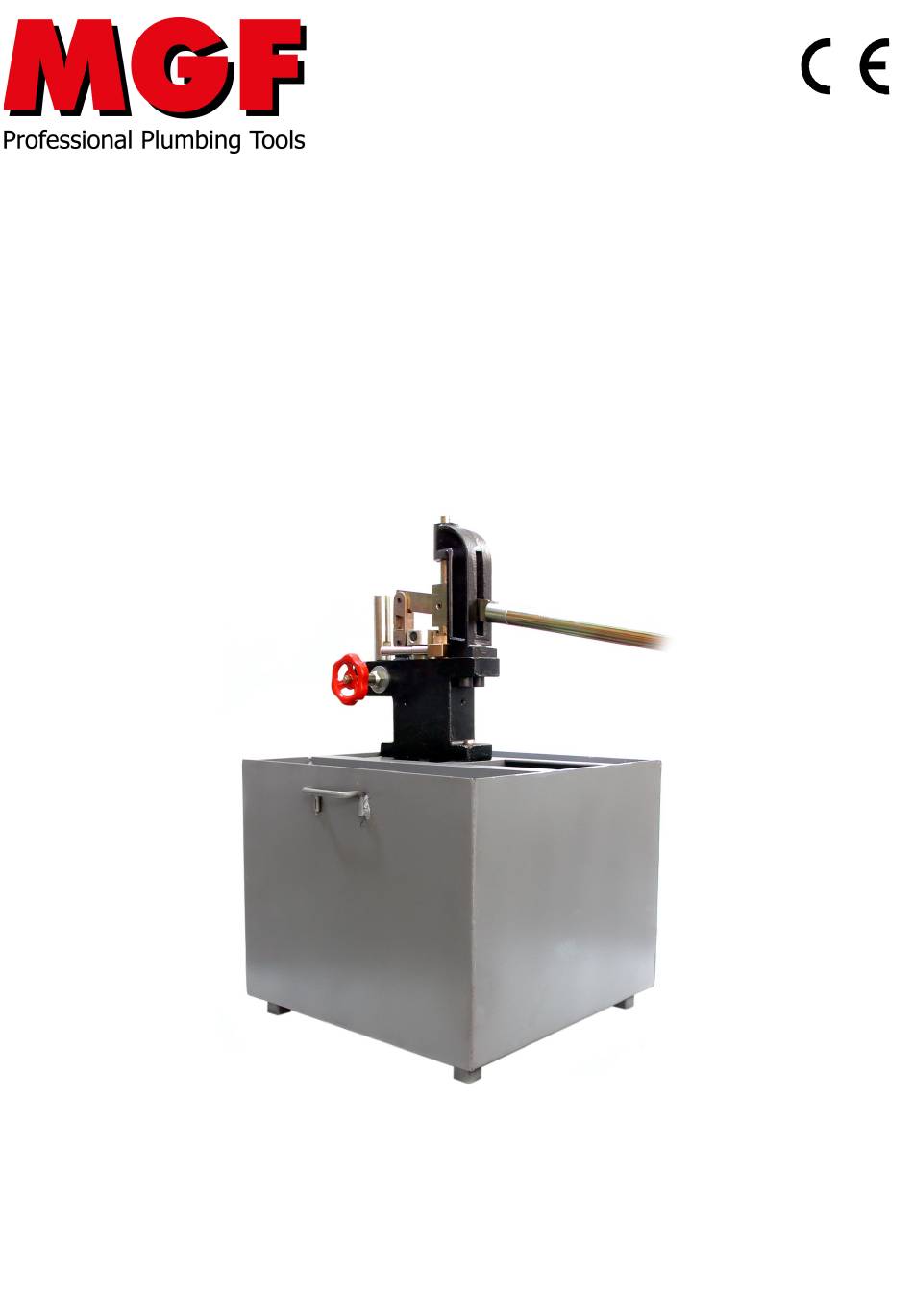

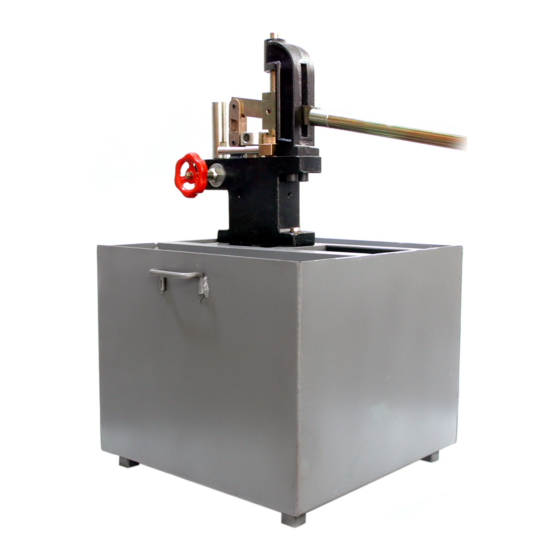

- Page 1 Art. 904XXX High Pressure Test Pump User Manual rev. 1.0 del 12/02/2014 The present manual has been realised, where possible, in accordance with Rule 98/37/CE "Direttiva Macchine", 2006/42/CE "Nuova Direttiva Macchine" UNI Rule 10893 "User instruction - “order of contents”.
- Page 2 Machines or parts modified or changed – MGF is not responsible besides for damages caused by: system stop (lost of productivity, plant stops...), misting of dangerous liquids or polluted water, vandalisms. The warranty doesn't cover substitution damages, since MGF is not the installation maker.
- Page 4 Assembly and Operating Instructions Assembly and Operating Instructions High pressure test pumps are easy to use and can be used by anyone without undue fatigue. Pumps should be assembled as follows, using PTFE tape on all threads to ensure air tight connections. 1.
- Page 5 CONNECTION TO THE APPLIANCE TO BE TESTED After screwing the delivery hose to the pump, connect the same to the appliance to test (pipe, tank, valve, etc..), paying attention to the "hydraulic seal". FILL UP THE APPLIANCE TO BE TESTED Whatever is the appliance to test, it has to be filled up in advance with the same liquid that will be used for the test.
- Page 6 Maintenance Maintenance Periodically lubricate the piston, clean the suction filter and valves. Periodically check the pipe. Use original parts and accessories and make do the repair by qualified personnel. If you decide not to use the machine, it is recommended to keep it in any case out of the reach of children. In case of scrapping, disassemble the machine and collect the homogeneous parts for disposal in accordance with local regulations.
- Page 7 Spare Parts Spare Parts Pos. Description Pos. Description Body pump Seal cap Seat upper shutter Joint Higher shutter Seat lower shutter Support Lower shutter Large packing gasket Suction tube Seal for large piston Stainless steel filter Large piston Bolt Small packing gasket Tank Seal for small piston Faucet...
- Page 8 Declaration of Conformity Declaration of Conformity MGF srl - Via Mendes, 8 - 43055 Mezzani (PR) - Italy declares that pressure testers art. 904700, 904800, 904900 are complying directive 2006/42/CEE. srl –– Via Chico Mendes, 8 – 43055 Mezzani PR – tel. 0521-818301 Fax: 0521-818202 e-mail:info@mgftools.com...
