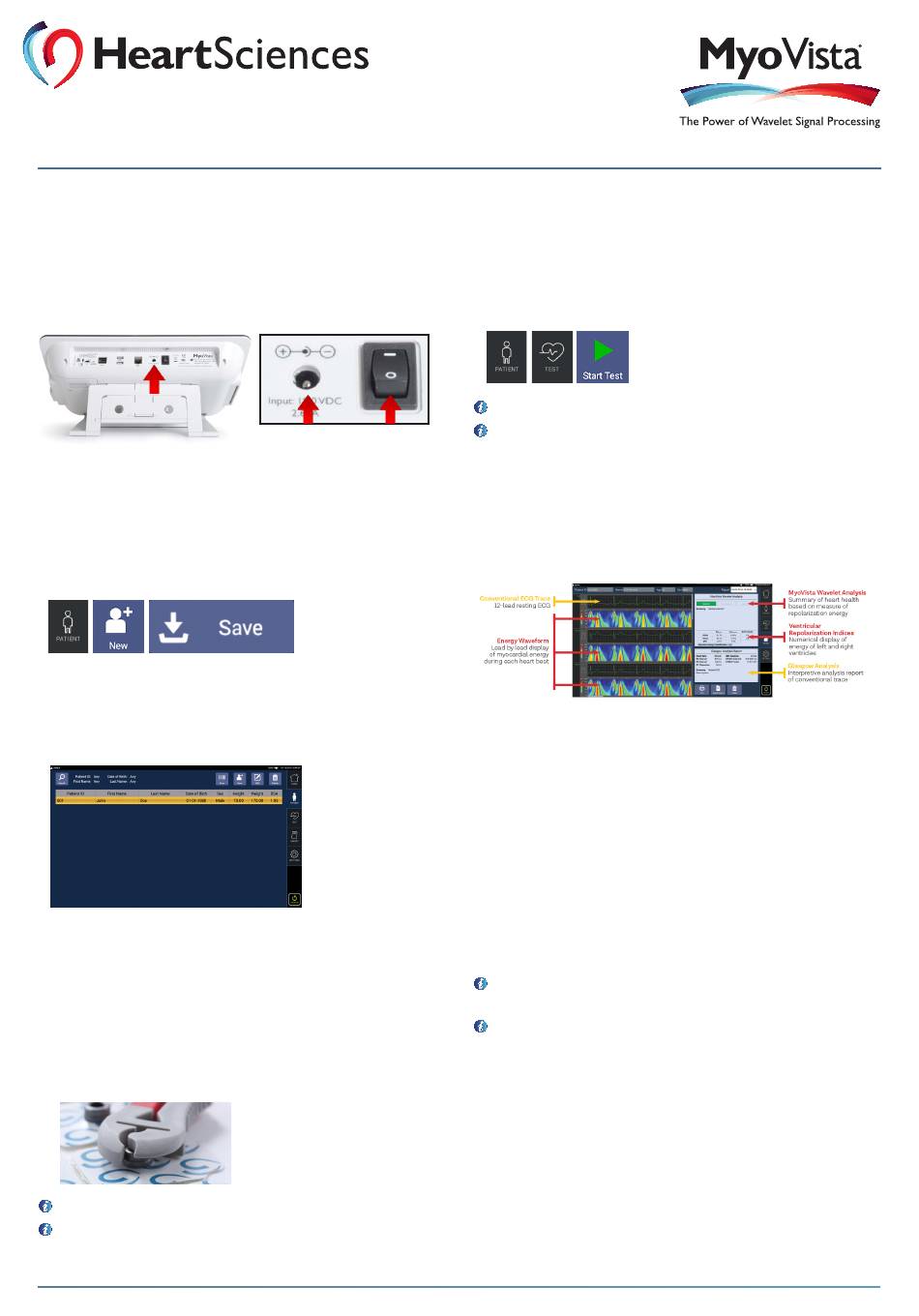

HeartSciences MyoVista Quick Reference User Manual

Quick Reference User Guide

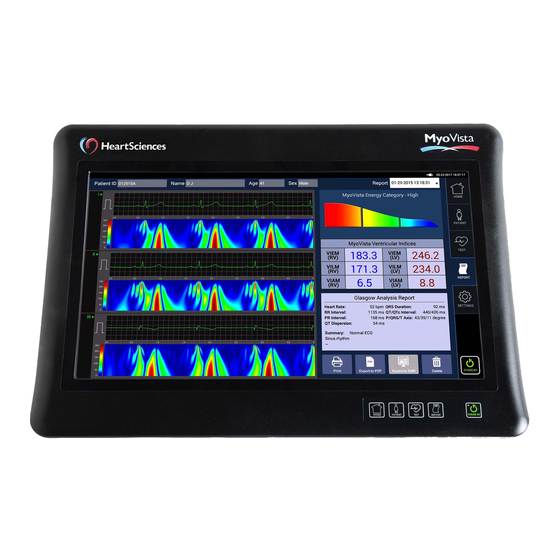

STEP 1: Activate MyoVista
(wavECG ) Device
™
–––––––––––––––––––––––––––––––––––––––––––––––
• Connect power adapter to device receptacle
• Plug power cord into grounded AC outlet
• Toggle power switch to activate
STEP 2: Patient Profile
–––––––––––––––––––––––––––––––––––––––––––––––
New Patient
• Select Patient icon
• Select New Patient icon and enter info
• Select Save
Existing Patient
• Select Patient icon
• Scroll to search records
• Select Patient profile (select desired row)
STEP 3: Electrode Placement
–––––––––––––––––––––––––––––––––––––––––––––––
• Prep Patient: skin surface must be clean and dry
• Apply MyoVista Center Post Electrodes per standard AHA
or IEC protocol
• Attach MyoVista Patient Cable: Squeeze grabber and
connect to electrode center post
• Release grabber and confirm secure connection
Refer to MyoVista User Manual for detailed instructions
MyoVista wavECG Device is compatible only with
MyoVista Electrodes
Wavelet ECG
®
Not FDA cleared. Not available in the United States.
STEP 4: Run MyoVista Test
–––––––––––––––––––––––––––––––––––––––––––––––
• Select Patient profile
• Select Test icon
• Verify leads are producing stable ECG trace signals
• Select Start Test icon
Waveforms may take 10 to 20 sec to stabilize
Countdown timer will appear bottom-center screen
STEP 5: Review MyoVista Report
–––––––––––––––––––––––––––––––––––––––––––––––
• Select Patient profile
• Select Report icon to view existing reports, or run a test
for automatic redirection to this screen
A. Drop-Down Menu: Select to find and view previous reports.
B. MyoVista wavECG Information: View MyoVista Energy
Waveform, MyoVista Summary Statement and Indicators,
MyoVista Ventricular Indices, Conventional ECG Trace &
Glasgow Interpretive Analysis.
C. Report Functions: Print icon allows user to print report to
a physical printer. Export Report icon allows user to export
report in PDF/XML/HL7 formats to USB device or mapped
network drive.
D. Interactive Leads Display: Scroll vertically to view data
from additional leads. Scroll horizontally to view data
from other time segments. Select lead name to modify
the order in which leads are displayed.
If report has any warnings indicated in red text, attempt to
resolve, then rerun test.
See User Manual for additional report function instructions
STEP 6: Export MyoVista Report to Storage Device
–––––––––––––––––––––––––––––––––––––––––––––––
• Select Export Report icon
• From Disk dropdown menu: select desired storage device
(USB or mapped drive).
• Accept or Input File Name from Keyboard
• Select desired template
• Select one or more output formats (PDF/XML/HL7).
• Select Export | Confirm Export was successful
