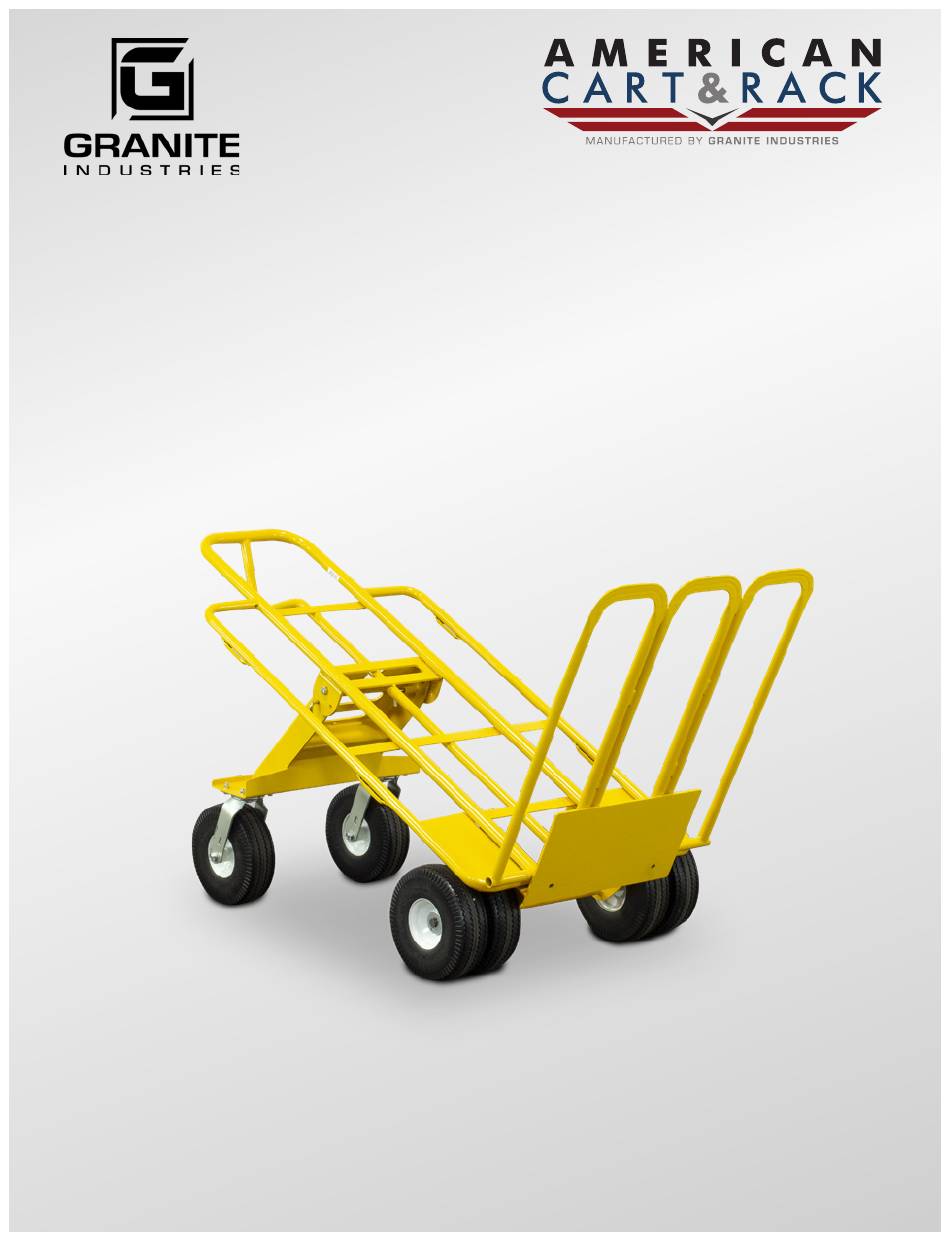

- Page 1 MULTI MOVER XT FOLD DOWN REAR WHEELS WITH INSTRUCTION MANUAL 67245-75 Revised: JULY 2017...
- Page 2 CONTENTS WARRANTY Specs ..............3 3 Year Limited Warranty. Carts, excluding any Parts Diagram ............4 finishes, casters and wheels are warranted for three Assembly ..............5 (3) years from date of original purchase. Casters and wheels are warranted for 90 days from date of original purchase.
- Page 3 SPECS Overall Dimensions: 30” 70” 38” Foot Plate: 27” 31” Weight: 134 lbs. Capacity: 1200 lbs. *Measurements taken on 4 wheels with folding foot plate open...
- Page 4 PARTS DIAGRAM ITEM NO PART NO DESCRIPTION MI-12-5142 MULTI MOVER XT BODY PI-06-0055 CASTER MOUNT PI-06-0115 10” WHEEL W/ STEEL OFFSET HUB PI-01-0226 1-1/4” COTTER PIN PI-01-0043 1/2” HEX BOLT (1-1/4” L) USE 3/4” WRENCH/SOCKET PI-01-0121 1/2” NUT USE 3/4” WRENCH/SOCKET PI-01-0177 5/16"HEX BOLT (1”...
- Page 5 STEP 1: FRONT WHEEL ASSEMBLY COMPONENTS ITEM NO DESCRIPTION Multi Mover XT Cart Body 10” Wheel w/ Steel Offset Hub 1-1/4” Cotter Pin 3/4” Washer TOOLS Needle Nose Pliers Note: All steps are done with the cart facing down as shows in the photo to the right.
- Page 6 STEP 2: REAR WHEEL ASSEMBLY COMPONENTS ITEM NO DESCRIPTION 1/2” Hex Bolt 1/2” Nut (1” L) 3” Hinge Pin Rear Wheel Assembly TOOLS 3/4” Wrench 3/4” Socket TOP OF CART BOTTOM OF CART Place the rear wheel assembly over the frame toward the top of the cart.
- Page 7 STEP 3: INSTALL CASTER MOUNTS COMPONENTS ITEM NO DESCRIPTION Caster Mount 5/16” Hex Bolt (1”L) 5/16” Washer 5/16” Nut TOOLS 1/2” Wrench 1/2” Socket Slide another 5/16” washer onto the Align the caster mount onto the holes. bolt,followed by the lock nut. Tighten each Place a 5/16”...
- Page 8 STEP 4: INSTALL REAR WHEELS COMPONENTS ITEM NO DESCRIPTION 10” Wheels with steel center hub TOOLS 3/4” Wrench 3/4” Socket Insert the bushing through one of the wheel Remove the bolt and bushing from the caster hubs, then position the caster wheel into the mount using a 3/4”...
