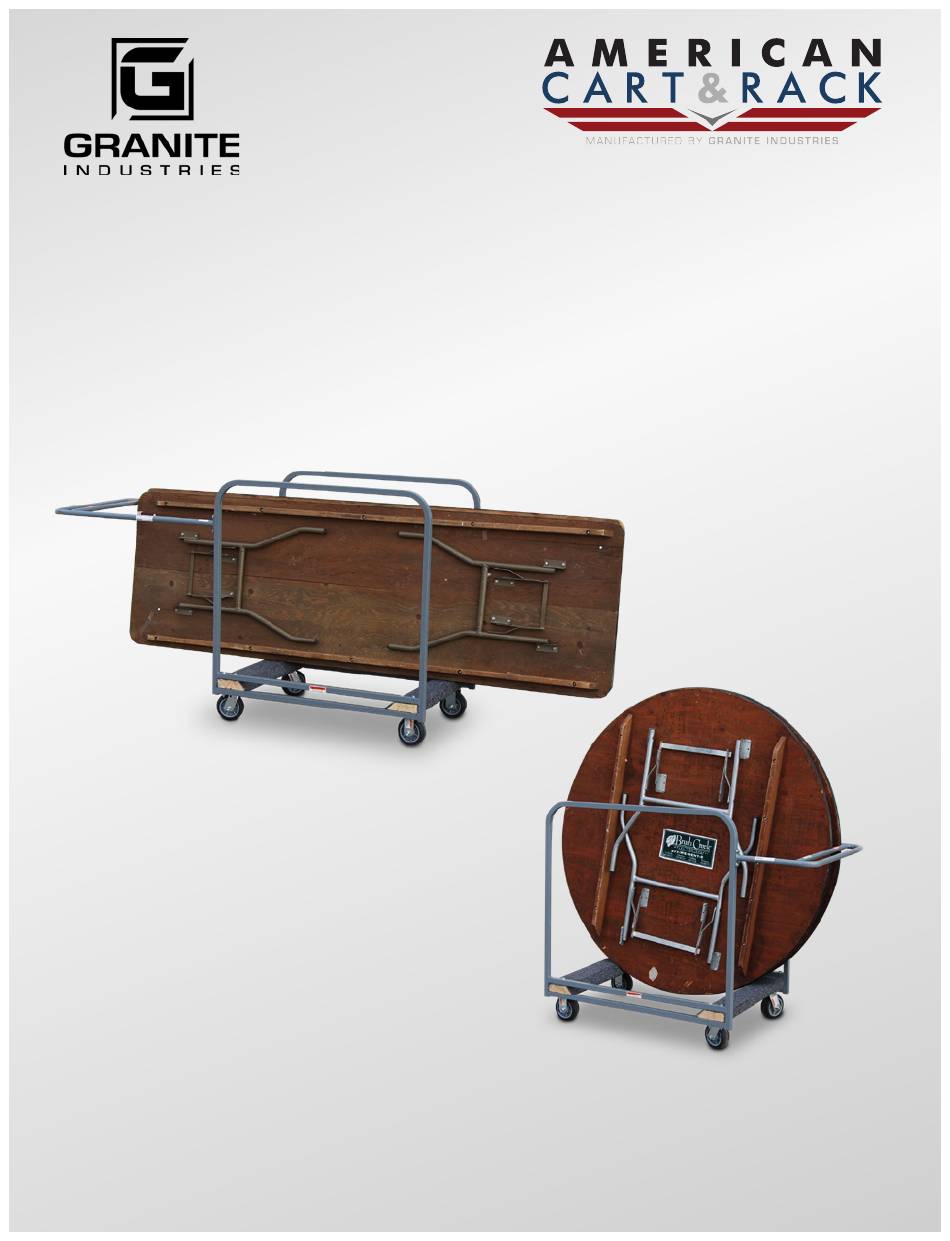

- Page 1 ROUND & RECTANGLE TABLE STORAGE CARTS INSTRUCTION MANUAL 67120 & 67121 Revised: JULY 2018...
- Page 2 CONTENTS WARRANTY Specs ..............3 3 Year Limited Warranty. Carts, excluding any Parts Diagram ............4 finishes, casters and wheels are warranted for three Assembly ..............5 (3) years from date of original purchase. Casters and wheels are warranted for 90 days from date of original purchase.
- Page 3 SPECS Round Table Cart Item No. 67120 Rectangle Table Cart Item No. 67121 Dimensions: W: 26” D: 55” H: 43” Dimensions: W: 26” D: 75” H: 43” Weight: 60 lbs. Capacity: 350 lbs. Weight: 64 lbs. Capacity: 350 lbs.
- Page 4 PARTS DIAGRAM ITEM NO PART NO DESCRIPTION MI-10-0299 Carpeted Wood MI-12-2428 Cart Body - Side MI-12-2429 Cart Handle - Round Table Cart MI-12-2430 Cart Handle - Rectangle Table Cart MI-12-3468 Bottom Frame PI-01-0017 5/16” Nylon Locknut PI-01-0031 5/16” Washer PI-01-0091 5/16”...
- Page 5 STEP 1: FRAME ASSEMBLY COMPONENTS ITEM NO DESCRIPTION Cart Body - Side Bottom Frame 5/16” Washer 5/16” Hex Bolt - 1”L 5/16” Lock Washer TOOLS 1/2” Socket or wrench Take note of the frame pieces. One side of each frame will have holes for the handle. Align the bottom frame piece to a These need to be on the same side when side frame piece.
- Page 6 STEP 2: HANDLE ASSEMBLY COMPONENTS ITEM NO DESCRIPTION Cart Handle 5/16” Washer 5/16” Hex Bolt - 1”L 5/16” Lock Washer TOOLS 1/2” Socket or wrench Align the handle over the holes. Slide a lock Attach using a 1” L 5/16” bolt with a lock washer and a washer onto the bolt and insert washer and standard washer.
- Page 7 STEP 3: CARPET BOARD INSTALLATION COMPONENTS ITEM NO DESCRIPTION Carpeted Wood 5/16” Nylon Locknut 5/16” Washer 5/16” Bolt - 4”L TOOLS 1/2” Socket or wrench Flip the cart upside down. Slide the carpet covered boards into the provided slots on Slide a washer onto the 4”L 5/16”...
- Page 8 STEP 4: CASTER ASSEMBLY COMPONENTS ITEM NO DESCRIPTION 5” Swivel Caster 5” Rigid Caster 5/16” Washer 5/16” Hex Bolt - 1”L 5/16” Lock Washer TOOLS 1/2” Socket or wrench Align the caster over the provided holes. The swivel casters will go on the end with Secure with a 1”L 5/16”...
