Cooper & Hunter CR262-RG10G Owner's Manual

Cooper & Hunter CR262-RG10G Owner's Manual

Remote controller
Hide thumbs

Advertisement

Quick Links

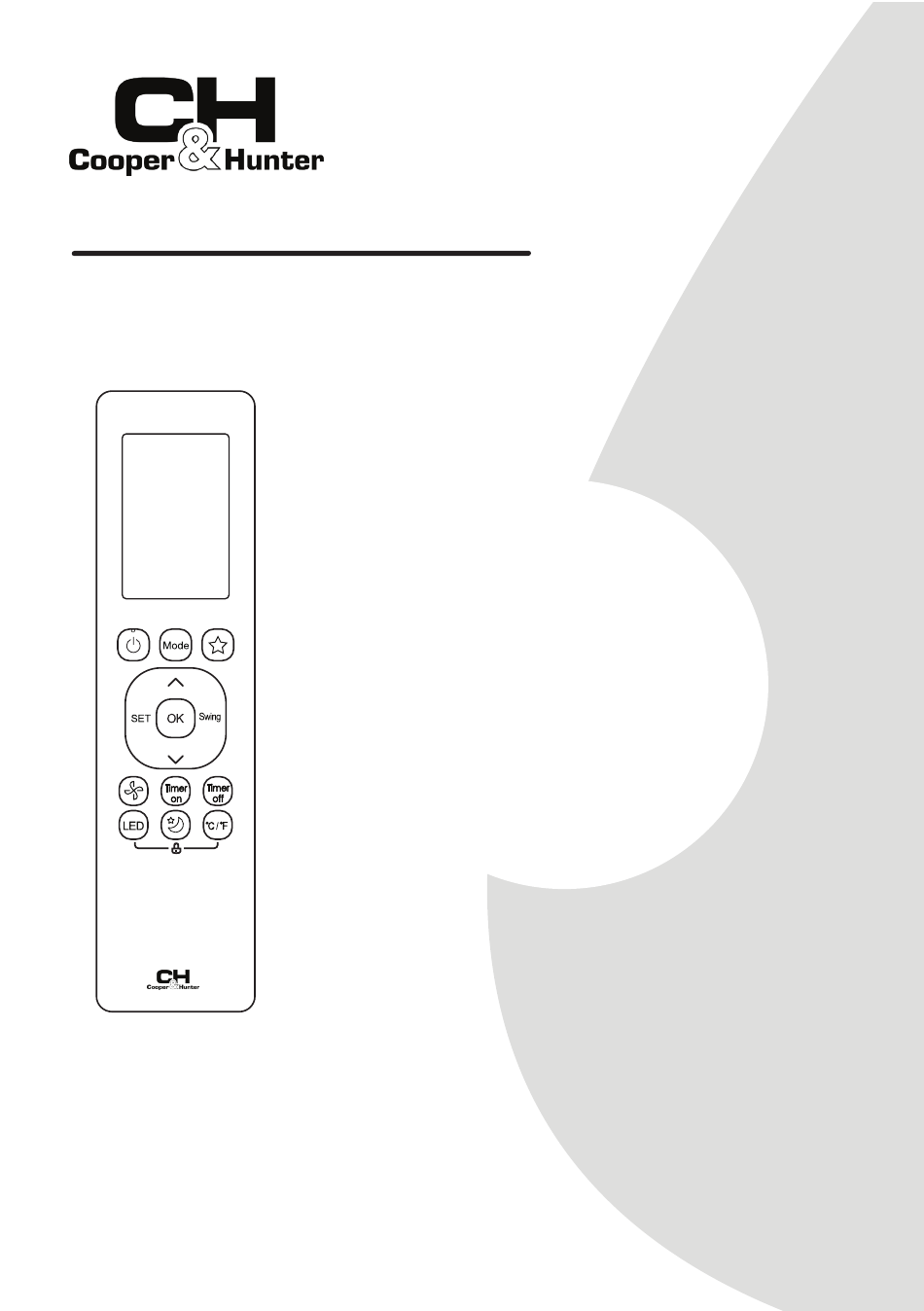

REMOTE CONTROLLER
OWNER'S MANUAL
IMPORTANT NOTE:
Thank you for purchasing our air conditioner.
Please read this manual carefully before
operating your new air conditioning unit.
Make sure to save this manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CR262-RG10G and is the answer not in the manual?

Questions and answers

Related Manuals for Cooper & Hunter CR262-RG10G

Summary of Contents for Cooper & Hunter CR262-RG10G

  • Page 1 REMOTE CONTROLLER OWNER’S MANUAL IMPORTANT NOTE: Thank you for purchasing our air conditioner. Please read this manual carefully before operating your new air conditioning unit. Make sure to save this manual for future reference.

  • Page 2: Table Of Contents

    Table of Contents Remote Controller Specifications ............02 Handling the Remote Controller ............03 Buttons and Functions ..............04 Remote Screen Indicators ..............08 How to Use Basic Functions ............09 How to Use Advanced Functions ..........12...

  • Page 3: Remote Controller Specifications

    Remote Controller Specifications 3.0V( Dry batteries R03/LR03×2) Rated Voltage 3.28 ft / 8m Signal Receiving Range 23°F~140°F(-5°C~60°C) Environment Quick Start Guide AUTO COOL HEAT FIT BATTERIES SELECT MODE SELECT TEMPERATURE SELECT FAN SPEED POINT REMOTE TOWARD UNIT PRESS POWER BUTTON NOT SURE WHAT A FUNCTION DOES? Refer to the How to Use Basic Functions and How to Use Advanced Functions sections of this manual for a detailed description of how to use your air conditioner.

  • Page 4: Handling The Remote Controller

    Handling the Remote Controller Inserting and Replacing Batteries NOTES FOR USING REMOTE CONTROL Your air conditioning unit may come with two The device could comply with the local national batteries(some units). Put the batteries in the regulations. remote control before use. In Canada, it should comply with •...

  • Page 5: Buttons And Functions

    Buttons and Funcitons Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual.
  • Page 6 MODE ON/OFF Scrolls through operation modes Turns the unit on or off. as follows: AUTO  COOL  TEMP DRY  HEAT  FAN Increases temperate in NOTE: Please do not select 1°F (1°C) increments. HEAT mode if the machine you Max.
  • Page 7 ON/OFF MODE Scrolls through operation modes Turns the unit on or off. as follows: AUTO  COOL  TEMP DRY  HEAT  FAN Increases temperate in 1°C increments. NOTE: Please do not select Max. temperature is HEAT mode if the machine you 30°C.
  • Page 8 ON/OFF MODE Turns the unit on or off. Scrolls through operation modes as follows: AUTO  COOL  TEMP DRY  HEAT  FAN Increases temperate in NOTE: Please do not select 1°F (1°C) increments. HEAT mode if the machine you Max.

  • Page 9: Remote Screen Indicators

    Remote Screen Indicators Information are displayed when the remote controller is power up. Fresh feature display Sleep mode display I Sence feature display Wireless control feature display Low battery detection display Transmission Indicator (If flashes) Lights up when remote sends signal to indoor MODE display unit Displays the current...

  • Page 10: How To Use Basic Functions

    How to Use Basic Functions Basic operation COOL Mode ATTENTION! Before operation, please ensure the unit is plugged in and power is available. SETTING TEMPERATURE The operating temperature range for units is 60-86°F (16-30°C). You can increase or decrease the set temperature in 1°F (1°C) increments.
  • Page 11 HEAT Mode DRY Mode (dehumidifying) 1. Press the MODE button to select DRY. 1. Press the MODE button to select HEAT 2. Set your desired temperature using the TEMP mode. or TEMP button. Set your desired temperature using the 3. Press the ON/OFF button to start the unit. TEMP or TEMP button.
  • Page 12 Setting the TIMER TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off. TIMER ON setting Press TIMER ON button to Press up or down button for Point remote to unit and wait initiate the ON time sequence. multiple times to set the desired 1sec, the TIMER ON will be time to turn on the unit.

  • Page 13: How To Use Advanced Functions

    How to Use Advanced Functions Swing function SHORTCUT function (some models) Press Swing button Press SHORTCUT button The horizontal louver will swing up and down automatically when pressing Swing button. Push this button when remote controller is on, Press again to make it stop. the system will automatically revert back to the previous settings including operating ENERGY SAVER function(some models)
  • Page 14 LED DISPLAY LOCK function Press LED button iSense Press this button to turn on and turn off the Press together button and button °C/°F display on the indoor unit. button on some models) at the same time iSense more than 5 seconds to activate Lock function. All buttons will not response except pressing SLEEP Function these two buttons for two seconds again to...
  • Page 15 SET function Press the SET button to enter the function setting, then press SET button or TEMP or TEMP button to select the desired function. The selected symbol will flash on the display area, press the OK button to confirm. To cancel the selected function, just perform the same procedures as above.
