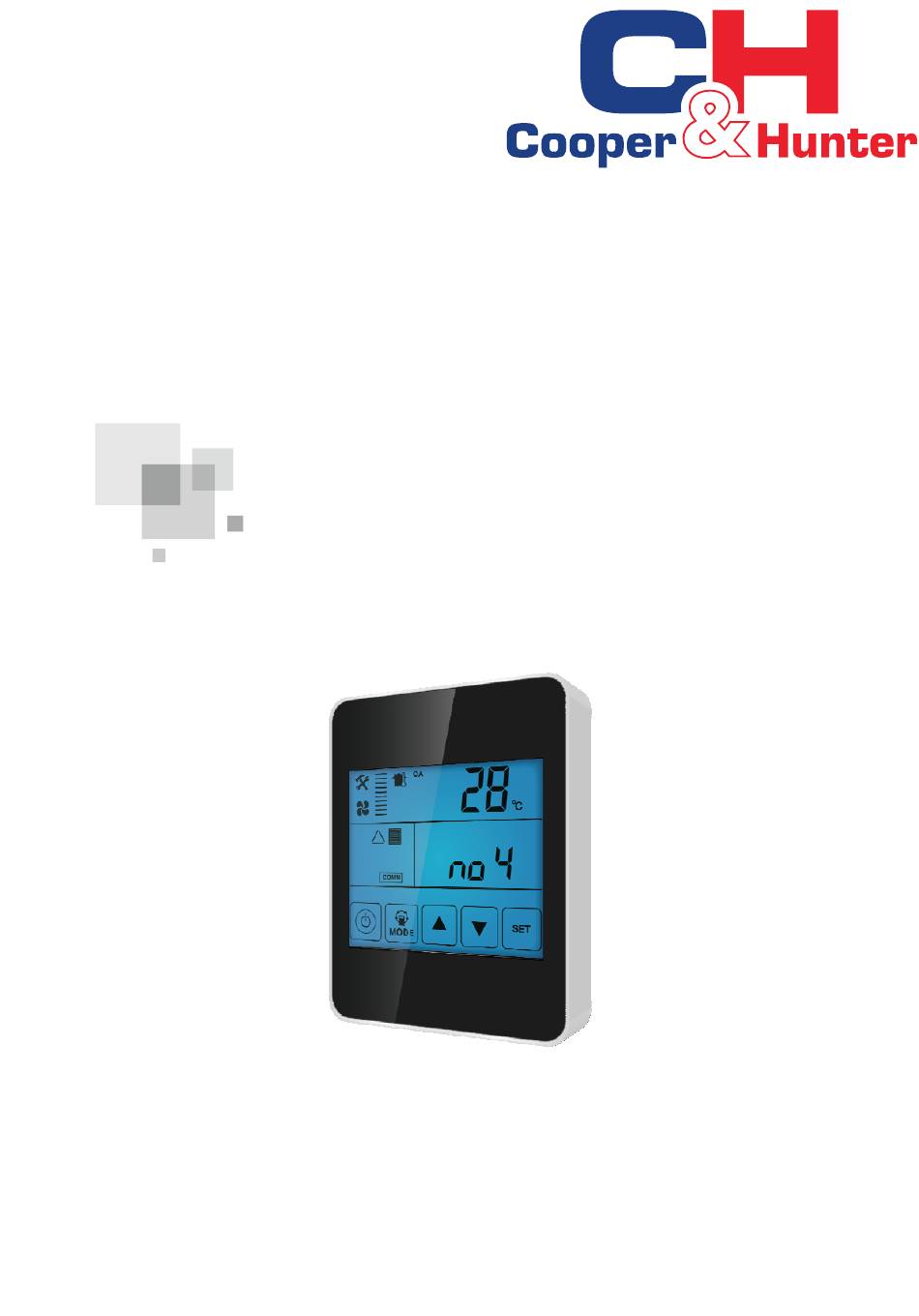

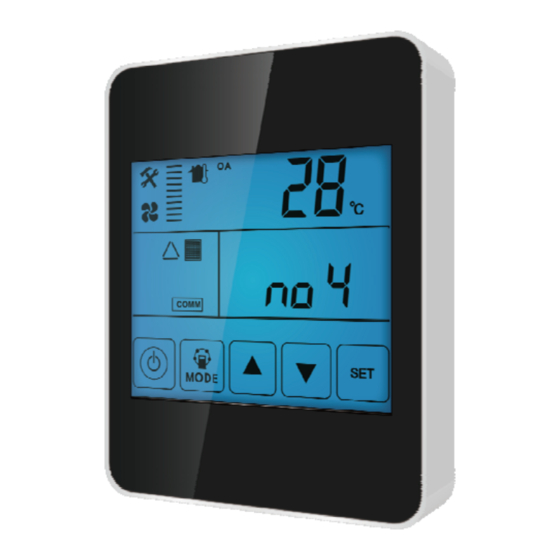

- Page 1 F O R ENE RG Y R ECOVERY V EN TIL ATIO N SYST EM Model LH-13001 Thank you for choosing Cooper&Hunter energy recovery ventilation system, please read this service manual carefully before operation and retain it for future reference.
- Page 2 Controller Dimension Main Functions All units on/off control All units timer on/off control Single unit on/off control Single unit fan speed control Single unit temperature setting (only available on some of latest PCB) Single unit error display All the other functions remain the same as the original ventilator tech. manual Ventilator Setting 1) Cut off the ventilator power, refer to the ventilator user manual, all units switched the SW4-4 to the same Baud rate, like the below figure A.
- Page 3 Color W B R Color Multiple Controller LH-13001 Note: 1) The multiple controller adjusts the baud rate automatically according to the master PCB, so, please ensure all the slaved units in the same net with same baud rate of the master unit, different baud rate units can not be recognized by the multiple controller.
- Page 4 All Units on/off Press the on/off button over 6 seconds until hear buzzing of the controller, to enter all ventilators on/off setting, press again shortly, to switch turn on or turn off all the ventilators, press button to confirm setting. Setting confirmed All units off All units on...
- Page 5 Single Ventilator Setting By press the Set button to switch to the very ventilator, in the middle of the control- ler it displays no. 1 to no. 16, at this time, can press the mode button shortly to switch to OA/RA/EA mode and set the fan speed by UP and DOWN button, after setting for 2 to 3 seconds, control system will automatically confirm the setting.
