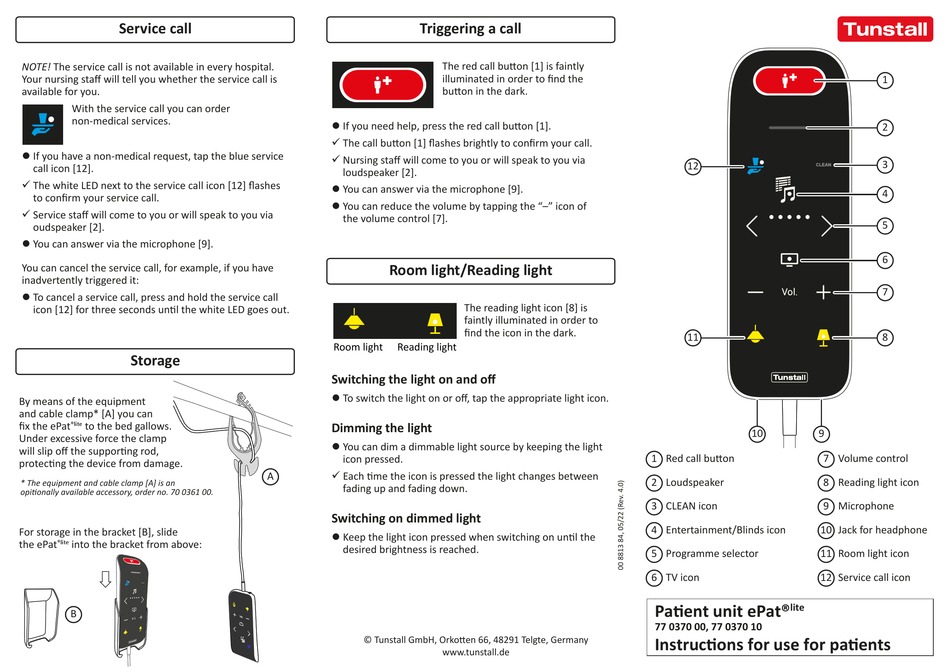

Tunstall Patient unit ePat Lite Instructions For Use For Patients

Service call
NOTE! The service call is not available in every hospital.
Your nursing staff will tell you whether the service call is
available for you.
With the service call you can order
non-medical services.
 If you have a non-medical request, tap the blue service
call icon [12].
 The white LED next to the service call icon [12] flashes
to confirm your service call.
 Service staff will come to you or will speak to you via
oudspeaker [2].
 You can answer via the microphone [9].
You can cancel the service call, for example, if you have
inadvertently triggered it:
 To cancel a service call, press and hold the service call
icon [12] for three seconds un�l the white LED goes out.

Storage

By means of the equipment
and cable clamp* [A] you can
fix the ePat to the bed gallows.
®lite
Under excessive force the clamp
will slip off the suppor�ng rod,
protec�ng the device from damage.
* The equipment and cable clamp [A] is an
opitionally available accessory, order no. 70 0361 00.
For storage in the bracket [B], slide
the ePat into the bracket from above:
®lite
B

Triggering a call

The red call bu�on [1] is faintly
illuminated in order to find the
bu�on in the dark.
 If you need help, press the red call bu�on [1].
 The call bu�on [1] flashes brightly to confirm your call.
 Nursing staff will come to you or will speak to you via
loudspeaker [2].
 You can answer via the microphone [9].
 You can reduce the volume by tapping the "–" icon of
the volume control [7].

Room light/Reading light

Room light Reading light
Switching the light on and off
 To switch the light on or off, tap the appropriate light icon.
Dimming the light
 You can dim a dimmable light source by keeping the light
icon pressed.
A  Each �me the icon is pressed the light changes between
fading up and fading down.
Switching on dimmed light
 Keep the light icon pressed when switching on un�l the
desired brightness is reached.
© Tunstall GmbH, Orko�en 66, 48291 Telgte, Germany
www.tunstall.de
The reading light icon [8] is
faintly illuminated in order to
find the icon in the dark.
12
11
10 9

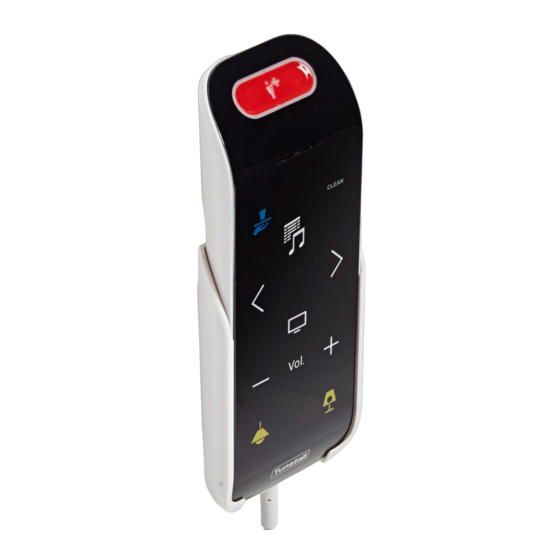

1 Red call bu�on 7 Volume control
2 Loudspeaker 8 Reading light icon
3 CLEAN icon 9 Microphone
4 Entertainment/Blinds icon 10 Jack for headphone
5 Programme selector 11 Room light icon
6 TV icon 12 Service call icon
Pa�ent unit ePat®
lite
77 0370 00, 77 0370 10
Instruc�ons for use for pa�ents
1
2
3
4
5
6
7
8
